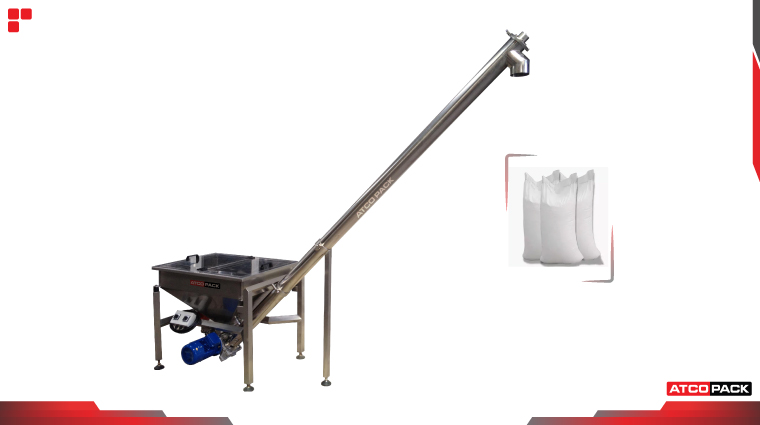

Screw Feeder
A Screw Feeder is a mechanical conveying unit used to transfer powders and small granular materials between processing stages in factory and warehouse environments. It supports controlled material feeding into filling machines, mixers, or storage hoppers where steady flow is required. Typical systems operate with charging capacities ranging from 2 to 8 cubic meters per hour and standard inclination angles around 45 degrees. Across the UAE and wider GCC, screw feeders are widely used in food processing, chemical handling, and packaging operations.
In UAE industrial operations, screw feeders are commonly integrated into powder filling and packaging lines, especially in facilities located in Dubai and Sharjah. They are frequently paired with auger fillers, mixers, or automatic packing machines to maintain uniform material supply. Standard charging heights around 1.85 meters suit most production layouts, while custom designs allow extended reach up to 5 meters where required.
The fully stainless steel construction, with SS304 contact parts, supports hygienic handling in food and pharmaceutical environments. Adjustable charging angles between 30 and 60 degrees allow adaptation to different floor layouts. With moderate machine weight and stable frame design, the feeder operates reliably during continuous shifts in UAE warehouses and production floors.
Technical Specifications
| Product Code | ASFT-2A2 | ASFT-2A3 | ASFT-2A5 | ASFT-2A7 | ASFT-2A8 |
| Charging Capacity | 2m3/h | 3m3/h | 5m3/h | 7m3/h | 8m3/h |
| Diameter of pipe | Φ102 | Φ114 | Φ141 | Φ159 | Φ168 |
| Total Power | 0.58KW | 0.78W | 1.53KW | 1.53KW | 3.03KW |
| Total Weight | 100kg | 130kg | 170kg | 200kg | 220kg |
| Hopper Volume | 100L | 200L | 200L | 200L | 200L |
Key Features
- Helical screw conveying system for powders and fine granules
- Charging capacities available from 2 to 8 m³ per hour
- Standard charging angle of 45 degrees with adjustable options
- Configurable charging height from 1 to 5 meters
- SS304 stainless steel contact parts for hygienic handling
- Square or round hopper configurations available
- Compatible with auger fillers and packing machines
- Stable operation for continuous production environments
Screw Feeder
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, screw feeders are widely used in factories, warehouses, and packaging units to transfer powders between storage hoppers and filling machines. Facilities in Dubai and Sharjah often use them in food processing, chemical blending, and packaging lines where controlled, dust-contained material movement is required.
The enclosed screw design maintains stable conveying even when powder density changes due to humidity. UAE operators rely on consistent screw rotation and controlled feed angles to reduce flow interruptions, especially in GCC environments where ambient conditions can affect powder behavior.
Most UAE warehouses operate screw feeders within moderate capacity ranges to match downstream equipment. Selection depends on material type, pipe diameter, and required feed rate rather than maximum output, ensuring smooth integration with packing or mixing processes.
Screw feeders are typically positioned upstream of auger fillers or mixers. In UAE setups, they are aligned to maintain constant material supply without operator intervention, reducing stoppages caused by manual loading or inconsistent feeding.
Operators usually inspect the screw, hopper, and motor coupling regularly. Cleaning schedules are aligned with production cycles, especially for food-grade powders, to prevent material buildup and ensure consistent conveying performance.
