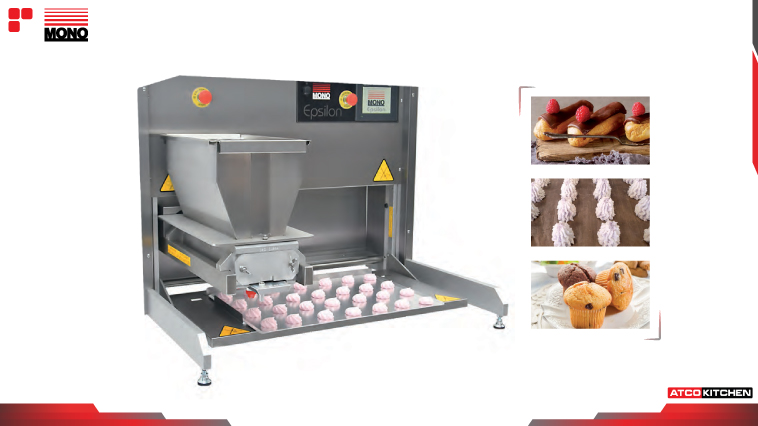

Epsilon Tabletop Depositor
The Epsilon Tabletop Depositor is a compact confectionery depositing system engineered for controlled portioning of soft batters and doughs. It is widely used in bakery production units and food manufacturing setups across the UAE and GCC. With up to 16 cycles per minute and hopper capacities of 20–22.5 litres, it supports consistent weight control while operating within less than one square metre of floor space.
The Epsilon Tabletop Depositor is designed for precision dosing of sponge mixes, choux pastry, muffin batters, and similar soft dough products. Its travelling hopper mechanism eliminates the need for a conventional conveyor, allowing trays up to 400 x 600 mm or 450 x 762 mm to be loaded directly from the front. This improves ergonomics and reduces operator handling effort.
In production kitchens in Dubai and Abu Dhabi, where space utilisation is critical, the unit fits through a standard doorway and occupies approximately 0.714–0.825 m² of base area. The system supports up to 16 deposits per cycle and can store 96 programmable recipes for repeatable output. Maximum deposited product height is 80 mm, and hopper capacity ranges between 20 and 22.5 litres depending on model.
The TFT touchscreen interface offers multi-language operation, while stainless steel construction ensures hygienic processing. Designed for single-phase power supply, it integrates smoothly into retail bakeries, central production facilities, and catering operations across the UAE.
Technical Specifications
| Product Code | Epsilon 400 |
Epsilon 450 |
|---|---|---|
| Height (mm) | 775 | 775 |
| Height to hopper (mm) | 550 | 550 |
| Fits tray sizes (mm) | 400 x 600 | Up to 450 x 762 |
| Depth (mm) | 742 | 790 |
| Width (mm) | 977 | 1139 |
| Area of base (m2) | 0.714 | 0.825 |
| Height to control panel (mm) | 700 | 700 |
| Weight with soft hopper fitted (kg) | 100 | 100 |
| Approx. Cycles per minute (mix dependant) | 16 | 16 |
| Hopper capacity soft dough (litre) | 20 | 22.5 |
| Maximum height of deposited product (mm) | 80 | 80 |
| Maximum height of tins (mm) | 36 | 41 |
| Maximum programme storage | 96 | 96 |
| No of languages | 14 | 14 |
| Electrics | ||
| Power Supply | Single phase, 13A maximum load. Suitable for 110v, 200v, 220v, 230v and 240v, 50-60Hz, IP53 maxi,um, no isolator | |
| Maximum power rating | 2.5kW single phased fused at 13A | |
| Noise level | Less than 85db | |
Key Features
- Travelling hopper system eliminating traditional conveyor belts
- Fits tray sizes up to 400 x 600 mm or 450 x 762 mm
- Up to 16 deposit cycles per minute (mix dependent)
- Hopper capacity 20–22.5 litres for soft dough applications
- Stores up to 96 programmable product settings
- Maximum deposited product height of 80 mm
- Single-phase plug-and-play electrical configuration
- Front-loading ergonomic tray access
- 14-language touchscreen interface
- Stainless steel hygienic construction with easy cleaning access
Epsilon Tabletop Depositor
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The Epsilon Tabletop Depositor is well suited for medium to high-volume bakery production units across the UAE. It delivers approximately 16 deposit cycles per minute and stores up to 96 programmable recipes. This allows consistent output in commercial kitchens and central production facilities in Dubai or Abu Dhabi without requiring a full conveyor-based system.
The machine handles soft doughs and batters such as muffins, cupcakes, choux buns, sponge sheets, brownies, and macarons. Its controlled portioning system allows adjustment of weight, height, and shape. It is commonly used in retail bakeries and manufacturing kitchens across the GCC where consistent portion accuracy is required.
The travelling hopper eliminates the need for a traditional conveyor, reducing overall footprint to less than one square metre. In urban UAE production environments where space is limited, this configuration allows trays to be loaded from the front, improving ergonomics and simplifying workflow integration.
The Epsilon 400 supports trays up to 400 x 600 mm, while the Epsilon 450 accepts trays up to 450 x 762 mm. This makes it compatible with standard bakery tray formats used in UAE commercial operations and export-oriented confectionery production lines.
The machine features stainless steel construction and a pour-through hopper design for simplified cleaning. Components are accessible for routine sanitation. This is important for UAE food manufacturing facilities that operate under strict hygiene compliance and regional food safety standards.
The depositor operates on a single-phase 13A supply and supports common voltage ranges including 220–240V. This plug-and-play configuration simplifies installation in UAE bakery workshops, catering kitchens, and industrial food production areas without complex electrical modifications.
