Single Chamber Table Top Vacuum Packaging Machine
The Single Chamber Table Top Vacuum Packaging Machine is a compact MAP solution designed for controlled air removal and sealing of packed goods. It is commonly deployed in food processing rooms, small production units, and back-of-house packaging areas across the UAE and wider GCC region. The system supports oxygen reduction to improve product stability and handling life. With sealing lengths ranging from 260 to 510 mm and a single enclosed chamber design, it suits low-to-medium batch packaging where space efficiency and repeatable seal quality are required. The Single Chamber Table Top Vacuum Packaging integrates well into MEA-based commercial packaging workflows.
In UAE operations, the unit is often installed in preparation zones or quality control sections in Dubai and Sharjah, where compact machinery is preferred due to layout constraints. Chamber sizes vary from 282 × 385 × 100 mm to 550 × 550 × 140 mm, supporting different pouch formats. Depending on the model, the system is equipped with one or two sealing bars, enabling parallel sealing when required.
Vacuum pump capacities up to 20 m³/h allow stable evacuation without excessive cycle delays. Stainless steel chamber construction ensures compatibility with wash-down routines common in Middle East food facilities. The machine functions as a standalone workstation and does not require conveyor integration, making it suitable for controlled batch processing and short production runs.
Technical Specifications
| Product Code | APHVC260T/1A | APC-410T/2A-G | APHVC510T/2A-G |
| Show Price | Show Price | ||
| Voltage (V/Hz) | AC 220/50 110/60 | AC 380/50 220/50 110/60 | AC 380/50 220/50 110/60 |
| Motor power (W) | 370 | 900 | 900 |
| Sealing Power (W) | 150 | 500 | 600 |
| Ultimate Vacuum Pressure (Kpa) | 1 | 1 | 1 |
| No. of Sealing Bar for Each Chamber | 1 | 2 | 2 |
| Sealing Length (mm) | 260 | 410 | 510 |
| Sealing Width (mm) | 5 | 10 | 10 |

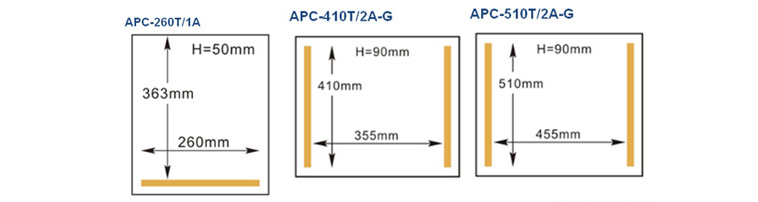

| Chamber Dimension (L×W×H) (mm) | 282×385×100 | 450×450×140 | 550×550×140 |
| Vacuum Pump Rate (m3/h) | 8 | 20 | 20 |
| Material of Vacuum Chamber | Stainless steel | Stainless steel | Stainless steel |
| External Dimensions (L×W×H) (mm) | 335×488×360 | 500×550×500 | 600×650×500 |
Key Features
- Single enclosed vacuum chamber with rigid stainless steel construction
- Table-top footprint suitable for limited workspaces
- Available sealing lengths between 260 mm and 510 mm
- One or two sealing bars per chamber depending on model
- Vacuum pump capacity options up to 20 m³/h
- Adjustable sealing width from 5 mm to 10 mm
- Transparent lid with gasketed closure for pressure stability
- Front-mounted control panel with pressure monitoring
OR
Single Chamber Table Top Vacuum Packaging Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, this machine is commonly used in food preparation rooms, small processing units, and warehouse packing areas. Facilities in Dubai and Sharjah often rely on it for batch sealing, re-packing, or quality-controlled MAP tasks where floor-mounted vacuum systems are not practical.
The unit operates as a standalone workstation and does not require conveyor integration. It is usually placed near preparation or inspection tables, allowing operators to seal products immediately before storage or dispatch, which suits the flexible workflows common in UAE logistics and distribution facilities.
Buyers typically assess chamber dimensions based on pack height and pouch layout. Sealing lengths between 260 mm and 510 mm cover most food and retail packs handled in the GCC, while internal chamber heights up to 140 mm support thicker or stacked contents.
Yes, it is designed for repeated batch cycles rather than continuous production. When operated within recommended duty cycles and allowed adequate cooling, it performs reliably in UAE processing rooms where moderate volumes are sealed throughout the day.
Routine cleaning of the stainless steel chamber, inspection of lid gaskets, and monitoring vacuum pump oil or performance are essential. In Middle East climates, ensuring sufficient airflow around the machine helps maintain consistent operation during extended use.
The machine achieves stable vacuum levels suitable for most MAP applications. This allows products to be sealed with reduced oxygen content before storage or transport across the UAE and wider MEA region, helping maintain condition during handling.
