Single Chamber Floor Type Vacuum Packaging Machine
The Single Chamber Floor Type Vacuum Packaging Machine is an industrial MAP solution designed for high-volume vacuum sealing in production and packing environments. It is typically installed in food factories, central kitchens, and warehouse packing areas across the UAE and the wider GCC. The machine supports controlled air evacuation and consistent sealing for medium to large batch workflows. With sealing lengths between 410 and 510 mm and a deep chamber height of 140 mm, the Single Chamber Floor Type Vacuum Packaging Machine is suited for handling larger packs commonly used in Middle East and MEA distribution operations.
In UAE operations, the equipment is commonly deployed in processing and dispatch zones in Dubai and Abu Dhabi, where continuous batch packing forms part of daily workflow. Chamber dimensions of 450 × 450 × 140 mm to 550 × 550 × 140 mm allow accommodation of wide pouches and tall product loads. Dual sealing bars per chamber enable parallel sealing, reducing manual repositioning during repeated cycles.
Vacuum pump capacity of 20 m³/h supports stable evacuation without extended cycle times. The unit is mounted on castors for controlled repositioning within production floors. Stainless steel construction supports hygiene and cleaning protocols followed in UAE food and logistics facilities. The machine integrates as a standalone sealing station, often positioned downstream of preparation or portioning areas.
Technical Specifications

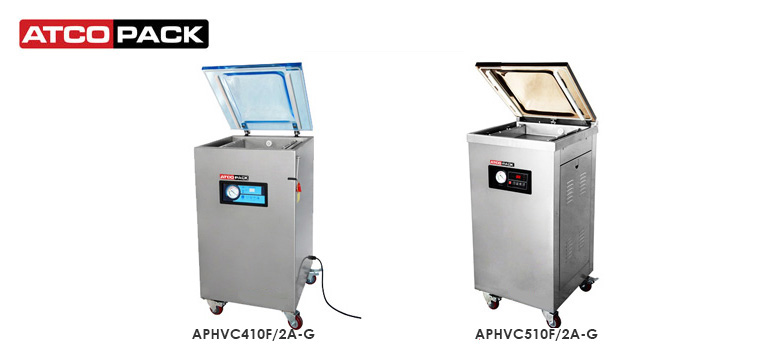

| Product Code | APHVC410F/2A-G | APHVC510F/2A-G |
| Show Price | ||
| Voltage (V/Hz) | AC 380/50 220/50 110/60 | AC 380/50 220/50 110/60 |
| Motor power (W) | 900 | 900 |
| Sealing Power (W) | 500 | 600 |
| Ultimate Vacuum Pressure (Kpa) | 1 | 1 |
| No. of Sealing Bar for Each Chamber | 2 | 2 |
| Sealing Length (mm) | 410 | 510 |
| Sealing Width (mm) | 10 | 10 |
| Chamber Dimension (L×W×H) (mm) | 450×450×140 | 550×550×140 |
| Vacuum Pump Rate (m3/h) | 20 | 20 |
| Material of Vacuum Chamber | Stainless steel | Stainless steel |
| External Dimensions (L×W×H) (mm) | 500×550×1000 | 600×650×1000 |

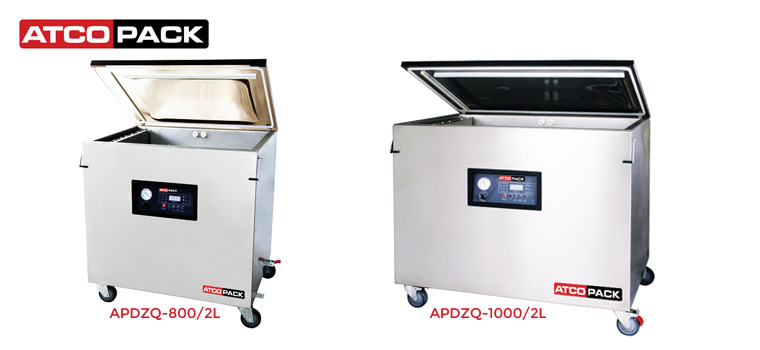

| Product Code | APDZQ-800/2L | APDZQ-900/2L | APDZQ-1000/2L | APDZQ-1100/2L |
| Voltage (V/Hz) | AC 380/50 220/50 110/60 | |||
| Motor power (W) | 1800 | 1800 | 1800 | 1800 |
| Sealing Power (W) | 1000 | 1000 | 1500 | 1500 |
| Ultimate Vacuum Pressure (Kpa) | 1 | |||
| No. of Sealing Bar for Each Chamber | 1~2 | 1~2 | 1~2 | 1~2 |
| Sealing Length (mm) | - | - | - | - |

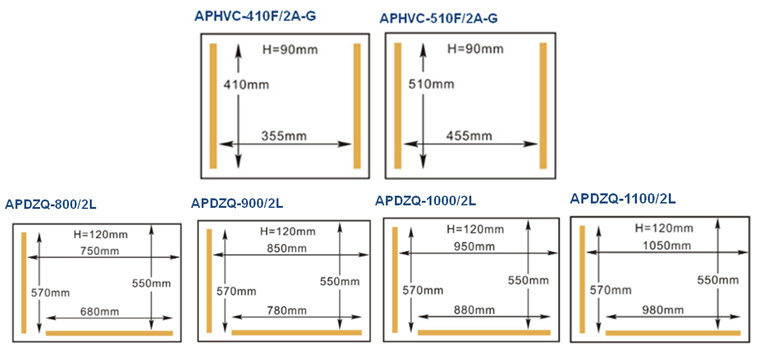

| Length & Width of Sealing bar | 570 680 | 570 780 | 570 880 | 570 980 |
| Sealing Width (mm) | 10 | |||
| Chamber Dimension (L×W×H) (mm) | 806×606×190 | 906×606×190 | 1006×606×190 | 1106×606×190 |
| Vacuum Pump Rate (m3/h) | 20×2 | 20×2 | 20×2 | 20×2 |
| Material of Vacuum Chamber | Stainless steel | |||
| External Dimensions (L×W×H) (mm) | 886×720×1005 | 986×720×1005 | 1086×720×1005 | 1186×720×1005 |
| Net Weight (Kg) | 235 | 245 | 255 | 260 |
Key Features
- Floor-mounted single chamber vacuum sealing system
- Two sealing bars per chamber for parallel sealing
- Sealing length options from 410 mm to 510 mm
- Chamber height of 140 mm for bulk or tall packs
- Vacuum pump rate of 20 m³/h
- 10 mm sealing width for reinforced seal integrity
- Stainless steel vacuum chamber construction
- Castor-mounted base for controlled movement
OR
Single Chamber Floor Type Vacuum Packaging Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, floor type single chamber machines are commonly used in food factories, central kitchens, and warehouse packing areas. Facilities in Dubai and Abu Dhabi rely on them for sealing large packs or bulk portions where table-top units are not practical due to load size and daily output volume.
The floor-mounted design allows handling of heavier and larger packages without lifting constraints. Dual sealing bars and deeper chamber capacity enable operators to process wider pouches or multiple items per cycle, which suits batch-based workflows common in UAE production and distribution environments.
Operators typically assess chamber dimensions based on product height and pouch width. Chamber sizes up to 550 × 550 × 140 mm allow sealing of bulky packs often used in regional distribution across the GCC, reducing the need for multiple sealing cycles.
The machine is generally placed downstream of portioning or preparation stations. It functions as a standalone sealing point, allowing operators to vacuum seal products before cold storage or dispatch, without requiring conveyor integration or automation changes.
Routine maintenance includes cleaning the stainless steel chamber, checking sealing bars, and monitoring vacuum pump performance. In Middle East climates, ensuring proper ventilation around the machine helps maintain stable operation during extended daily use.
Yes, the machine achieves stable vacuum levels suitable for MAP processes. This allows products to be sealed with reduced oxygen content, supporting handling and transport across UAE, GCC, and broader MEA distribution channels.
