Double Chamber Floor Type Vacuum Packaging Machine
The Double Chamber Floor Type Vacuum Packaging Machine is a high-capacity MAP solution designed for continuous batch sealing in industrial environments. It is typically installed in food factories, processing plants, and large warehouse packing areas across the UAE and the wider GCC region. The machine supports uninterrupted workflow by allowing one chamber to operate while the other is loaded. With sealing lengths ranging from 410 mm to 820 mm and dual-chamber operation, the Double Chamber Floor Type Vacuum Packaging Machine meets the requirements of high-throughput operations common across the Middle East and MEA.
In UAE facilities, the machine is widely used in processing and dispatch zones in Dubai and Abu Dhabi, where consistent output and reduced handling delays are critical. Chamber sizes support a wide range of pouch formats, including large and heavy packs used for bulk distribution. Sealing lengths vary from 410 mm up to 820 mm, enabling flexibility across different product lines. Sealing width options of 10 mm or 2×3 mm allow adaptation to different laminate structures and product requirements.
Vacuum pump configurations range from 20 m³/h up to 100 m³/h, supporting stable evacuation even during extended production runs. Stainless steel chamber construction supports hygiene and cleaning protocols followed in UAE food and logistics operations. The unit is mounted on a rigid base with castors, allowing controlled movement during layout adjustments.
Technical Specifications
| Product Code | APHVC-410S/2A-G | APHVC-510S/2A-G | APHVC-610S/2A-G | APHVC-720S/2B-G | APHVC-820S/2B-G |
| Voltage (V/Hz) | AC 380/50 220/50 110/60 | ||||
| Motor power (W) | 900 | 1800 | 1100 | 2200 | 3000 |
| Sealing Power (W) | 500 | 600 | 1000 | 1500 | 1500 |
| Ultimate Vacuum Pressure (Kpa) | 1 | ||||
| No. of Sealing Bar for Each Chamber | 2 | ||||
| Sealing Length (mm) | 410 | 510 | 610 | 720 | 820 |
| Sealing Width (mm) | 10 or 2×3 | 10 or 2×3 | 10 or 2×3 | 10 or 2×3 | 10 |

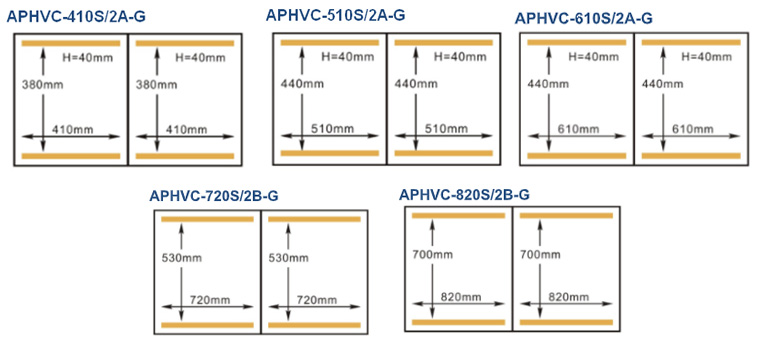

| Chamber Dimension (L×W×H) (mm) | 510×500×160 | 610×550×160 | 720×550×160 | 800×630×175 | 910×800×225 |
| Vacuum Pump Rate (m3/h) | 20 | 20×2 | 40 | 63 | 100 |
| Material of Vacuum Chamber | Stainless steel | ||||
| External Dimensions (L×W×H) (mm) | 1070×685×940 | 1270×735×940 | 1485×735×940 | 1670×685×975 | 1890×1030×1000 |
| Net Weight (Kg) | 180 | 220 | 240 | 300 | 500 |
Key Features
- Double chamber floor type vacuum packaging configuration
- Two sealing bars per chamber for alternating operation
- Sealing length options from 410 mm to 820 mm
- Selectable sealing width of 10 mm or 2×3 mm
- Vacuum pump capacity options up to 100 m³/h
- Large chamber dimensions for bulk packaging
- Stainless steel vacuum chamber construction
- Castor-mounted frame for controlled repositioning
Double Chamber Floor Type Vacuum Packaging Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, this machine is commonly used in large food factories, central kitchens, and warehouse packing zones. Facilities in Dubai and Abu Dhabi rely on double chamber systems where continuous batch sealing is required to meet daily output targets without stopping production flow.
The alternating chamber operation allows one chamber to seal while the other is being loaded. This reduces idle time between cycles, which is important in UAE production environments handling bulk packaging for GCC and wider Middle East distribution.
With sealing lengths up to 820 mm and deep chamber dimensions, the machine handles large pouches, bulk meat cuts, and multi-item packs. This suits UAE operations that package high-volume products for wholesale or export-oriented supply chains.
The machine is usually installed as a dedicated sealing station downstream of portioning or preparation areas. It operates independently from conveyors, allowing flexible placement within UAE warehouses or production floors without major layout changes.
Regular cleaning of stainless steel chambers, inspection of sealing bars, and monitoring vacuum pump performance are essential. In Middle East climates, adequate ventilation around the machine helps maintain consistent operation during extended daily shifts.
Yes, the machine achieves stable vacuum levels suitable for MAP applications. This allows products to be sealed with reduced oxygen content, supporting storage and transport across UAE, GCC, and broader Africa and MEA logistics networks.
