High Performance Gas Wok

Catalogue

1/1

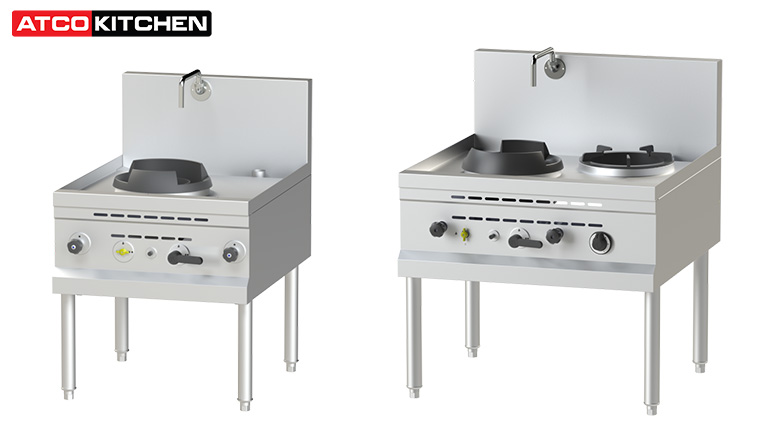

High-Performance Gas Wok is engineered for powerful and efficient Oriental cooking, featuring a robust 33 kW jet-burner. Compact yet incredibly effective, this wok is ideal for professional kitchens that demand speed and versatility.

Crafted from premium AISI 304 stainless steel, it boasts a slanted, deep-drawn 3.2 mm reinforced top panel and a heavy-duty, removable cast iron wok ring. The unit includes a swivel faucet mounted on the backsplash, easily controlled from the front panel for convenient water supply. The intelligent deck cooling and cleaning system ensures the top panel remains cool and easy to clean, with an enhanced hygiene channel at the back for effective drainage. A built-in strainer prevents clogs, maintaining smooth operation.

Product Code	NGK S 40-90 W1	NGK S 40-90 W1S1
Wok burners	Ø 280 mm	Ø 280 mm
Soup burners	NA	Ø 280 mm
Heat input total	LPG/LNG 33 kW	LPG 44.5 kW, LNG 46 kW
No. of burners	1	2
Control type	Open-close valve	Wok = Open-close valve, soup = high-low power control
Gas type options	LPG G30, G31 LNG G20, G25	LPG G30, G31 LNG G20, G25
Direct heat emission	LPG/LNG 8.25 kW	LPG 11.13 kW , LNG 11.50 kW
Latent heat emission	LPG/LNG 4.95 kW	LPG 6.68 kW , LNG 6.90
Steam emission	LPG/LNG 8.75 kg/h	LPG 11.79 kg/h , LNG 12.19 kg/h
External Dimensions(WDH)mm	700900(750/1050) mm	900900(750/1050) mm
Net Weight	64 kg	190 kg
Gross Weight	82 kg	243 kg

Key Features:

One atmospheric wok jet-burner with a power rate of 33 kW
Manual ignition
Equipped with pilot burner, safety thermocouple, gas valve, gas knee lever
Slanted, reinforced (3.2 mm) top panel with drain channel and removable strainer in the back for easy operation
Cold-water supply with one swivel faucet mounted on the backsplash
Deck cooling & cleaning system with spray noz zles for maximum hygiene.
Suitable for wok-pan sizes Ø 14-18” (355-457mm)
CE certified unit
