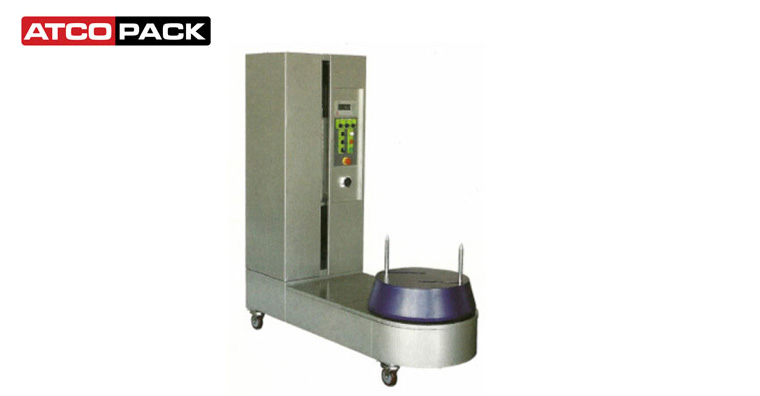

Automatic Box Stretch Wrapper
The Automatic Box Stretch Wrapper is a compact stretch wrapping system designed for stabilizing cartons and small box loads using stretch film. It is commonly installed in warehouses, packing rooms, and dispatch areas to support consistent load containment before shipment. The machine is suited for packages up to 80 kg, with adjustable wrapping height control and turntable rotation up to 20 rpm. This equipment is widely applied across UAE, GCC, and MEA operations where controlled wrapping and repeatable packaging quality are required.
This system is typically deployed in warehouse dispatch zones, contract packing units, and factory end-of-line sections where cartons are consolidated before movement. In facilities across Dubai and Sharjah, the wrapper integrates smoothly into semi-automated packing workflows, supporting stable wrapping without floor anchoring.
The machine accommodates cartons with dimensions ranging from 250 to 1200 mm in height, and widths up to 400 mm, making it suitable for mixed SKU handling. Mechanical pre-stretch control allows operators to regulate film tension based on box strength. With a machine weight of approximately 150 kg and low operating noise levels, it remains practical for indoor logistics environments in the UAE.
Technical Specifications
| Product Code | APM900B |
| Show Price | |
| Stretch type | Mechanical pre stretch |
| Power | 1 P, AC 220V 50 Hz, 1 KW |
| Speed of turn plate | 0 – 20 r/min |
| Packaged object | Max. Weight: 80 kg Package size: L (250 - 1200) mm x W (200 - 400) mm x H (250 - 1200) mm |
| Lifting unit | Photoelectric switch controls the height |
| Film stretching unit | Film tension can be adjusted by frequency regulation (pre stretch) |
| Dimension of machine | 1600 (L) x 600 (W) x 1740 (H) mm |
| Weight of the machine | 150 kg |
| Noise | <=75DB |
| Temperature | 10° C - 40° C |
| Humidity | <=98% |
Key Features
- Mechanical pre-stretch film carriage with adjustable tension control
- Turntable rotation speed adjustable up to 20 revolutions per minute
- Photoelectric sensor for automatic detection of box height
- Suitable for cartons and box loads up to 80 kg
- Compact footprint for space-restricted packing areas
- Stable mobile frame fitted with industrial castor wheels
- Consistent wrapping pattern with repeatable cycle performance
- Designed for indoor warehouse and dispatch zone operation
OR
Automatic Box Stretch Wrapper
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, this machine is commonly used in e-commerce fulfillment centers, FMCG warehouses, and contract packing units where cartons are dispatched individually. Facilities in Dubai and Sharjah often use it for stabilizing boxes before courier handover or pallet grouping, especially where manual wrapping causes inconsistency or delays.
The Automatic Box Stretch Wrapper uses a photoelectric height sensor to detect carton height before wrapping begins. The film carriage automatically travels based on the detected height, allowing mixed carton sizes to be wrapped sequentially without resetting parameters, which is useful in UAE warehouses handling varied SKUs.
Yes, the machine is designed for indoor warehouse use with controlled noise levels and stable mechanical components. It operates reliably within typical UAE warehouse temperature ranges and supports repeated daily cycles without requiring frequent recalibration, making it suitable for dispatch zones and packing stations.
Operators should ensure cartons are centered on the turntable and remain within the rated weight limit. Loose clothing near the rotating platform should be avoided. In shared packing areas common in Abu Dhabi facilities, clear floor markings and controlled access during operation are recommended.
Routine maintenance includes checking film tension rollers, inspecting the photoelectric sensor for dust buildup, and ensuring smooth turntable rotation. Periodic tightening of mechanical fasteners and basic electrical inspection are usually sufficient, which aligns well with standard UAE warehouse maintenance practices.
