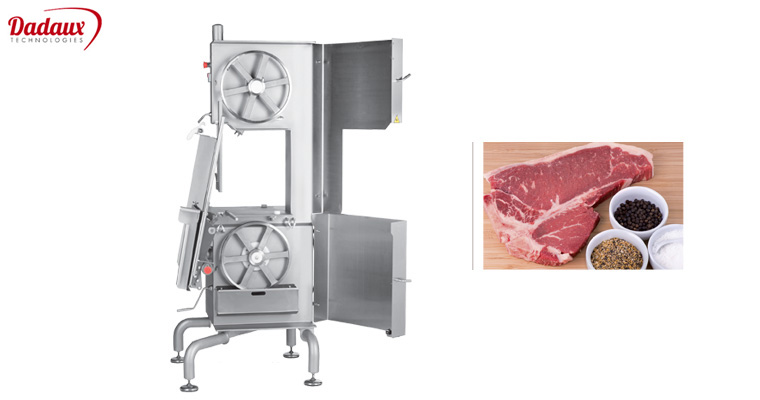

SX 400 Bone Saw
The SX 400 Bone Saw from Dadaux is a high-capacity vertical band saw developed for industrial meat fabrication in the UAE and across the GCC / Middle East / Africa (MEA). It is used in large butcheries, abattoirs, and processing plants where oversized bone-in sections must be split with accuracy. With a cutting capacity of 419 x 380 mm and blade speed of 20 m/s, it supports heavy-duty daily throughput under regulated food production conditions.
The SX 400 Bone Saw is designed for large carcass breakdown and bulk portioning in high-volume meat processing environments. In Dubai and Abu Dhabi industrial facilities, it is typically positioned within primary fabrication zones where full quarters and substantial frozen blocks are resized prior to trimming and packaging.
The machine provides a cutting window of 419 mm width and 380 mm height, allowing processing of large beef and lamb sections. It operates with a 3150 x 16 mm blade driven at approximately 20 m/s, delivering stable cutting performance through dense bone structures. A 3 kW motor supports sustained operation during extended production shifts.
Constructed entirely from stainless steel 18-10, the frame thickness ensures rigidity under continuous mechanical load. The automatic blade tensioning system maintains correct alignment, while the sliding upper blade guide adapts to product height. The moving carriage on SX400 models improves handling of heavy sections and simplifies sanitation access. Motor and electrical components are protected against water splash, aligning with washdown procedures in UAE meat plants.
Technical Specifications
| Product Code | Sx400 | Sx400S |
| Tension | 400V, 50 HZ | 400V, 50 HZ |
| Cutting capacity | 419 x 380 mm | 419 x 380 mm |
| Blade dimensions | 3150 x 16 | 3150 x 16 |
| Motor | 3 Kw | 3 Kw |
| Speed blade | 20 m / s | 20 m / s |
| Weight | 265 Kg | 265 Kg |
Key Features
- Entire stainless steel 18-10 construction
- Cutting capacity: 419 x 380 mm
- Blade dimension: 3150 x 16 mm
- Blade speed: approximately 20 m/s
- 3 kW motor for heavy-duty operation
- Automatic blade stretcher system
- Sliding upper blade guide with automatic positioning
- Moving carriage for product handling and cleaning access
- Motor and electrical splash protection
- CE compliant configuration
SX 400 Bone Saw
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The SX 400 is generally installed in large meat fabrication plants, central processing units, and abattoirs in Dubai and Abu Dhabi. It is suited for splitting full quarters and oversized bone-in sections before trimming and packaging, particularly in operations supplying retail chains across the GCC and Middle East.
The large cutting window allows processing of substantial carcass portions without repeated repositioning. In UAE industrial meat plants, this supports smoother workflow between primary breakdown and secondary trimming stages, reducing handling time and maintaining consistent portion dimensions.
Yes, provided the block dimensions remain within the 419 mm width and 380 mm height limits. In UAE cold storage facilities, the 3 kW motor and 20 m/s blade speed enable stable cutting through dense bone and semi-frozen material under controlled feed conditions.
The moving carriage supports smoother product feed and better control during cutting. In Sharjah and other industrial zones, it assists operators when handling heavy sections and simplifies cleaning access beneath the cutting table after daily production shifts.
Routine checks should include blade tension verification, guide alignment inspection, and cleaning of stainless steel surfaces after each shift. Maintenance teams in UAE meat plants typically monitor electrical splash protection and ensure the automatic blade stretcher functions correctly.
The stainless steel 18-10 construction and splash-protected motor components support regular washdown cleaning. In regulated UAE food processing environments, compliance with CE norms and proper sanitation procedures helps maintain safe operational standards.
