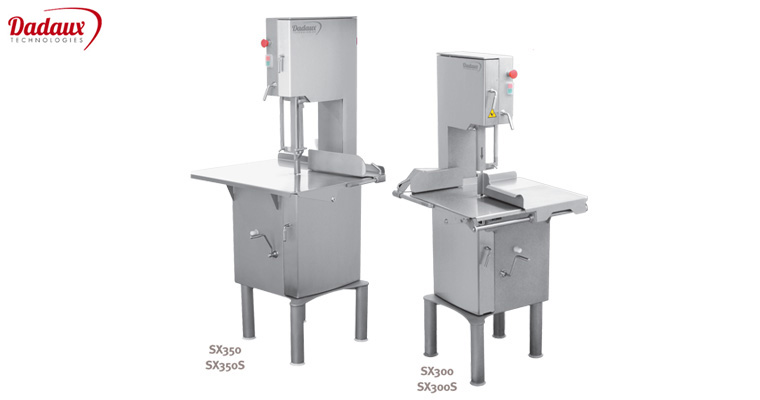

SX 300 Bone saw
The SX 300 Bone Saw from Dadaux is a vertical band saw designed for heavy-duty bone-in meat cutting in the UAE and across the GCC / Middle East / Africa (MEA). It is used in butcheries, meat fabrication rooms, and commercial processing facilities where large carcass sections require controlled splitting. With a cutting capacity of 240 x 300 mm and blade speed of 20 m/s, it supports structured daily throughput under regulated food safety environments.
The SX 300 Bone Saw is engineered for high-capacity carcass breakdown and portion resizing in professional meat handling operations. In Dubai and Abu Dhabi processing plants, it is typically installed in fabrication zones between primary breakdown and trimming stations, ensuring smooth workflow integration.
The machine offers a cutting window of 240 x 300 mm and operates with a 2170 x 16 mm blade at approximately 20 m/s. This configuration allows consistent penetration through dense bone and frozen blocks while maintaining controlled feed movement. For higher capacity requirements, the SX350 variant extends cutting space to 300 x 340 mm with blade speeds up to 23 m/s.
Constructed entirely from stainless steel 18-10, the frame provides rigidity under continuous load. The automatic blade tensioning system maintains correct alignment during repetitive cycles. A sliding upper blade guide adjusts to product height, and the moving carriage improves handling and cleaning accessibility. Motor and electrical assemblies are protected against water splash, supporting washdown procedures common in UAE meat facilities.
Technical Specifications
| Product Code | SX300S | SX300 | SX350S | SX350 |
| Show Price | ||||
| Tension | 400V, 50 HZ | 400V, 50 HZ | 400V, 50 HZ | 400V, 50 HZ |
| Cutting capacity | 240x300 mm | 240x300 mm | 300x340 mm | 300x340 mm |
| Blade dimensions | 2170x16 | 2170x16 | 2490x16 | 2490x16 |
| Motor | 1.5 Kw | 1.5 Kw | 1.84 Kw | 1.84 Kw |
| Speed blade | 20 m/s | 20 m/s | 23 m/s | 23 m/s |
| Weight | 125 Kg | 120 Kg | 145 Kg | 140 Kg |
Key Features
- Stainless steel 18-10 full-frame construction
- Cutting capacity: 240 x 300 mm (SX300)
- Blade dimension: 2170 x 16 mm
- Blade speed approximately 20 m/s
- Automatic blade tensioning mechanism
- Sliding upper blade guide with automatic positioning
- Moving carriage for improved product handling and sanitation
- Motor and electrical splash protection
- CE compliance
SX 300 Bone saw
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The SX 300 is commonly used in meat fabrication rooms, wholesale butcheries, and supermarket processing areas across Dubai and Abu Dhabi. It supports carcass breakdown and resizing of large bone-in sections before trimming or packaging, especially in facilities supplying retail chains across the GCC and wider Middle East.
The defined cutting window allows operators to process substantial bone sections without repositioning oversized pieces. In UAE processing units handling steady daily volumes, this capacity supports consistent portion sizing while maintaining controlled workflow between splitting, trimming, and packing stations.
Yes, within dimensional limits. In UAE cold storage and distribution environments, the machine can process moderately frozen blocks that fit within the 240 mm width and 300 mm height range. Operators should avoid exceeding these dimensions to prevent mechanical strain.
The automatic blade stretcher maintains proper tension during repetitive cutting cycles. In Sharjah and other industrial zones, this feature reduces deviation and helps maintain straight cut lines during continuous operation, particularly when processing dense bone structures.
The moving carriage allows smoother feed movement and improves accessibility during sanitation. In UAE meat preparation rooms, it supports controlled product positioning and simplifies cleaning access beneath the cutting table after production shifts.
Routine inspection of blade condition, guide alignment, and tension settings is essential. In UAE facilities operating extended hours, maintenance teams typically check electrical splash protection and ensure no debris accumulates around drive components.
