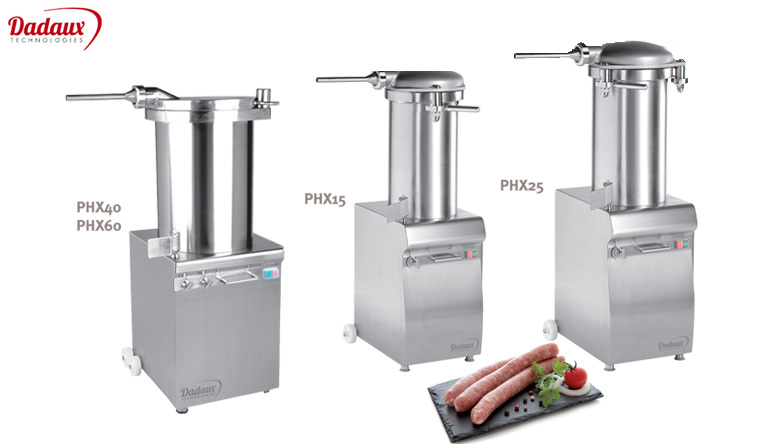

PHX Series Hydraulic Meat Stuffer
The PHX Series Hydraulic Meat Stuffer is a sausage-filling machine designed for controlled portioning of minced meat mixtures into natural or synthetic casings. This Hydraulic Meat Stuffer is commonly installed in butcher processing rooms, food preparation plants, and meat production facilities across the UAE and the wider GCC and Middle East region. The equipment supports consistent sausage production with cylinder capacities ranging from 15 litres to 56 litres. Its hydraulic piston system ensures steady filling pressure and uniform product density during meat stuffing operations.
The PHX Series Hydraulic Meat Stuffer is designed for industrial sausage production where consistent filling pressure and accurate portioning are required. The machine uses hydraulic power to push minced meat mixtures through a nozzle into sausage casings while maintaining steady product flow.
In meat processing operations in Dubai and Abu Dhabi, the Hydraulic Meat Stuffer is typically placed after grinding and mixing stages. Once the meat mixture is prepared, it is loaded into the cylinder and the piston drives the product through interchangeable nozzles. This controlled stuffing process reduces air pockets and supports uniform sausage structure.
The PHX series includes models with capacities of 15 L, 25 L, 40 L, and 56 L, allowing operators to select the appropriate batch size based on production volume. Adjustable piston speed provides flexibility when working with different meat textures and casing types.
A fast piston return system allows the cylinder to be reloaded quickly between filling cycles. The machine is constructed entirely from stainless steel components, including the piston, cover, and filling nozzles, supporting hygienic operation in UAE meat processing facilities.
Technical Specifications
| Product Code | PHX 15 | PHX 25 | PHX 40 | PHX 60 |
| Show Price | ||||
| Tension | TRI, 400 V, 50 Hz | TRI, 400 V, 50 Hz | TRI, 400 V, 50 Hz | TRI, 400 V, 50 Hz |
| Motor | 0.75 CV (0.55 Kw) | 1 CV (0.75 Kw) | 2 CV (1.5 Kw) | 2 CV (1.5 Kw) |
| Capacity | 15 L | 25 L | 40 L | 56 L |
| Weight | 100 kg | 130 kg | 210 kg | 250 kg |
Key Features
- Entire stainless steel construction including piston, cover, and filling nozzles
- Hydraulic piston system designed for stable sausage filling pressure
- Available cylinder capacities of 15 L, 25 L, 40 L, and 56 L
- Adjustable piston speed for different meat formulations and casing sizes
- Automatic decompression when the knee control is released
- Fast piston return system for rapid batch preparation
- Closed hydraulic circuit with integrated oil tank
- Mounted on castor wheels for repositioning inside processing rooms
- Supplied with three filling nozzles Ø14 mm, Ø20 mm, Ø30 mm
- Delivered with piston extractor tool and service key
PHX Series Hydraulic Meat Stuffer
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The PHX Series hydraulic meat stuffer is usually placed after grinding and mixing stages in butcher production rooms or meat processing areas. In UAE facilities such as those in Dubai and Abu Dhabi, it is used to fill sausage casings with prepared meat mixtures before linking, twisting, or packaging operations.
The hydraulic piston system provides steady and controlled pressure when pushing meat mixtures into casings. This consistent force reduces air pockets and helps maintain uniform sausage density. Processors across GCC and Middle East facilities rely on this mechanism to achieve repeatable product texture and shape during batch production.
The PHX Series offers several cylinder sizes including 15 L, 25 L, 40 L, and 56 L. These options allow processors to select equipment that matches their batch size and daily production needs. Smaller cylinders suit butcher shops, while larger capacities are useful in centralized meat preparation facilities.
Piston speed adjustment allows operators to control the rate of meat flow through the filling nozzle. Slower speeds can be used with delicate casings, while higher speeds support faster batch production. This flexibility helps processors handle different sausage formulations and casing materials.
The system includes automatic decompression that releases internal pressure when the knee control is disengaged. This prevents excess pressure inside the cylinder and protects both the casing and the machine components. Such safety mechanisms are important in busy food processing environments.
Operators typically clean the cylinder, piston, and filling nozzles after each production cycle. Regular checks of hydraulic oil levels, seals, and piston movement ensure stable performance. Stainless steel construction simplifies sanitation procedures required in meat processing facilities.
