Motorized Belt Conveyors
Motorized Belt Conveyors are electrically driven conveying units used to move products in a controlled and continuous manner across coding, marking, and inspection stations. Within CIJ printer lines, they support stable product positioning during inkjet coding operations in factories, warehouses, and logistics facilities. These conveyors are commonly applied across the UAE, GCC, and wider MEA region where consistent line speed is required. Typical configurations operate within speed ranges of approximately 5–28 m/min and are built with working lengths around 1500 mm, supporting uniform product flow without manual handling interruptions.
In industrial environments such as food processing plants, packaging halls, and manufacturing units across Dubai and Abu Dhabi, these conveyors are positioned directly beneath CIJ print heads to maintain consistent spacing and orientation of items. The stainless steel frame construction supports use in controlled hygiene zones and general factory floors.
Standard systems are typically manufactured with belt widths ranging from 190 mm to 300 mm and overall widths between 250 mm and 400 mm, depending on product size. Conveyor height is usually set around 750 mm for ergonomic integration into existing lines. Adjustable side baffles assist with lateral product guidance, reducing skew during transport. The conveyor integrates easily with printers, sensors, and rejection systems, supporting continuous operation with predictable throughput under routine industrial duty cycles.
Technical Specifications

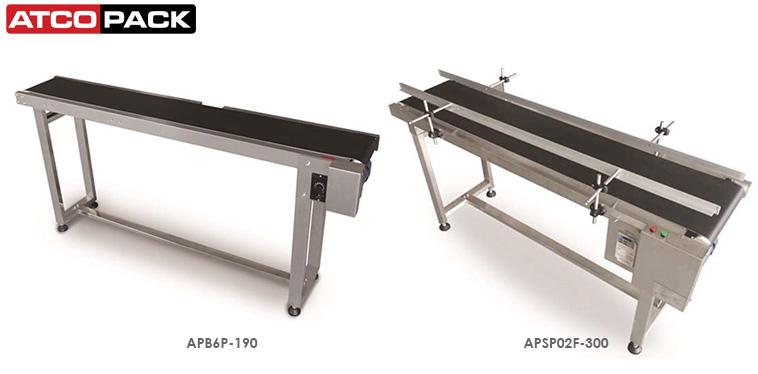

| Product Code | APB6P-190 | APSP02F-300 |
| Width(mm) | 250 | 400 |
| Length(mm) | 1500 | 1500 |
| Height(mm) | 750 | 750 |
| Belt width(mm) | 190 | 300 |
| Main Material | 201 Stainless Steel | Stainless Steel |
| Locate mode | adjustable baffle on both sides - Half length | Two sides adjustable baffle – full length |
| Power Supply | 220V, 50Hz | 220V, 50Hz |
| Power | 60W | 120W |
| Speed regulation | Electronic type | Variable Frequency |
| Speed(m/min) | 5-25 | 5-28 |
Key Features
- Electric motor-driven belt transport for continuous product movement
- Compatible with CIJ printer mounting and sensor triggering systems
- Available belt widths suitable for narrow to medium-sized products
- Electronic or variable frequency speed regulation options
- Stainless steel structural frame for industrial environments
- Adjustable side baffles for product alignment control
- Standard operating speed range up to approximately 28 m/min
- Fixed working height for easy line-level integration
OR
Motorized Belt Conveyors
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
In UAE factories and warehouses, motorized belt conveyors are positioned directly under CIJ print heads to maintain stable product movement during coding. Facilities in Dubai and Sharjah commonly use them to ensure uniform spacing, controlled speed, and consistent orientation, which helps reduce print distortion on cartons, bottles, or wrapped items.
These conveyors are suitable for lightweight to medium-weight items such as cartons, pouches, bottles, trays, and secondary packaging. In Abu Dhabi production lines, they are often used where products require steady travel rather than accumulation, ensuring reliable inkjet printing without sudden starts or stops.
Speed regulation allows operators to match belt movement with the CIJ printer’s firing frequency. In GCC industrial environments, incorrect speed settings can cause stretched or compressed codes. Adjustable electronic or variable frequency controls help maintain consistent print resolution across different product sizes and line conditions.
Yes, when properly specified, these conveyors are designed for continuous operation across standard industrial shifts. In Middle East logistics and packaging facilities, they are commonly run for extended hours, provided routine checks on belt tracking, motor temperature, and mechanical fasteners are followed.
Routine maintenance includes belt surface cleaning, checking belt alignment, inspecting motor mounts, and verifying speed controller settings. In UAE warehouses exposed to dust or packaging debris, periodic cleaning helps prevent belt slippage and ensures stable product transport during coding and marking processes.
Adjustable side baffles guide products laterally, preventing drift during movement. This is especially useful in high-mix production environments common in Africa and MEA export facilities, where varying product widths are coded on the same line without frequent conveyor replacement or repositioning.
