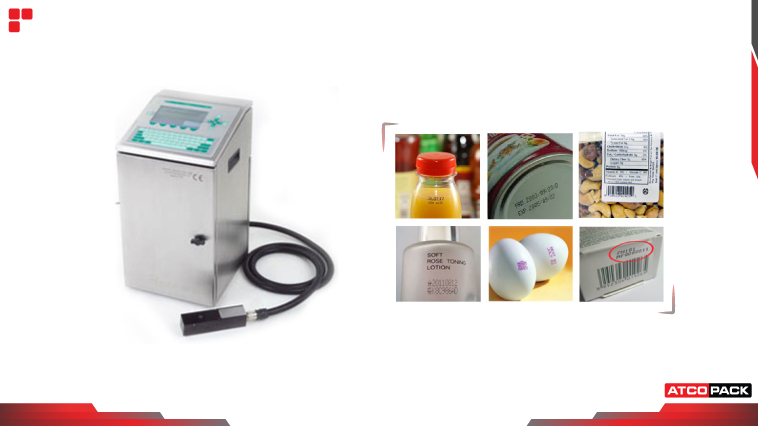

Industrial Inkjet Printer
The Industrial Inkjet Printer is a continuous coding system used to apply variable data directly onto products and packaging during production. It is commonly installed on factory lines, warehouses, and logistics operations to print dates, batch codes, and traceability marks. The system supports high-speed lines with single-line print speeds reaching up to 300 m/min and allows multi-line text with fine dot resolution. This solution is widely deployed across UAE, GCC, and broader Middle East manufacturing environments where uninterrupted operation and consistent print quality are required.
In UAE production facilities across Dubai and Sharjah, the system is often installed on high-throughput lines where print clarity must remain stable despite speed variation, vibration, or ambient temperature changes. The unit supports up to three lines of text with 24 vertical dots and maintains consistent character formation at conveyor speeds up to 300 m/min. Operators interact through a 7-inch TFT interface with WYSIWYG preview, enabling fast message changes during shift transitions.
The embedded Linux operating system improves stability in long operating cycles, while Ethernet and USB connectivity allow data backup, logo transfer, and software updates. Multiple print modes support standard text, graphics, and high-speed applications. This configuration suits UAE factories that operate extended shifts and require controlled maintenance intervals with predictable service planning.
Interface & Communication:
- 7”TFT color screen, with int’l standard QWERT keypad
- USB port, to save/restore text & config, to load logos from pc to printers, to upgrade software
- Ethernet port (10/ 100MB)
Electronic & Software Features:
- 32 Digits embedded LINUX operation system
- User friendly interface, WYSIWYG display
- Storage memory 40MB
- “RUN/STOP” hot key to start/ shut down printer automatically
- “INFO” hot key to list the history of errors to ease maintenance
- “PRINT MENU” hot key to activate printing instantly
- USB/Ethernet software upgrading
- Pop-up window to remind changing filters in every 2,000 hours
- Real time and date with calendar
- Four print mode: High Speed, Standard, Graphic, multi-line high speed
- Text format: Horizontal-reverse, Vertical-reverse, Negative, Double Space, Bold, Character width
- Defined grid value to move the editing cursors at certain dot you need
- 3 counters & 4 shifts, automatically
- Build-in graphic/logo editing software as standard, full screen
- OPS (Encoder direction recognition and print compensation function)
- DMS (Distance Measuring System)
- Passwords give access to different level of users
- Multi operation language available
- Instruction/training movie clips play function via USB disk, optional
Printing Features:
- Expiry date, MFG, Batch number, Logo, Auto real time/date, Julian date, shift, counters, numbering
- 24dots vertically, upto 3 lines printing
- Multi-fonts available, can be customized upon request
- Printing speed (single line): 300m/min (5x5)
- Direct input Arabic/Farsi/Russian characters with keypad
Optional Accessories:
- Photo sensor, Shaft encoder
- Alarm system ,3 colors
- Conveyor, Condenser, solvent
- Recovery system
- Sliding table & PC logo software
Key Features
- Continuous inkjet coding for non-contact printing on moving products
- Single-line printing speed up to 300 m/min with stable character formation
- Up to three lines of text with 24-dot vertical resolution
- 7-inch TFT color display with QWERTY keypad for direct data entry
- Support for Arabic, Farsi, and Russian character input
- Ethernet and USB ports for data transfer and system updates
- Multiple print modes including high-speed and graphic output
- Built-in logo and graphic editing software
- Optional encoder, photo sensor, and alarm system integration
Industrial Inkjet Printer
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In UAE factories and warehouses, the printer is installed inline on conveyors to mark expiry dates, batch codes, and traceability data without stopping production. Facilities in Dubai and Sharjah often use it on flexible packaging, cartons, and bottles where high line speed and frequent product changeovers are common.
Yes. The system supports stable coding at speeds up to 300 m/min when configured correctly. Encoder feedback allows print compensation if conveyor speed fluctuates, which is important in UAE logistics operations handling variable throughput during peak dispatch cycles.
Heat, dust, and extended operating hours are common factors. Proper ventilation, routine filter replacement, and correct ink selection help maintain performance. Many UAE facilities run the printer continuously across long shifts, making preventive maintenance schedules essential.
The printer connects easily with conveyors, form-fill-seal machines, and checkweighers using photo sensors and encoders. Integration is straightforward in UAE plants where multiple machines operate in sequence, allowing synchronized printing without manual triggering.
Daily checks usually include nozzle inspection, ink level monitoring, and basic cleaning. Periodic filter changes and software alerts help avoid unplanned downtime. These routines fit well into UAE factory maintenance practices that emphasize uptime consistency.
