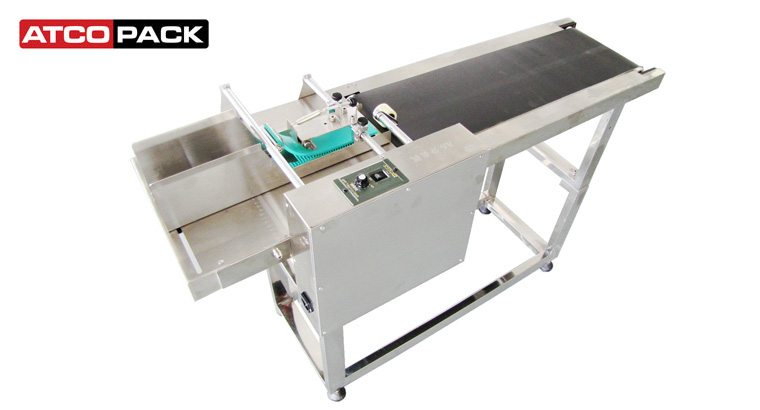

CIJ Auto Paging Machine
The CIJ Auto Paging Machine is a feeding and separation unit used before Continuous Inkjet coding systems to automatically separate flat products such as pouches, labels, cartons, or sachets for marking or printing. It supports consistent product presentation to the CIJ printer in high-speed packaging and production lines. The machine handles items ranging from 40–320 mm in length and 60–280 mm in width, with adjustable thickness from 0.5–5 mm. This equipment is widely applied in manufacturing and packaging facilities across the UAE, GCC, Middle East, and MEA industrial sectors.
Flat items such as sachets, labels, cartons, and flexible packaging materials are loaded into the feed tray. A controlled friction belt mechanism separates each piece and moves it along the conveyor where coding or marking is performed. Electronic stepless speed adjustment allows operators to match the paging speed with upstream filling or packaging equipment.
The unit processes products with lengths between 40–320 mm and widths from 60–280 mm while accommodating thickness up to 5 mm. Automatic paging rates can reach 60–600 pieces per minute depending on product material and layout.
Packaging plants and logistics labeling facilities in Dubai and Sharjah frequently integrate this equipment within CIJ coding stations for pharmaceutical packs, food pouches, labeling operations, and consumer goods packaging where continuous printing accuracy and product flow stability are required.
Technical Specifications
| Power Supply | AC220V+/-10% |
| Power | 120W |
| Size of object to be separated | length: 40-320mm width: 60-280mm thickness: 0.5-5mm(adjustable) |
| Outside size | 1250X410X860mm |
Key Features
- Electronic stepless speed control allowing synchronization with CIJ printing systems
- Automatic paging capability ranging from 60 to 600 pieces per minute
- Adjustable feeding structure suitable for flat products from 40–320 mm length
- Compatible with materials up to 60–280 mm width and 0.5–5 mm thickness
- Friction belt separation mechanism designed for stable product spacing
- Compact frame construction suitable for integration with coding stations
- Optional automatic receiving unit for organized product collection
- External signal interface available for counting and shutdown control
- Modular mechanical components allowing quick replacement of wear parts
CIJ Auto Paging Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
A CIJ Auto Paging Machine separates stacked flat products and feeds them individually into a Continuous InkJet printing zone. This ensures consistent spacing between items so that production date codes, batch numbers, or traceability information can be printed accurately. Facilities in Dubai and Sharjah commonly use paging units to stabilize product flow before CIJ marking.
The machine is typically used for flat items such as flexible pouches, labels, folded cartons, sachets, instruction leaflets, and plastic bags. These materials must fall within the size range supported by the equipment. Packaging and logistics operations across the UAE frequently use this system when coding products before packing or distribution.
Continuous InkJet printers require stable product movement and controlled spacing. The paging machine separates stacked materials and maintains uniform distance between items. This prevents overlapping products and inconsistent print positions. In high-throughput packaging lines across the GCC region, controlled product flow significantly improves print readability and coding reliability.
Typical operating speed ranges between 60 and 600 pieces per minute depending on product size, material friction, and conveyor configuration. Operators can adjust speed electronically to synchronize with upstream or downstream equipment. This flexibility allows the machine to operate efficiently in medium or high-speed packaging environments.
The paging unit is positioned upstream of the Continuous InkJet printer. After separation, products move along a conveyor where the CIJ printhead applies codes during motion. Integration normally includes speed synchronization and optional sensor signals to ensure the printing system triggers at the correct position.
Maintenance generally involves cleaning the friction belts, inspecting rollers, checking mechanical alignment, and verifying feed tray adjustments. Wear components such as separation belts may require periodic replacement depending on operating hours and product material. Regular inspection helps maintain stable separation and prevents product jams during continuous operation.
