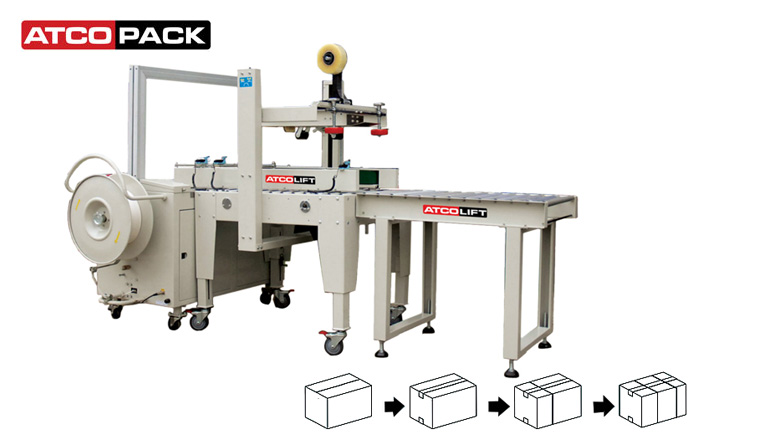

Auto Carton Sealer + 1 Strapping Machine
The Auto Carton Sealer + 1 Strapping Machine is an integrated end-of-line system designed to seal and strap cartons in a continuous flow. It is commonly used in warehouses, assembly units, and distribution centers where cartons are packed manually before reinforcement. The system supports stable carton handling with a working table height of around 750 mm and accommodates defined carton size ranges. This Auto Carton Sealer Strapping Machine is suitable for operations across the UAE, GCC, and MEA where consistent carton closure is required.
In warehouse and light manufacturing environments across Dubai and Abu Dhabi, cartons are fed onto the roller conveyor and guided through the sealing unit, which applies adhesive tape to close top and bottom flaps. Once sealed, the carton moves directly into the strapping machine, where a plastic strap is applied to reinforce box integrity and maintain shape during stacking.
The system supports steady throughput suitable for small to mid-volume operations and works best with uniform carton dimensions. Its compact footprint allows installation in space-constrained packing areas. Designed for indoor industrial use, the machine integrates easily with existing conveyors and manual packing workflows common in UAE facilities.
Technical Specifications
| Product Code | APXFK-1C |
| Productive Capacity (pcs/h) | 600 |
| Speed (m/min) | 16 |
| Height of Table (mm) | 750 |
| Adhesive Tape (mm) | BOPP、PVC Adhesive tape，width48, 60, 76mm (optional) |
| Available Strapping Belt (mm) | plastic strapping belt，width9~15 thickness0.5~1.1 |
| Max. Carton Size (L×W×H) (mm) | 600×500×500 |
| Min. Carton Size (L×W×H) (mm) | 300×130×180 |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Gross Power (W) | 1050 |
| External Dimensions (L×W×H) (mm) | 2650×1420×1565 |
Key Features
- Automatic top and bottom carton sealing unit
- Single automatic strapping machine for carton reinforcement
- Roller conveyor for guided carton transfer
- Working table height suitable for manual packing lines
- Compatible with standard adhesive tapes and plastic straps
- Designed for uniform carton size operations
- Compact layout for limited warehouse space
- Independent operation of sealing or strapping units
Auto Carton Sealer + 1 Strapping Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
What type of UAE warehouse operations commonly use an auto carton sealer with one strapping machine?
This system is commonly used in UAE warehouses where cartons are packed manually and require basic reinforcement before palletizing. Facilities in Dubai and Abu Dhabi often deploy it in FMCG, spare parts, and e-commerce dispatch areas where carton sizes are stable and throughput is moderate.
One strap provides sufficient reinforcement for cartons with regular loads, preventing flap opening and box deformation. In UAE distribution operations, this is typically adequate for palletized shipments moving within the GCC or between regional warehouses.
Yes, the machine is designed to integrate easily with standard roller conveyors. Many UAE facilities connect it directly after manual packing or weighing stations without requiring complex electrical or PLC integration.
The system performs best when carton dimensions remain consistent during a production run. UAE warehouses handling multiple SKUs usually plan batch-wise packing to minimize mechanical adjustments and maintain steady output.
Routine maintenance includes checking tape heads, strap tension, conveyor rollers, and basic electrical connections. Regular cleaning and inspection align well with preventive maintenance practices followed in UAE logistics and industrial facilities.
