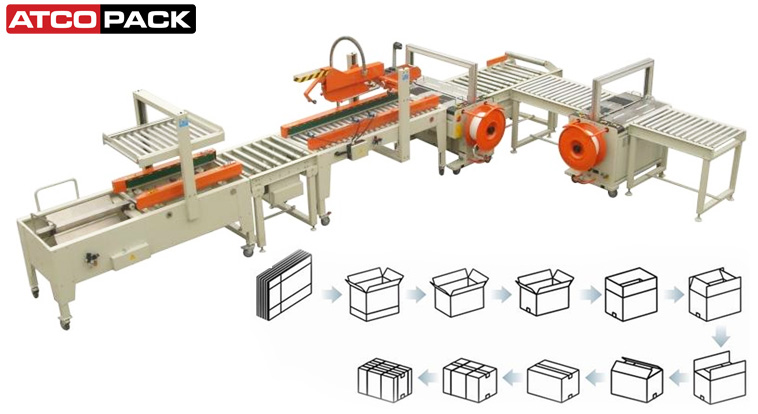

Automatic Carton Sealer + 2 Strapping Machines
The Automatic Carton Sealer + 2 Strapping Machines is an integrated end-of-line packing system designed to seal and strap cartons in a continuous process. It is typically installed in warehouses, manufacturing units, and distribution centers where uniform carton sizes are handled. The system supports a productive output of up to 600 cartons per hour and accommodates carton sizes up to 500 × 400 × 450 mm. This solution is widely applied across the UAE, GCC, and MEA to improve carton stability before storage or dispatch.
In warehouse and manufacturing environments across Dubai and Sharjah, this system is commonly positioned at the end of packing lines where carton dimensions remain relatively consistent. The integrated conveyor layout allows cartons to move smoothly between sealing and strapping stages without manual repositioning.
The line operates at a conveyor speed of 16 m/min and supports carton sizes ranging from 180 × 260 × 130 mm to 500 × 400 × 450 mm. The working table height of 750 mm allows compatibility with standard packing stations. Designed for continuous industrial use, the system integrates well into automated and semi-automated workflows commonly used in UAE logistics and manufacturing facilities.
Technical Specifications
| Product Code | APXFK-3 |
| Productive Capacity (pcs/h) | 600 |
| Speed (m/min) | 16 |
| Height of Table (mm) | 750 |
| Adhesive Tape (mm) | BOPP; PVC Adhesive tape，width 48 60; 76mm |
| Available Strapping Belt (mm) | plastic strapping belt, width9~15; thickness0.5~1.1 |
| Max. Carton Size (L×W×H) (mm) | 500×400×450 |
| Min. Carton Size (L×W×H) (mm) | 180×260×130 |
| Voltage (V/Hz) | AC 220/50 1p or 380/50 3P |
| Gross Power (W) | 4100 |
| Air Compressor (Mpa) | 0.5-0.6 |
| External Dimensions (L×W×H) (mm) | "L" Type 7850×3500×1700 |
Key Features
- Integrated carton sealing and dual strapping line
- Automatic top and bottom tape sealing process
- Dual strapping stations for improved carton stability
- Conveyor speed up to 16 m/min
- Supports carton sizes from 180 × 260 × 130 mm to 500 × 400 × 450 mm
- Standard working height of 750 mm
- Compatible with BOPP and PVC adhesive tapes
- Designed for continuous end-of-line operation
Automatic Carton Sealer + 2 Strapping Machines
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
This system is best suited for UAE warehouses and manufacturing units handling uniform carton sizes in continuous flows. Facilities in Dubai and Sharjah commonly use it in FMCG, electronics, and spare parts distribution where cartons require both sealing and reinforced strapping before palletizing or dispatch.
The cartons are first sealed on top and bottom to secure flaps, then transferred to two strapping stations that apply straps in sequence. This process improves box rigidity and prevents deformation during stacking, which is critical for long-distance transport across the GCC and MEA.
The system supports a defined carton size range and works best when size changes are infrequent. In UAE facilities with stable carton formats per shift, manual size adjustment is manageable, but frequent size variation may reduce overall throughput efficiency.
Under normal operating conditions, the line processes up to 600 cartons per hour. Actual output in UAE warehouses depends on carton consistency, operator loading rhythm, and upstream packing speed rather than conveyor or strapping limitations.
Routine maintenance includes checking tape heads, strapping tension units, conveyor rollers, and pneumatic connections. Regular cleaning and lubrication align well with preventive maintenance schedules followed in large UAE logistics and industrial facilities.
