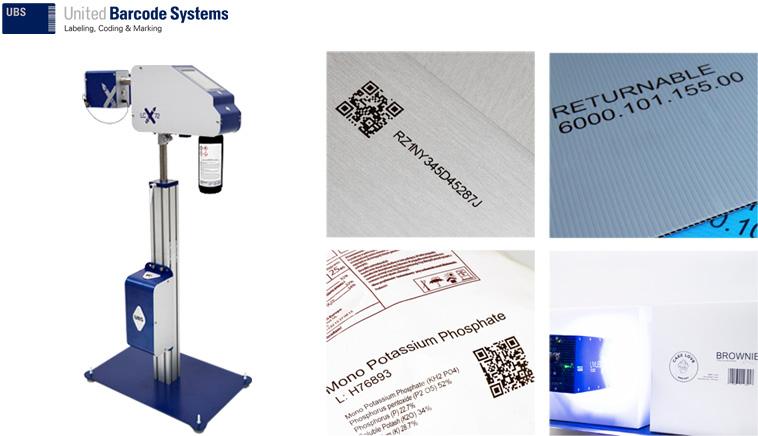

APLINK LCX UV LED High Resolution InkJet Printer
The APLINK LCX UV LED High Resolution InkJet Printer is a fixed coding system designed for secondary packaging identification in factories, warehouses, and logistics operations. It supports direct marking on porous and non-porous case surfaces using UV LED curing. The system operates reliably at line speeds up to 50 m/min and allows print heights up to 72 mm. Across the UAE, GCC, and wider MEA region, the UV LED High Resolution InkJet Printer is applied where instant curing, clean handling, and stable code quality are required for carton and case coding.
In facilities operating in Dubai and Sharjah, the printer is typically integrated downstream of case erectors or sealing stations. The UV LED curing system enables immediate ink fixation on coated cartons, laminated cases, and mixed substrates without waiting time. Print resolution up to 360 dpi supports readable text, barcodes, and variable data such as batch references and date fields.
The system handles printing speeds up to 50 m/min while maintaining consistent dot placement at a maximum head distance of 5 mm. Flexible head orientation allows vertical, horizontal, or angled installation depending on line layout. USB and Ethernet connectivity support message control through local networks or standalone operation, aligning well with UAE warehouse automation and ERP-linked production environments.
Technical Specifications
| Product Code | APLINK LCX UVLED |
| Technical features | |
| DESCRIPTION | High Resolution Inkjet Printer |
| POWER SUPPLY | External module INPUT 110v / 240v I 50-60Hz I 15W |
| MESURES | 618mm x 140mm x 223mm |
| Consumable | |
| INK | Low Migration UV LED curable ink |
| COLORS | Black, other colors under request |
| INK BOTTLE | 1000 ml and 500 ml Bottle |
| PRINTING SURFACE | Any type of surface |
| Printing module features | |
| PRINTING HEIGHT | Print head 17mm (0,67 in) Print head 72 mm (2,76 in) |
| PRINTING SPEED | Up to 50 m/min (164 ft/min) |
| RESOLUTION (vertical / horizontal) | 180 dpi / up to 360 dpi |
| CAPACITY (CPM) | Up to 2 printouts per second |
| PRINTING DISTANCE (between print head and surface) | Max 5 mm (0,2 in) |
| PRINT HEAD WORKING POSITION | Vertical, horizontal, tilted up to 90° |
| DISPLAY | 5.7” touch screen (VERTICAL) (640x480px) |
| CONNECTIVITY | 1 USB 2.0, 1 Ethernet 10 / 100 / 1000 |
| LABEL DESIGN SOFTWARE | UBS Designer Lite y UBS Designer Pro |
| BARCODES | DUN14, EAN 8, EAN13, EAN 128, CODE 19, CODE 128, 2/5 INDUSTRIAL, 2/5 INTERLEAVED, DATAMATRIX, QR, etc… |
| DATA | Barcodes, fixed and variable (date, counters, batch etc.), formulas, logos, graphics, images etc |
| LANGUAGE | Supports symbiology like Cyrillic, Japanese, Chinese, Korean, Hebrew, etc. |
| OPTIONS & ACCESORIES | External encoder kit, light siganl beacon, RS232, stand |
| UVLED Curing System features | |
| CURING AREA | 17 x 30 mm 72 x 30 mm |
| COOLING SYSTEM | By air |
| DURABILITY | >20000 Hours |
| Connections | ETHERNET, USB |
Key Features
- UV LED curing system for immediate ink fixation on mixed surfaces
- Supports print heights of 17 mm or 72 mm using interchangeable heads
- Operating speed up to 50 m/min for continuous conveyor lines
- Resolution up to 180 × 360 dpi for readable codes and symbols
- Print head positioning supports vertical, horizontal, or angled layouts
- Low migration UV curable inks suitable for secondary packaging
- USB and Ethernet interfaces for line integration or standalone use
- 5.7-inch touch interface for job selection and system control
APLINK LCX UV LED High Resolution InkJet Printer
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The printer is designed for both porous and non-porous secondary packaging, including coated cartons, laminated cases, and printed cardboard. In UAE operations such as Dubai or Sharjah distribution centers, this allows direct coding on export-ready cases without surface pre-treatment, thanks to UV LED curing that fixes ink instantly on contact.
UV LED curing eliminates drying time, so cartons can move immediately to sorting, stacking, or palletizing. In high-mix warehouse environments common across the UAE, this prevents smudging during manual handling or conveyor transfers and helps maintain steady throughput without adding buffer zones or extra conveyors.
Yes. The system supports fixed and variable data such as batch numbers, dates, counters, QR codes, and GS1 barcodes. This is commonly used in UAE manufacturing and logistics operations that supply GCC, Africa, or MEA markets where traceability and barcode readability are mandatory.
The print head can be mounted vertically, horizontally, or angled up to 90 degrees, allowing installation on side or top of cases. This flexibility supports compact conveyor layouts often found in Sharjah factories or multi-line packing areas in Dubai logistics hubs.
The system is designed for low routine maintenance, with no daily servicing required. Periodic checks focus on print head cleanliness, UV LED condition, and ink supply. Air-cooled curing avoids complex thermal systems, which suits continuous operation in warm warehouse environments common across the UAE.
