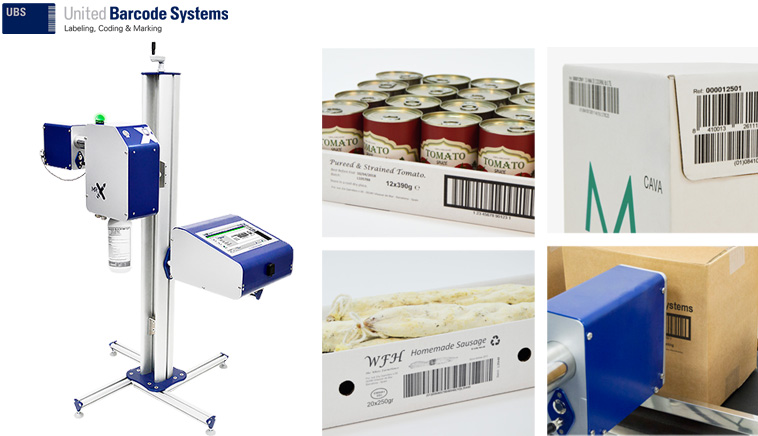

APLINK MRX Series High Resolution Inkjet Printer
The APLINK MRX Series High Resolution Inkjet Printer is an industrial case coding system designed for secondary packaging identification in warehouses, factories, and logistics lines across the UAE and wider GCC. It supports clear printing of text, barcodes, and GS1-compliant data on porous materials such as cartons and trays. With printing speeds reaching 110 m/min and a maximum print height of 72 mm, it meets high-throughput case coding requirements in MEA industrial environments. The MRX High Resolution Inkjet Printer is commonly used where consistency, traceability, and line reliability are essential.
In UAE production facilities and distribution centers in Dubai and Abu Dhabi, the system integrates directly with ERP and WMS platforms through Ethernet or USB communication. It supports variable data printing such as batch numbers, expiry dates, counters, GS1 barcodes, logos, and images without interrupting line movement.
The printer operates with up to four independent printheads, all controlled from a single 10.1-inch full-color touchscreen, allowing flexible layout control across multiple sides of a carton. Printing resolution ranges from 180 dpi up to 720 dpi, ensuring barcode readability even at higher conveyor speeds.
Designed for industrial environments, the MRX handles working temperatures from +5°C to +50°C and humidity levels up to 85% non-condensed, making it suitable for UAE warehouses and regional logistics hubs. Oil-based, mineral-oil-free ink ensures fast drying and minimal maintenance during long production cycles.
Technical Specifications
| Product Code | APLINK MRX |
| Technical features | |
| DESCRIPTION | High Resolution Inkjet Printer |
| POWER SUPPLY | 110 / 240V 50-60Hz - 21 W (1 printer) / 37 W (2 printers) |
| FLOOR STAND HEIGHT | Min. 515 mm - max 1290 mm (min 1,7 ft - max 4,2 ft) |
| WORKING TEMPERATURE | From +5° C up to +50°C (+ 41°F up to +122 °F) |
| HUMIDITY | From 5% up to 85% non-condensed |
| Consumable | |
| INK | Oil based ink, 100% Mineral oil free |
| COLORS | Black. Other under request. |
| VOLUME | 1000 / 500 ml ink bottle |
| PRINTABLE MATERIAL | Any type of surface |
| Printing module features | |
| PRINTING HEIGHT | 72 mm (2.83”) |
| PRINTING SPEED | Up to 110 m / min (361 ft/min) |
| RESOLUTION (vertical / horizontal) | 180 dpi / up to 720 dpi |
| PRINTING CAPACITY | Up to 2 prints per second |
| DISTANCE (between print head and surface) | Max 5 mm (0.2”) |
| BARCODES | GTIN13, GTIN14, GS1 DATAMATRIX, GS1-128, CODE 39, 2/5 INTERLEAVED, QR, PDF417, etc. |
| DATA | Fixed or variable text (BB date, counters,Batch Number formulas...etc.) logos, images.. |
| PRINTHEAD POSITION | Side, Top, tilted up to 90° |
| OPTIONS & ACCESORIES | External encoder kit, light beacon alarm, Low temperature kit. |
| Controller features | |
| DISPLAY | 10.1” Full color Touch Screen |
| PRINT HEADS CONTROL | Up to 4 print heads |
| COMMUNICATIONS | 1 x USB 2.0, 1 x Ethernet 10 / 100 / 1000 |
| Connections | ETHERNET, USB |
Key Features
- Supports up to four independently controlled printheads
- Printing speed up to 110 m/min for high-throughput lines
- Maximum print height of 72 mm for large case markings
- Resolution range from 180 dpi to 720 dpi
- Compatible with GS1 barcodes including GTIN, GS1-128, and DataMatrix
- Oil-based, mineral-oil-free ink suitable for porous surfaces
- 10.1-inch full-color touchscreen for centralized control
- Ethernet and USB connectivity for ERP and database integration
- Side, top, or tilted printhead mounting up to 90°
APLINK MRX Series High Resolution Inkjet Printer
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The APLINK MRX is commonly used for coding corrugated cartons, cardboard trays, and paper-based secondary packs in UAE warehouses and factories. It is well suited for porous surfaces found in FMCG, food distribution, and logistics hubs operating around Dubai and Abu Dhabi, where clear batch and barcode identification is required.
The printer supports conveyor speeds of up to 110 m/min while maintaining barcode clarity. This allows it to operate reliably on fast-moving case packing lines without slowing throughput, which is essential in large UAE logistics operations handling regional and export volumes across the GCC and Africa.
Yes. Up to four printheads can be controlled from a single 10.1-inch touchscreen. Each head can run independent jobs, reducing setup time and operator intervention. This is practical in UAE plants where multiple carton faces need coding within limited line space.
The MRX uses a non-pressurized, oil-based ink system that minimizes daily maintenance. Regular visual checks and scheduled annual servicing are typically sufficient. This approach suits UAE facilities that operate extended shifts and aim to reduce unplanned downtime.
The system connects via Ethernet or USB, allowing data exchange with ERP or WMS platforms. Variable data such as batch numbers or dates can be sent directly to the printer, which is useful for centralized operations in Dubai or Sharjah distribution environments.
