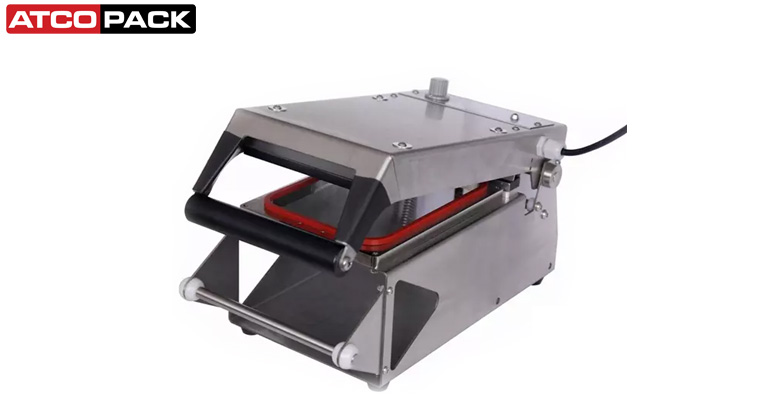

2 Sides Film Cut Manual Tray Sealer
The 2 Sides Film Cut Manual Tray Sealer is a compact, manually operated sealing unit designed for consistent tray sealing in food packaging environments. It is commonly used in commercial kitchens, small factories, and packing areas that require controlled sealing without conveyor automation. The machine supports an output of up to 450 trays per hour and accommodates mould heights up to 110 mm, making it suitable for varied tray formats. This solution is widely applied across the UAE, GCC, and wider Middle East food handling sector where space efficiency and operational control are critical.
The unit operates at adjustable sealing temperatures up to 240°C, enabling compatibility with different tray and film material combinations. It delivers a stable output rate of approximately 450 trays per hour, depending on operator handling and tray dimensions. Moulds are interchangeable as long as tray dimensions remain within the maximum mould size, and a single mould can handle trays of varying heights up to 110 mm when length and width remain constant.
The two-side film cutting mechanism trims excess film on fixed sides after sealing. Remaining edges may require manual trimming depending on film width selection. The machine integrates easily into tabletop or standalone workstations and is commonly positioned downstream of filling or portioning stations in compact UAE food processing workflows.
Technical Specifications
| Product Code | AHTS-175 | AHTS-225 |
| Output (Trays/h) | 450 | 450 |
| Sealing Temperature | 0～240℃ | 0～240℃ |
| Voltage | 220V/50HZ | 220V/50HZ |
| Power(KW) | 500 | 500 |
| Weight(kg) | 7 | 8.7 |
| External Dimension(mm) | 380×175×210 | 440×208×215 |
| Max. mould size L×W | 195×136 | 226×166 |
| Sealing Depth (mm) | H≤110 | H≤110 |
Key Features
- Manual heat sealing operation for controlled tray handling
- Two-side integrated film cutting after sealing
- Output capacity up to 450 trays per hour
- Supports mould heights up to 110 mm
- Interchangeable moulds within maximum size limits
- Adjustable sealing temperature up to 240°C
- Compatible with PE, PET, PVC, EHE, and composite films
- Standalone tabletop installation without conveyor systems
Note:
- Manual tray sealing for controlled batch operation
- Two-side film cutting integrated after sealing
- Output capacity up to 450 trays per hour
- Supports tray heights up to 110 mm
- Interchangeable moulds within machine size limits
- Sealing temperature adjustable up to 240 °C
- Compatible with PE, PET, PVC, and laminated films
- Compact design suitable for limited packing space
2 Sides Film Cut Manual Tray Sealer
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
This machine is widely used in catering kitchens, chilled food prep units, and small processing facilities across Dubai and Sharjah. It suits operations handling ready meals, cut vegetables, meat portions, and bakery items where manual control, limited space, and consistent sealing are more important than full automation.
The built-in cutter trims film on two fixed sides after sealing, reducing excess material. The remaining edges depend on film width selection and may require manual trimming. In UAE food facilities, operators usually adjust film width during setup to minimize secondary cutting and maintain clean pack presentation.
The sealer supports trays within the maximum mould footprint, with sealing depths up to 110 mm. A single mould can handle different tray heights if length and width remain unchanged, which is useful for UAE kitchens packing multiple portion sizes using the same tray format.
It is typically positioned after manual filling and before secondary packing or labeling. In compact UAE food operations, it works as a standalone station without conveyors, allowing operators to control sealing pace while maintaining alignment with upstream preparation activities.
Maintenance mainly involves cleaning the sealing plate, checking heater elements, and inspecting cutting blades. In warm GCC environments, regular surface cleaning and temperature checks help maintain seal consistency and prevent residue buildup during extended daily operation.
