Un-even Surface Printer

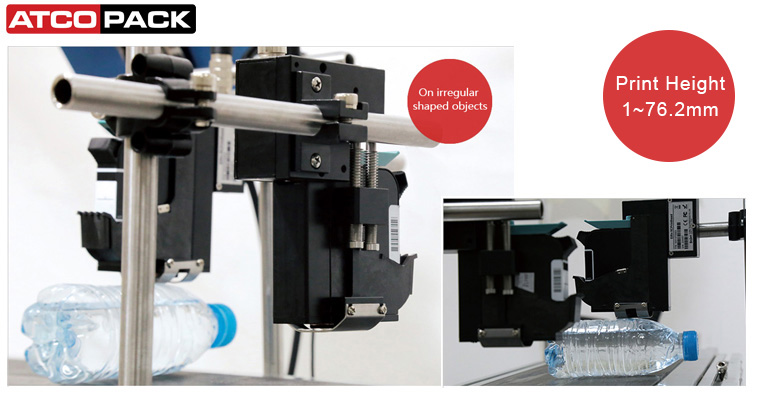

The Un-even Surface Printer is a thermal inkjet system engineered for reliable coding on curved, irregular, and non-flat products. It is commonly used in factories, warehouses, and logistics operations across the UAE and wider GCC and MEA region where standard flat-surface printers are unsuitable. The Un-even Surface Printer supports adjustable printable heights up to 76.2 mm and controlled line speeds aligned with conveyor movement, enabling clear marking on bottles, containers, and uneven packaging surfaces.
In UAE industrial environments such as packaging plants in Dubai and bottling or assembly facilities in Abu Dhabi, this printer is installed on conveyor systems handling bottles, shaped containers, and irregular packages. The controller operates independently without requiring continuous PC connection, supporting stable operation in warehouse and factory conditions.
Printable height ranges from 1 mm to 76.2 mm, with resolution selectable between 50 and 600 DPI based on clarity and speed requirements. Printing speeds reach up to 60 m/min at 300 DPI or 30 m/min at 600 DPI. Conveyor speed can be manually set, auto-calculated, or synchronized using external encoders. The printer supports variable data, serial numbering, barcodes, QR codes, and date formats. Automatic ink identification and consumption monitoring help maintain consistent output during extended shifts common in UAE industrial workflows.
Technical Specifications
| Product Code | E6C |
| Specification | Controller: 210*135*37mm (H*W*D) / 8.3*5.3*1.46 inch Printhead: 126*100*31mm (H*W*D) / 4.9*3.9*1.2 inch |
| Language | Arabic, English, Japanese, French, German, Spanish, Portuguese and Russian |
| Resolution | 50~600DPI |
| Counters | Can be set in Series No, Carton No, Pallet No, etc |
| Printable heights (mm) | 1~76.2mm |
| Printing speed | 0-60 m/min (300 DPI); 0-30 m/min(600 DPI) |
| Conveyor speed | Can be set, auto-calculated or use external synchronizer |
| Barcode | UPCA，UPCE，EAN13，EAN8，INT25，CODE39，CODE128，EAN128， PDF417，DATAMATRIX，QR |
| Date format | Production date, expiry date with several formats for option |
| User management | 3 level operating authorization (operator, technician, administrator) |
| Database | PC software supports MS Excel, MS Access, SQL2000, SQL2005, SQL2008 etc. database formats |
| Data Source | Standard RS-232 and ethernet port, easy for integration |
| Screen | 1) 7 inch 800*480 resolution color LCD touch screen 2) Brand new operation interface, easy to learn and operate 3) Printer can work independently without PC software |
| Port | 1) Ethernet: support PC software communication protocol SDK. 2) USB2.0: Support U-Disk 3) DB15: For external devices like photocell, synchronizer or alarm kit |
| Ink management | Identify ink type automatically and use the best printing parameters Original HP ink cartridge guaranteed Automatic measuring system for ink consumption |
| Power Supply | AC 100V-240V/50-60HZ, 90W (Dedicated AC adaptor) |
| Certificate | CE, FCC |
Key Features
- Designed for printing on curved and irregular surfaces
- Adjustable printable height up to 76.2 mm
- Resolution range from 50 to 600 DPI
- Standalone controller with touch screen operation
- Encoder and sensor-based conveyor synchronization
- Supports barcodes, QR codes, and variable data
- Automatic ink type recognition and monitoring
- Multiple industrial communication interfaces
Un-even Surface Printer
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
The printer uses adjustable mounting brackets and synchronized triggering to maintain a stable nozzle-to-surface distance. In UAE packaging lines handling bottles or shaped containers, this setup helps maintain consistent ink placement despite surface curvature, reducing distortion and incomplete characters during continuous conveyor movement.
Yes. The system is commonly used in UAE warehouses where different product shapes run on the same conveyor. Adjustable print height up to 76.2 mm and encoder-based synchronization allow operators to switch between packaging formats without major mechanical changes.
In typical UAE manufacturing environments, the printer supports up to 60 m/min at 300 DPI and up to 30 m/min at 600 DPI. Conveyor speed can be manually set, auto-calculated, or synchronized using an external encoder for consistent output.
No. The controller operates independently using a built-in touch screen. In facilities across Dubai or Abu Dhabi, this reduces system complexity and improves uptime, especially in environments where PC access near the production line is limited.
Routine tasks include nozzle cleaning, ink cartridge inspection, and bracket alignment checks. In UAE industrial conditions with extended operating hours, scheduled cleaning and ink monitoring help prevent print degradation and unplanned downtime.
