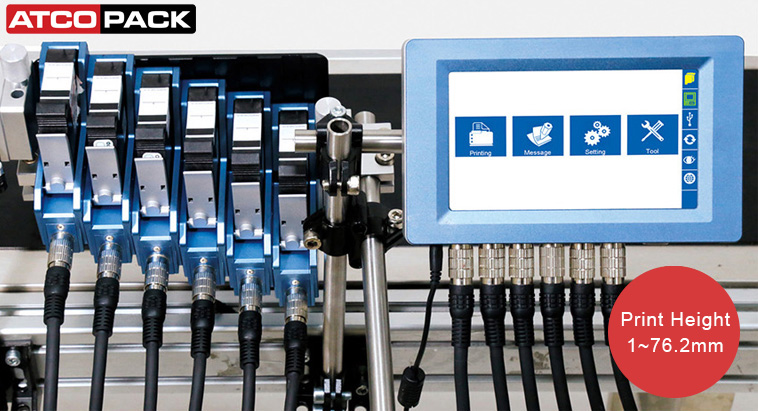

High Resolution TIJ Printer upto 6 Heads
The High Resolution TIJ Printer upto 6 Heads is an industrial thermal inkjet coding system designed for large-format, high-visibility printing across packaging and logistics lines. It is commonly used in factories, warehouses, and distribution operations across the UAE, GCC, and MEA region where extended print height and clarity are required. The 6 Heads Inkjet Printer supports combined printable heights up to 76.2 mm and controlled line speeds suitable for carton, case, and pallet coding in demanding production environments.

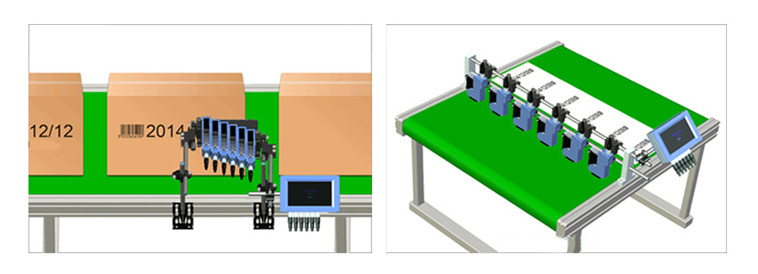

In UAE industrial facilities such as manufacturing units in Dubai and logistics centers in Abu Dhabi, the printer is integrated into conveyor-based lines handling cartons and master cases. The standalone controller operates without PC dependency, enabling stable production even in high-throughput warehouse environments.
Printable height ranges from 1 mm to 76.2 mm using combined head configurations. Resolution can be set between 50 and 600 DPI, with printing speeds reaching up to 60 m/min at 300 DPI or 30 m/min at 600 DPI. Conveyor speed can be manually defined, auto-calculated, or synchronized using encoders. The system supports variable data, serial numbering, pallet counters, barcodes, and QR codes. Automatic ink identification and consumption monitoring help maintain consistent output across long operating shifts common in UAE industrial operations.
Technical Specifications
| Specification | Controller: 210*135*37mm (H*W*D) / 8.3*5.3*1.46 inch Printhead: 126*100*31mm (H*W*D) / 4.9*3.9*1.2 inch |
| Language | Arabic, English, German, Japanese, French, Spanish, Portuguese and Russian |
| Resolution | 50~600DPI |
| Counters | Can be set in Series No., Carton No., Pallet No., etc |
| Printable heights (mm) | 1~76.2mm |
| Printing speed | 0-60 m/min (300 DPI) 0-30 m/min(600 DPI) |
| Conveyor speed | Can be set, auto-calculated or use external synchronizer |
| Barcode | UPCA，UPCE，EAN13，EAN8，INT25，CODE39，CODE128，EAN128， PDF417，DATAMATRIX，QR |
| Date format | Production date, expiry date with several formats for option |
| User management | 3 level operating authorization (operator, technician, administrator) |
| Database | PC software supports MS Excel, MS Access, SQL2000, SQL2005, SQL2008 etc. database formats |
| Data Source | Standard RS-232 and ethernet port, easy for integration |
| Screen | 1) 7 inch 800*480 resolution color LCD touch screen 2) Brand new operation interface, easy to learn and operate 3) Printer can work independently without PC software |
| Port | 1. Ethernet: support PC software communication protocol SDK 2. USB2.0: Support U-Disk 3. DB15: For external devices like photocell, synchronizer or alarm kit |
| Ink management | Identify ink type automatically and use the best printing parameters Original HP ink cartridge guaranteed Automatic measuring system for ink consumption |
| Installation | Standard side printing, down printing bracket and anti-shock bracket, users can install according to their needs; spring mechanism is optional |
| Power Supply | AC 100V-240V/50-60HZ, 90W (Dedicated AC adaptor) |
| Certificate | CE, FCC |

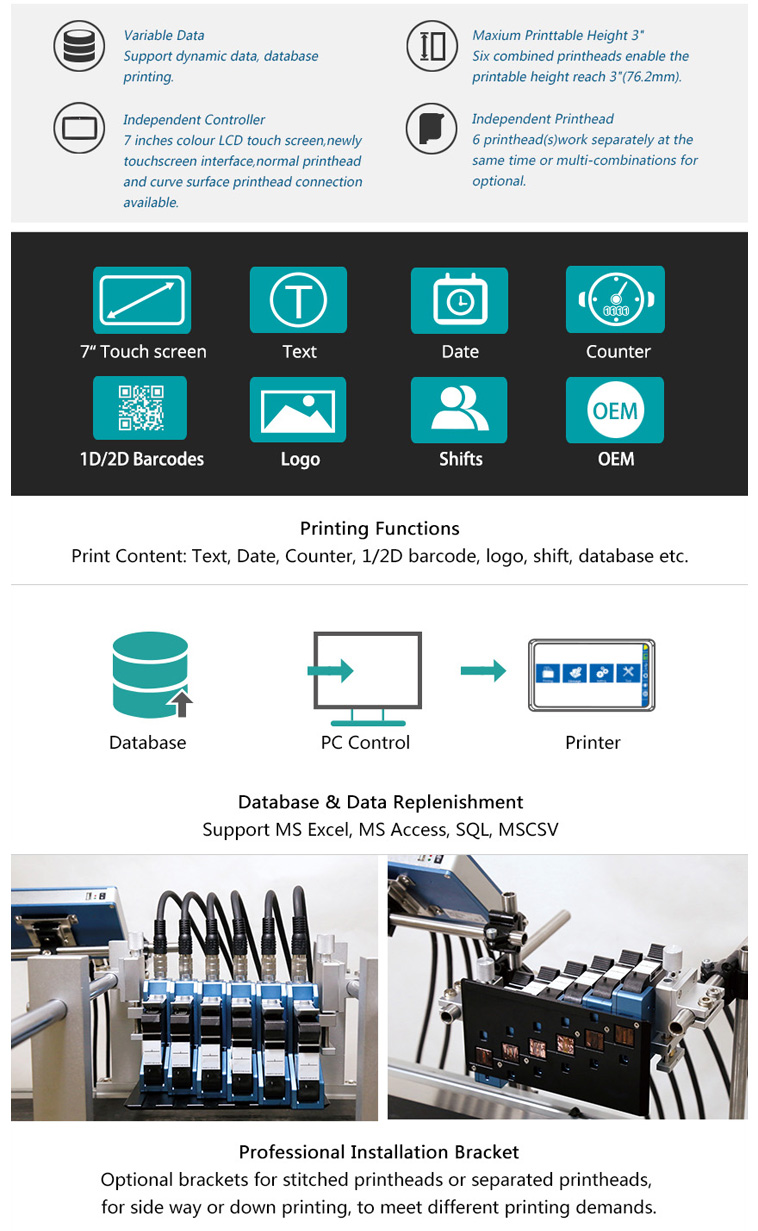

Key Features
- Expandable TIJ system supporting up to six print heads
- Maximum combined printable height up to 76.2 mm
- Resolution adjustment from 50 to 600 DPI
- Standalone controller with 7-inch LCD touch interface
- Encoder-based and auto-calculated conveyor speed control
- Supports serial, carton, and pallet-level coding
- Automatic ink recognition and consumption measurement
- Multiple industrial interfaces including Ethernet and RS-232
High Resolution TIJ Printer upto 6 Heads
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
UAE factories and warehouses use 6-head TIJ printers when large print heights or wide coding areas are needed on cartons and pallets. In Dubai and Abu Dhabi operations, this is common for outer case labeling, export packaging, and logistics codes that must remain readable across handling and storage.
A 6-head configuration reduces the need for multiple passes or repositioning. UAE logistics lines benefit from printing large characters in a single conveyor pass, which supports steady throughput and minimizes manual intervention during high-volume distribution and warehouse operations.
Stable conveyor speed and minimal vibration are important. In UAE industrial environments, encoders or synchronized speed inputs are often used to maintain correct print proportions, especially when cartons of varying sizes run on the same line.
Consistency is maintained through proper head alignment, encoder feedback, and regular test prints. In Middle East production facilities, technicians usually verify alignment during setup to ensure text segments join cleanly across all six heads.
Key tasks include cleaning printhead nozzles, checking ink cartridge seating, and inspecting data cables. In dusty warehouse environments common in the GCC, routine inspections help prevent print gaps and unplanned downtime during extended shifts.
Yes, the system supports flexible head positioning and quick layout changes. UAE facilities handling mixed SKUs often adjust print height and data settings directly from the controller without mechanical changes to the conveyor line.
