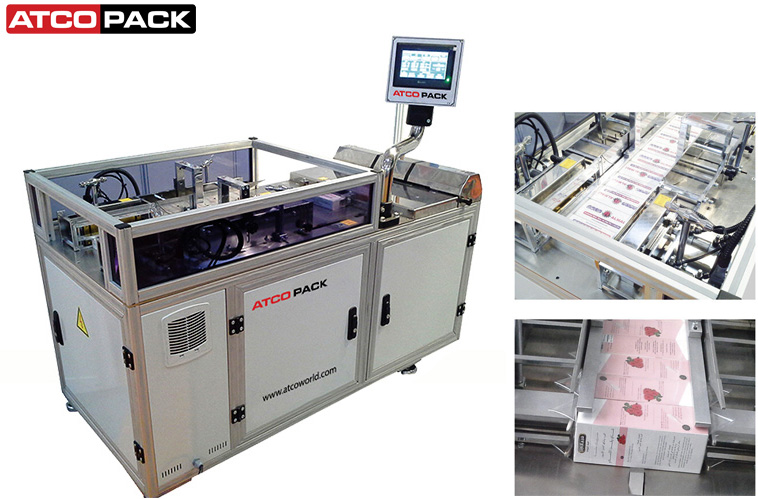

Semi Automatic Overwrapping Machine
The Semi Automatic Overwrapping Machine is designed for controlled wrapping of small to medium carton boxes using film-based overwrap. It is commonly installed in packaging rooms, factory floors, and finishing areas where product presentation and seal consistency are required. The machine supports precise box handling within defined size limits and delivers stable output for low to medium production volumes. Typical operating capacity ranges between 5 to 20 packs per minute, with box dimensions supported from 50 mm to 250 mm length, making it suitable for structured end-of-line packaging across UAE and wider GCC operations.
In UAE manufacturing and packing units across Dubai and Sharjah, this machine is typically positioned after carton forming or filling stages. Operators manually place products into the wrapping zone, after which the machine executes folding, sealing, and film cutting in a controlled sequence. The supported box range includes 50–250 mm in length, 50–150 mm width, and 30–80 mm height, allowing flexibility across cosmetic, pharmaceutical, and FMCG cartons.
The structure is engineered for stable floor mounting and continuous operation within condensation-free environments. Size changeovers are managed through the touch interface, reducing mechanical adjustments. This makes the machine suitable for facilities handling frequent SKU changes without complex tooling. Across GCC and MEA packaging lines, it supports consistent wrap quality while keeping operator interaction straightforward and controlled.
Technical Specifications
| Product Code | APAW-MINI |
| Lenght (L) | Min 50 mm - Max 250 mm |
| Height (H) | Min 30 mm - Max 80 mm |
| Capacity | 5 - 20 |
| Outline Dimensions | 150 x 85 x 110 cm |
| Width (W) | Min 50 mm - Max 150 mm |
| Power | 1 KW, 1 Phase, 220 VAC |
| Weight | 350 kg |
Key Features
- PLC-based control system with touch panel interface
- Servo-driven wrapping and folding movements
- Supports carton sizes from 50 to 250 mm in length
- Stable output range of 5–20 packs per minute
- Quick size adjustment through parameter settings
- Compatible with standard overwrapping films
- Rigid frame suitable for continuous floor operation
- Manual product loading with automated wrap cycle
Semi Automatic Overwrapping Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
The machine is commonly used for rectangular cartons such as cosmetics, perfumes, pharmaceuticals, and specialty FMCG boxes. In UAE facilities around Dubai and Sharjah, it supports box lengths from 50 to 250 mm with stable wrapping for single-item cartons, not bundled packs, ensuring consistent presentation for retail and export use.
The machine is usually placed after cartoning or inspection stations. Operators manually load cartons, while wrapping, folding, and sealing are automated. This approach suits UAE factories where moderate volumes, frequent SKU changes, and controlled operator involvement are preferred over fully automated systems.
In real operating conditions, most UAE users maintain output between 10 and 18 packs per minute. Actual throughput depends on carton size changes, operator loading speed, and film handling. The machine is designed for steady, repeatable operation rather than high-speed mass production.
The machine should be installed in condensation-free environments with stable temperature control. In GCC regions, including the UAE, maintaining clean packaging rooms with controlled humidity helps protect servo drives, PLC components, and sealing accuracy during long production runs.
Daily maintenance typically includes cleaning film paths, checking sealing surfaces, and inspecting moving components. Weekly checks focus on servo alignment and sensor response. These tasks are manageable by trained operators and do not require specialized engineering intervention for routine upkeep.
