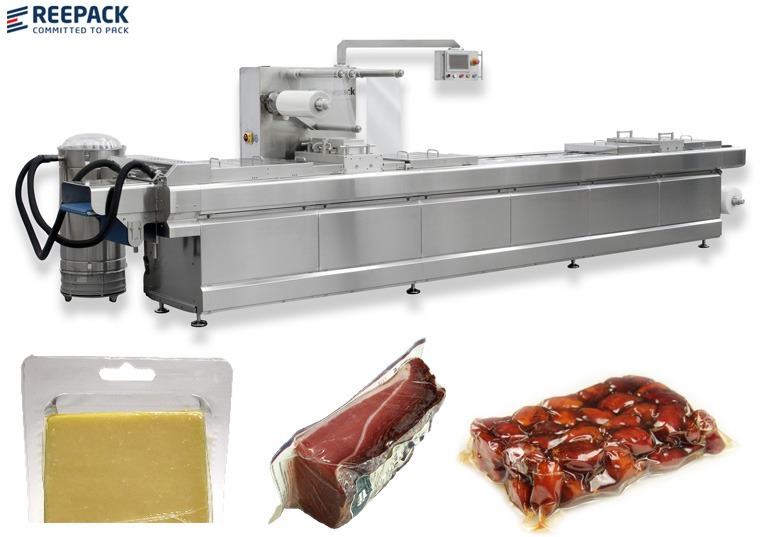

REEFORM T45 Thermoforming Machine
High-performance thermoforming machine.
REEFORM T45 Thermoforming Machine, a highly versatile solution designed to meet a wide variety of modern packaging needs.
This machine's robust frame is constructed with stainless steel, ensuring durability and easy sanitization for a hygienic packaging environment. The open boards enable convenient access to all machine parts, simplifying routine checks and maintenance. The equipment system is thoughtfully integrated into the machine frame, providing enhanced protection against potential damage.
Operating the REEFORM T45 is effortless, thanks to its user-friendly control panel. The interface introduces operators to an intuitive system, allowing for easy setting and recording of different programs. With programmable movements, the machine offers maximum flexibility, adapting to various formats and products, meeting diverse packaging requirements.
Capable of processing both flexible and rigid film, the REEFORM T45 handles thicknesses of up to 900 microns and film widths of up to 560 mm, ensuring compatibility with a wide range of packaging materials. Its thermoforming capabilities allow for trays with a maximum forming depth of 120 mm (150 mm*), and a generous cut-off length of up to 460 mm.
Machine only need air pressure for Forming and Sealing, Processing Stations are all electric in motion, so that a good saving in energy and little maintenance give a good return of the investment. NOISE FREE
Features:
REEFORM T45 Thermoforming Machine, a highly versatile solution designed to meet a wide variety of modern packaging needs.
This machine's robust frame is constructed with stainless steel, ensuring durability and easy sanitization for a hygienic packaging environment. The open boards enable convenient access to all machine parts, simplifying routine checks and maintenance. The equipment system is thoughtfully integrated into the machine frame, providing enhanced protection against potential damage.
Operating the REEFORM T45 is effortless, thanks to its user-friendly control panel. The interface introduces operators to an intuitive system, allowing for easy setting and recording of different programs. With programmable movements, the machine offers maximum flexibility, adapting to various formats and products, meeting diverse packaging requirements.
Capable of processing both flexible and rigid film, the REEFORM T45 handles thicknesses of up to 900 microns and film widths of up to 560 mm, ensuring compatibility with a wide range of packaging materials. Its thermoforming capabilities allow for trays with a maximum forming depth of 120 mm (150 mm*), and a generous cut-off length of up to 460 mm.
Machine only need air pressure for Forming and Sealing, Processing Stations are all electric in motion, so that a good saving in energy and little maintenance give a good return of the investment. NOISE FREE
Product Code | REEFORM T45 |
Machine length: | Variable According Configuration |
Machine width | Variable According Configuration |
Machine height | Variable According Configuration |
Cut-off length | up to 460 mm |
Bottom film | up to 560 mm |
Product Loading area | Variable According Configuration |
Free position | Variable According Configuration |
Thermoforming depth | Max. 130mm / Option 150 mm (Parameters may vary according to the film typology and vacuum pumps in use and supplied with the machine.) |
Machine cycle | From 8 to 12 Cycles / min.. |
Air pressure | 6 - 10 bar (800 - 1500 Nl / min.) |
Power supply | 10 - 20 Kw |
Water consumption | 80 - 120 L / h - 1,5 - 2,5 bar (18 - 22°C) |
Weight | 1500 - 2500 Kg |
- REENEXT SOFTWARE
- AIR FREE
- WATER FREE
- NOISE FREE
- STAINLESS STEEL
- USER FRIENDLY
- ECO LINE
- SANITIZING
Brand | Reepack - Italy |
