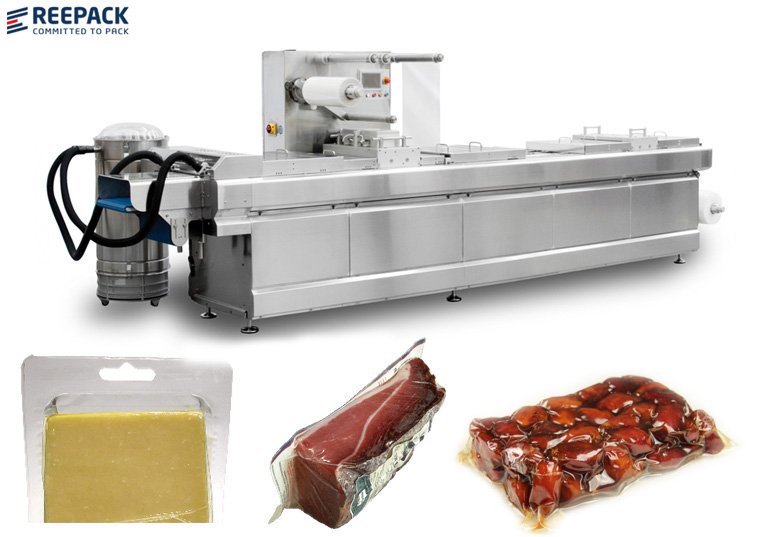

REEFORM E40 Thermoforming Machine

REEFORM E40 Thermoforming Machine Made in Italy

Compact & Flexible Thermoforming E40 for medium & high production output.

Machines frame in stainless steel for an easy sanitization in wash down environments. An open frame enables to go through all the parts of the machines for checking and maintenance. Equipment System well tidy into the machine frame and protected from any damage.

An user-friendly control panel introduce the operators with an easy setting and recording of different programs, programmable movements result in a maximum flexibility with respect to the different formats and products. Processing flexible and rigid film with thickness up to 600 micron and a film width up to 420 mm. Tray provide a maximum forming depth until 100 (120*) mm. with a maximum cut-off up to 300 mm.

Machine only need air pressure for Forming and Sealing, Processing Stations are all electric in motion, so that a good saving in energy and little maintenance give a good return of the investment. NOISE FREE

Product Code REEFORM E40
Machine length: 4220 mm
Machine width 1070 mm
Machine height 1700 mm
Cut-off length 200 - 240- 270- 300 mm
Bottom film 320- 360- 420 mm
Product Loading area 1000-1200-1080-1200mm
Free position 5-5-4-4
Thermoforming depth Max. 120 mm (Parameters may vary according to the film typology and vacuum pumps in use and supplied with the machine.)
Machine cycle From 5 a 10 cycle / min.*.
Air pressure 6 - 10 bar (600-1200 Nl / min.)
Power supply 8 - 18 Kw
Water consumption 60 - 90 L / h - 1,5 - 2,5 bar (18 - 22°C)
Weight 1300 - 1500 Kg
Features:
  • REENEXT SOFTWARE
  • AIR FREE
  • WATER FREE
  • NOISE FREE
  • STAINLESS STEEL
  • USER FRIENDLY
  • ECO LINE
  • SANITIZING
