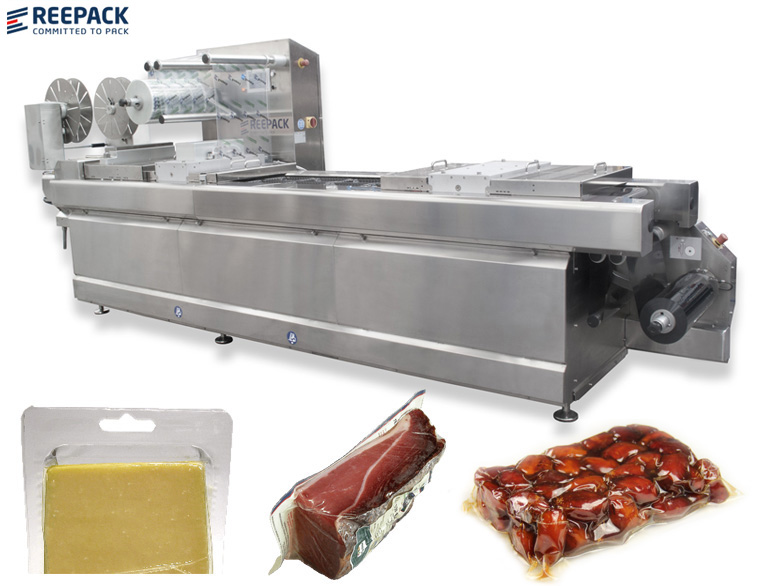

REEFORM E30 Thermoforming Machine
Thermoforming machine E30 for small & medium production output.
REEFORM E30 Thermoforming Machine, a state-of-the-art solution designed to meet your production needs with precision and efficiency.
The machine's frame is constructed with high-quality stainless steel, ensuring easy sanitization in wash-down environments and maintaining optimal hygiene standards. The open frame design allows seamless access to all parts of the machine, facilitating effortless checking and maintenance. Additionally, the equipment system is thoughtfully organized within the machine frame, providing enhanced protection from any potential damage.
Operating the REEFORM E30 is a breeze, thanks to its user-friendly control panel. Operators are introduced to an intuitive interface, allowing for easy setting and recording of different programs. The machine's programmable movements offer maximum flexibility, accommodating various formats and products to suit your unique requirements.
Capable of processing both flexible and rigid film, the REEFORM E30 handles thicknesses of up to 500 microns and film widths of up to 420 mm, making it versatile for a wide range of packaging materials. With its thermoforming capabilities, the machine can create trays with a maximum forming depth of 100 mm and a generous cut-off length of up to 300 mm.
Machine only need air pressure for Forming and Sealing, Processing Stations are all electric in motion, so that a good saving in energy and little maintenance give a good return of the investment. NOISE FREE
Features:
REEFORM E30 Thermoforming Machine, a state-of-the-art solution designed to meet your production needs with precision and efficiency.
The machine's frame is constructed with high-quality stainless steel, ensuring easy sanitization in wash-down environments and maintaining optimal hygiene standards. The open frame design allows seamless access to all parts of the machine, facilitating effortless checking and maintenance. Additionally, the equipment system is thoughtfully organized within the machine frame, providing enhanced protection from any potential damage.
Operating the REEFORM E30 is a breeze, thanks to its user-friendly control panel. Operators are introduced to an intuitive interface, allowing for easy setting and recording of different programs. The machine's programmable movements offer maximum flexibility, accommodating various formats and products to suit your unique requirements.
Capable of processing both flexible and rigid film, the REEFORM E30 handles thicknesses of up to 500 microns and film widths of up to 420 mm, making it versatile for a wide range of packaging materials. With its thermoforming capabilities, the machine can create trays with a maximum forming depth of 100 mm and a generous cut-off length of up to 300 mm.
Machine only need air pressure for Forming and Sealing, Processing Stations are all electric in motion, so that a good saving in energy and little maintenance give a good return of the investment. NOISE FREE
| Product Code | REEFORM E30 |
| Machine length: | 4220 mm |
| Machine width | 1070 mm |
| Machine height | 1700 mm |
| Cut-off length | 200 - 240- 270- 300 mm |
| Bottom film | 320- 360- 420 mm |
| Product Loading area | 1000-1200-1080-1200mm |
| Free position | 5-5-4-4 |
| Thermoforming depth | Max. 120 mm (Parameters may vary according to the film typology and vacuum pumps in use and supplied with the machine.) |
| Machine cycle | From 5 a 10 cycle / min.*. |
| Air pressure | 6 - 10 bar (600-1200 Nl / min.) |
| Power supply | 8 - 18 Kw |
| Water consumption | 60 - 90 L / h - 1,5 - 2,5 bar (18 - 22°C) |
| Weight | 1300 - 1500 Kg |
- REENEXT SOFTWARE
- AIR FREE
- WATER FREE
- NOISE FREE
- STAINLESS STEEL
- USER FRIENDLY
- ECO LINE
- SANITIZING
| Brand | Reepack - Italy |
