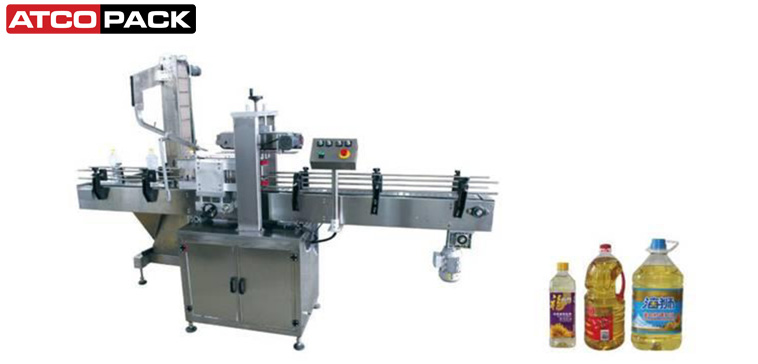

Press Capping Machine for Plastic Caps
The Press Capping Machine is a linear capping system designed to apply plastic press-fit caps onto bottles in continuous production environments. It is commonly used in factories, bottling plants, and packaging facilities handling food, chemical, and personal care liquids. The machine supports bottle sizes from 500 ml to 5000 ml and operates at a throughput of up to 4000 bottles per hour, depending on container format and cap type. It is suitable for industrial operations across the UAE, GCC, and wider Middle East and Africa region.
In UAE production environments such as Dubai and Sharjah, the machine is used in edible oil plants, chemical bottling units, and FMCG packaging lines where stable output and repeatable cap application are required. It handles containers ranging from 500 ml to 5000 ml and maintains a working speed of approximately 2000–4000 bottles per hour. Cap formats can be adjusted by changing the feeding tunnel, allowing compatibility with different plastic cap profiles.
The machine integrates smoothly with upstream filling machines and downstream labeling or inspection units. Frequency-controlled speed adjustment helps balance line flow, while low operating noise and pneumatic pressure control support continuous shift operation. The structure and layout are suited for fixed-line installations with minimal repositioning.
Technical Specifications
| Product Code | APXF-105 |
| Applied bottle range | 500-5000ml |
| Production Capacity | 2000-4000 bottles/h |
| Applied cap size | Customized, for different size, need to change feeding tunnel |
| Yield of capping | >=99% |
| Power Supply | 220V 50HZ |
| Power Consumption | <=2KW |
| Pressure | 0.4-0.6Mpa |
| Speed Control | Frequency Convertion |
| Single machine noise | <=70Db |
| Weight | About 850kg |
| Dimension(LxWxH) | 1800x1100x2600(mm) |
Key Features
- Linear press-type capping mechanism for plastic caps
- Compatible with bottle volumes from 500 ml to 5000 ml
- Throughput range of approximately 2000–4000 bottles per hour
- Cap size change via adjustable or replaceable feeding tunnel
- Frequency-controlled conveyor speed adjustment
- Pneumatic operating pressure range of 0.4–0.6 MPa
- Integrated cap alignment before pressing stage
- Low operational noise, typically under 70 dB
Press Capping Machine for Plastic Caps
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
The machine is designed for press-fit plastic caps commonly used on food oils, chemicals, and household products. It supports multiple cap diameters, with size changes managed through the feeding tunnel. In UAE facilities, including plants in Dubai and Sharjah, this allows operators to run different SKUs without replacing the full capping assembly.
The Press Capping Machine is built for continuous operation in industrial environments. With a working range of approximately 2000–4000 bottles per hour, it suits multi-shift production common in UAE manufacturing zones. Pneumatic pressure control and frequency-based speed adjustment help maintain stable output across long production runs.
Yes, the machine is typically installed inline between filling and labeling units. Conveyor height and speed can be synchronized with upstream and downstream equipment. This is common in integrated packaging lines across GCC facilities where space efficiency and smooth product transfer are operational priorities.
Routine maintenance mainly involves checking pneumatic lines, inspecting the press head alignment, and cleaning the cap feeding path. In UAE environments where dust and temperature variation are factors, periodic inspection of moving parts helps maintain consistent cap seating and reduces unplanned downtime.
The machine supports bottles from 500 ml up to 5000 ml, making it suitable for bulk packaging applications. This range is commonly used in edible oil and chemical plants operating in regional distribution hubs across the Middle East and Africa.
