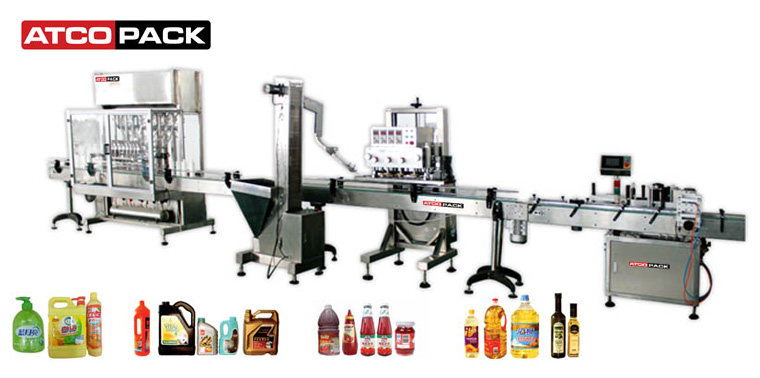

Piston Type Volumetric Filling Machine



This is a piston based volumetric automatic filling machine for use in several industries including food, beverage, oil, pharma, chemical, pesticide, cosmetics etc. It can be used to fill from very thin to viscous products including lubricants, brake oil, coolants, edible oil, tomato sauce, olive oil, honey, jam, mayonnaise, shampoo, detergent etc. The machine uses advanced technology including PLC, touch screen, servo motor, pneumatics and high quality fully SS construction.

Product Code APG500
Nozzle Number 4 6 8 10 12
Capacity (bottle/h) ≤1300 ≤1900 ≤2600 ≤3200 ≤4000
Filling Precision ≤±0.5%
Power Supply 220V / 380W 50-60Hz
Cosumed Power (Kw) 2.5 2.5 2.8 3.5 3.5
Compressor (Mpa) 0.5 - 0.8
Dimension (mm) 1600 x 1260 x 2550 2180 x 1260 x 2550 1600 x 1260 x 2550 1900 x 1460 x 2550 2180 x 14600 x 2550
PERFORMANCE CHARACTERISTICS
  • The filling range starts from 100-1000 ml to 500-5000 ml
  • Servo based system for filling volume
  • Using double speed technology to improve production efficiency and prevent material from spilling out
  • The adjustment of filling volume is convenient, can be set directly on the touch screen
  • Special diving nozzles for foamy products
  • No bottle, No filling function as standard
  • Stable performance & high accuracy
