Non-Motorised Expandable Roller Conveyor
A Non-Motorised Expandable Roller Conveyor is a gravity-driven, flexible conveying system used for manual carton and package movement in warehouse and logistics operations. It is commonly applied in loading bays, packing zones, and temporary transfer points where fixed conveyors are not practical. The conveyor expands from approximately 1.5 m to 4 m, supporting controlled movement of cartons with a load capacity up to 136 kg per 0.3 m. This solution is widely used across the UAE, GCC, and Middle East / MEA for adaptable material handling tasks.

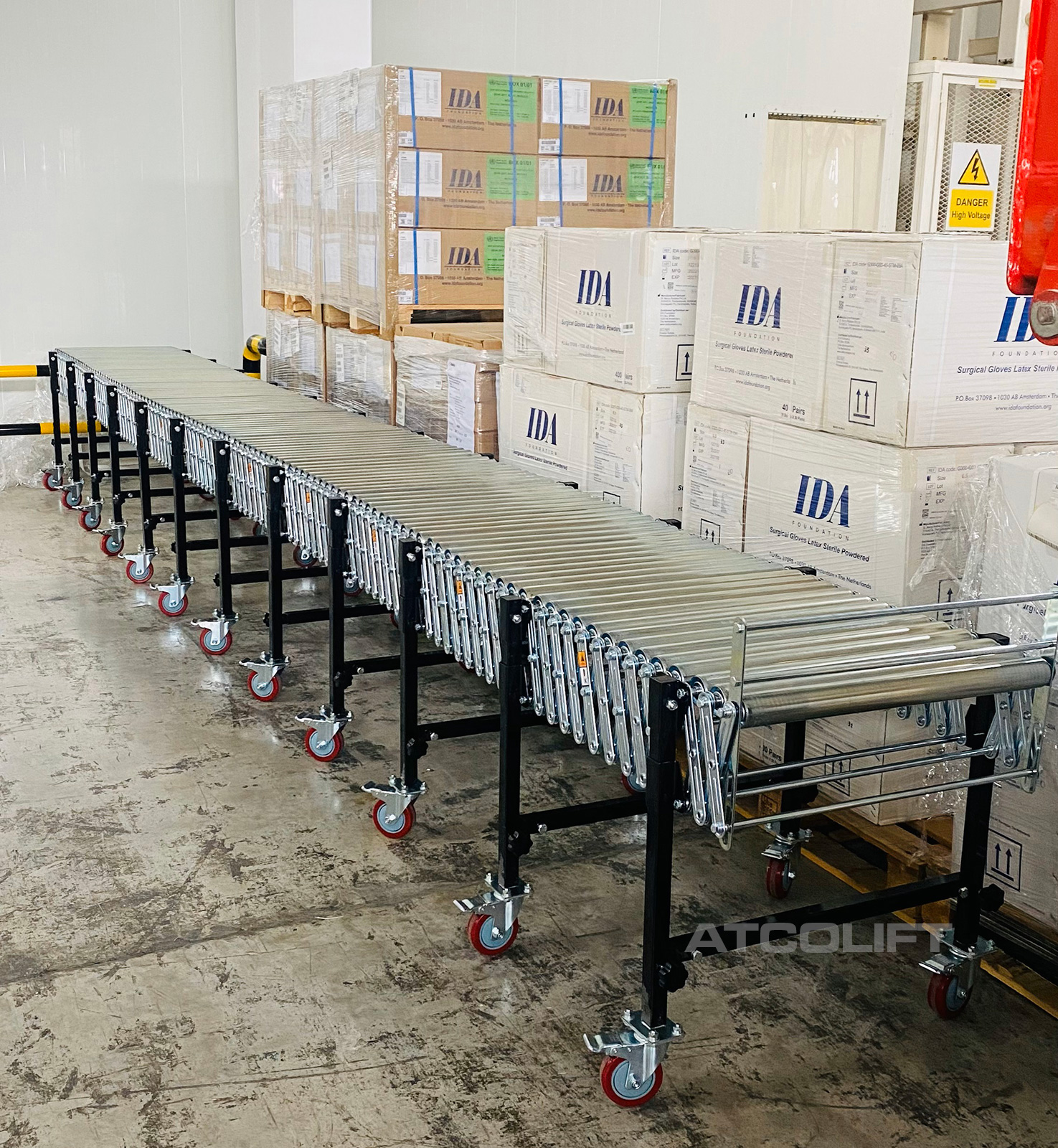

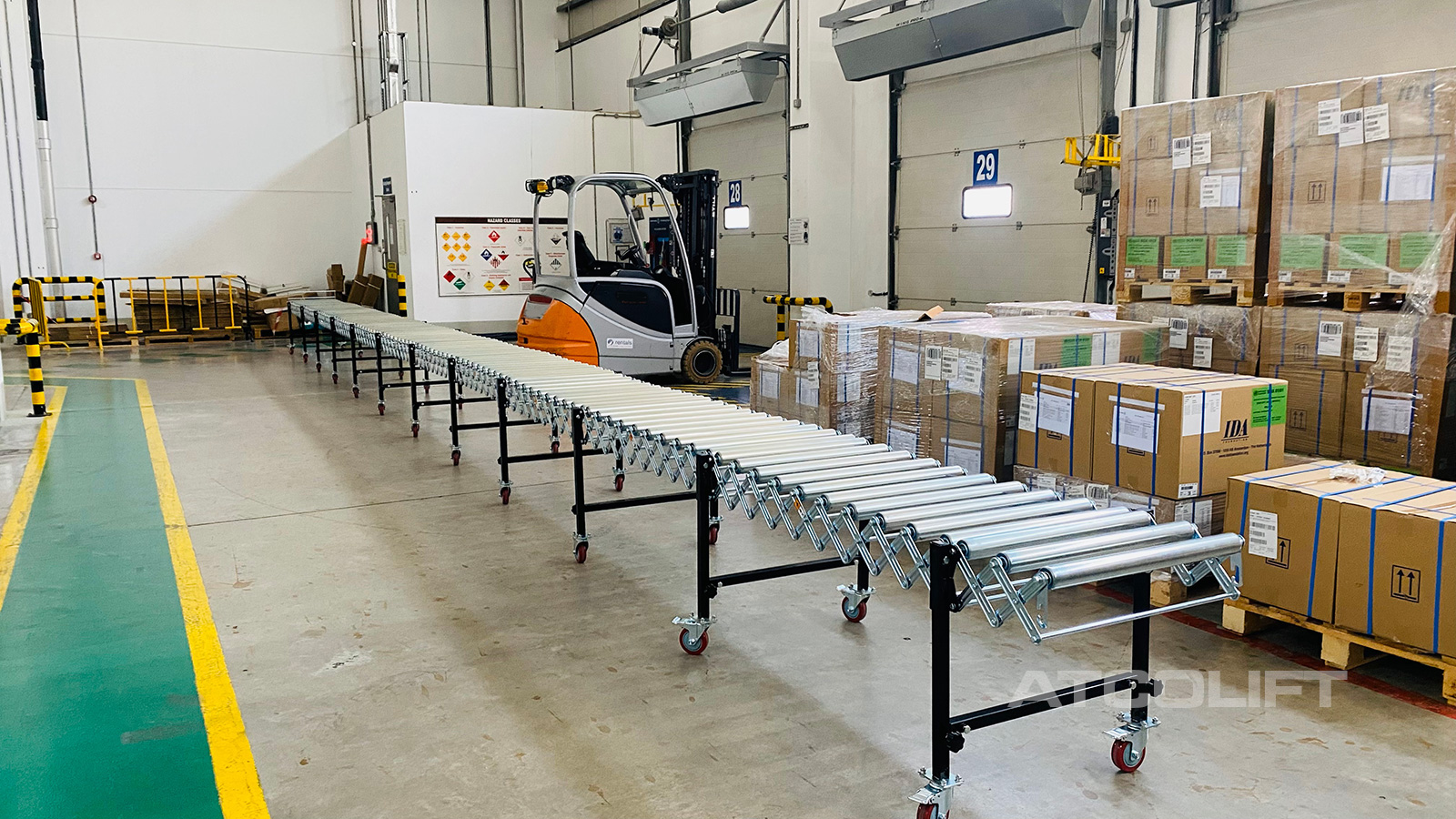

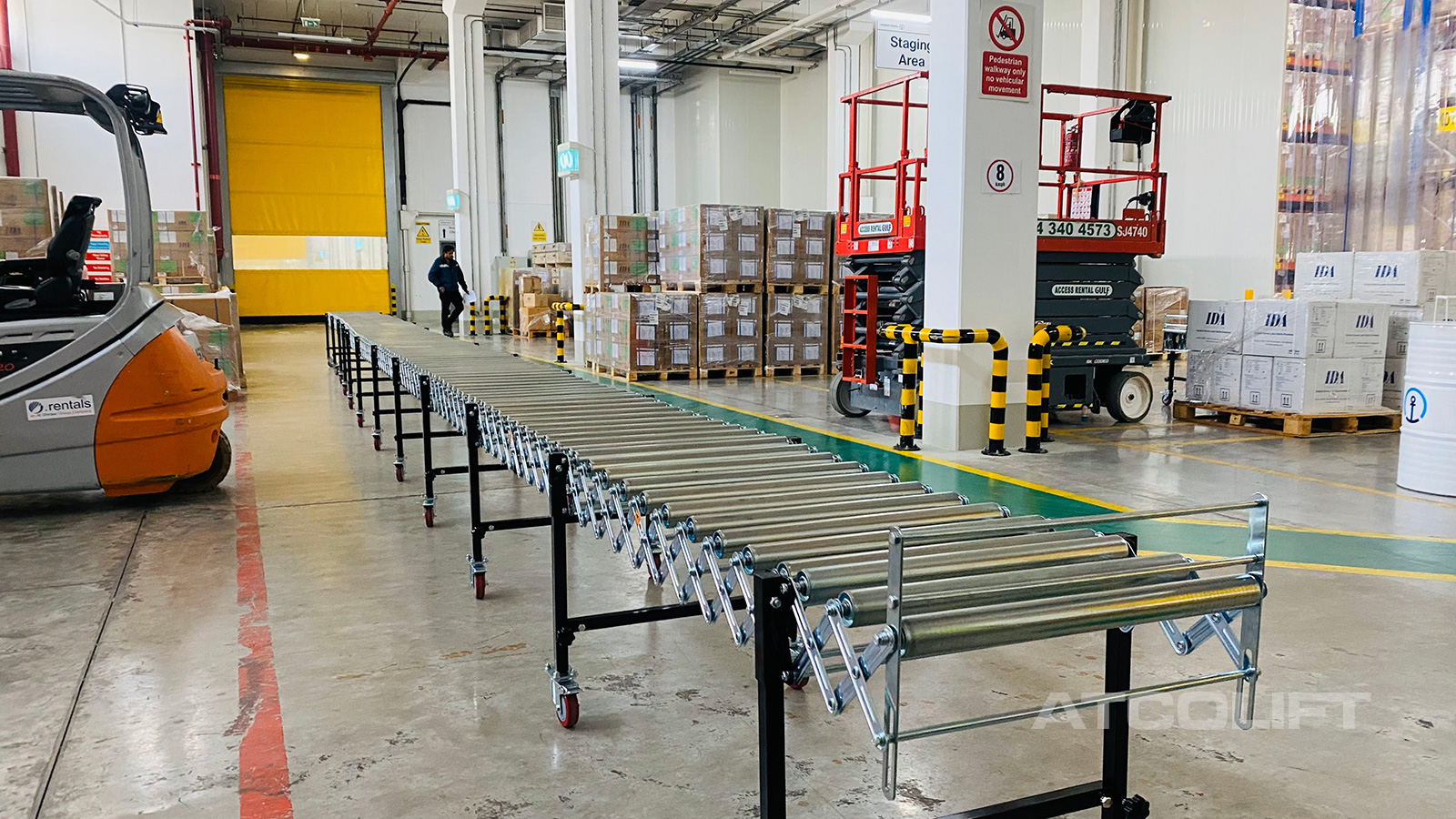

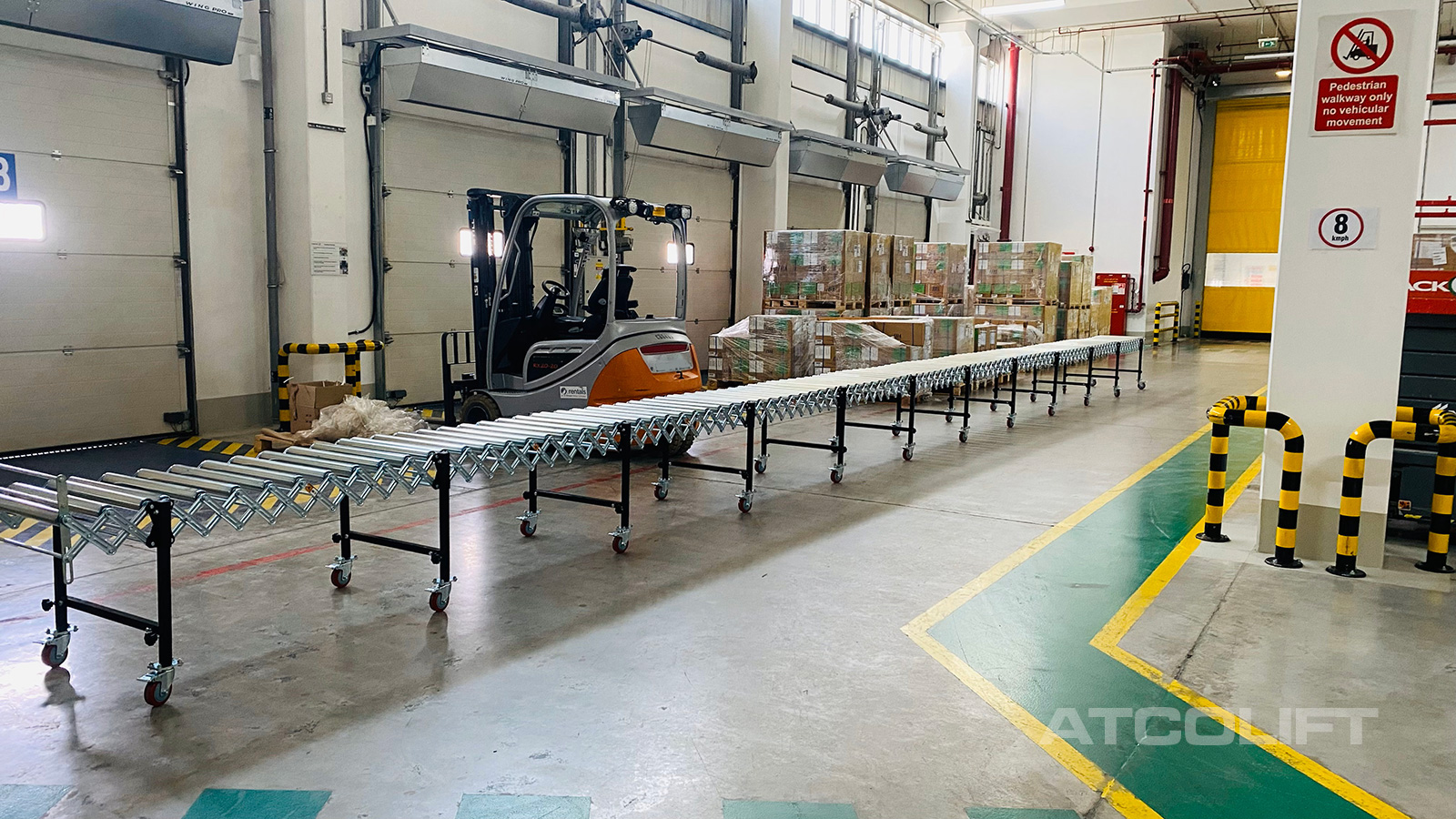

In UAE warehouses and distribution facilities across Dubai and Sharjah, this conveyor is often positioned between inbound vehicles and sorting tables. The adjustable working height, typically ranging from 0.7 m to 1.0 m, allows alignment with truck floors, pallets, or packing benches. With width options such as 460 mm, 610 mm, and 760 mm, it supports varied carton footprints without reconfiguration.

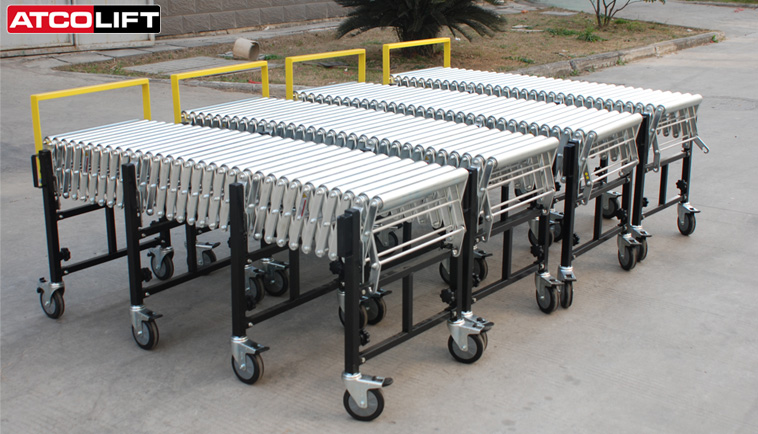

The frame uses square-tube support legs mounted on lockable castor wheels, allowing repositioning across the floor. Because no motors or controls are involved, the system offers consistent operation in environments where power availability, noise limits, or maintenance simplicity are key considerations. It integrates easily with powered conveyors or static roller beds when required.
Technical Specifications
| Width | 460mm | 610mm | 760mm |
| Height | 0.7m to 1m adjustable | ||
| Length | closed=1.5m, expanded=4m | ||
| Capacity | 136kg/0.3m | ||
Key Features
- Expandable gravity roller design for variable conveying distance
- Closed length around 1.5 m with extension up to approximately 4 m
- Load handling capacity up to 136 kg per 0.3 m section
- Multiple conveyor widths to suit different carton sizes
- Height-adjustable support legs for dock and floor alignment
- 50 mm roller diameter with material options including steel and PVC
- Powder-coated steel or aluminum alloy side frames
- Swivel caster wheels with integrated braking system
Non-Motorised Expandable Roller Conveyor
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
In the UAE, this conveyor is commonly used in loading bays, dispatch areas, and packing zones where flexibility is required. Warehouses in Dubai and Sharjah often use it for truck unloading and short-distance carton transfer when installing powered conveyors is not justified.
Throughput depends on carton weight, roller condition, and conveyor incline. Operators control flow manually, making it suitable for low to medium volume handling. In UAE facilities, it is often used where controlled movement is preferred over continuous high-speed conveying.
The conveyor typically supports loads up to around 136 kg per 0.3 m section. Operators should distribute weight evenly and avoid point loading. This is important in GCC warehouses handling mixed carton sizes and irregular packaging formats.
It is usually placed between trucks and fixed conveyor lines or packing tables. In Abu Dhabi logistics operations, it often acts as a temporary link during peak dispatch periods without altering permanent material handling layouts.
Routine maintenance involves cleaning rollers, checking caster brakes, and inspecting the scissor mechanism. In dusty UAE environments, periodic debris removal helps maintain smooth rolling and prevents uneven carton movement during operation.
