Unloading Roller Conveyor
An Unloading Roller Conveyor is a practical roller-based system used to move cartons and boxes out of trucks or containers with less manual effort. It is commonly placed at warehouse docks, logistics yards, and receiving areas where goods need to be unloaded quickly and safely. The conveyor allows cartons to roll smoothly toward the receiving zone, reducing lifting and walking. Typical systems support loads of around 60 kg per meter and offer extended reach to suit long truck bodies. These conveyors are widely used across the UAE, GCC, and Middle East / MEA logistics sector.
In distribution centers and warehouses operating in Dubai and Abu Dhabi, this type of conveyor is commonly positioned directly at truck doors. With a compact closed length of around 2.7 m and an extended reach up to 13.2 m, operators can unload deep inside trailers without constantly repositioning equipment. The working width of approximately 762 mm allows it to handle most standard shipping cartons used in regional supply chains.
The steel frame is built for dock-side use and supported by adjustable legs set close to 0.71 m, helping align the rollers with vehicle floors. Since the system relies on gravity rather than motors, it operates consistently in high-traffic unloading areas, requires minimal upkeep, and can be moved or stored easily when not in use. It also integrates smoothly with internal roller lines or sorting tables.

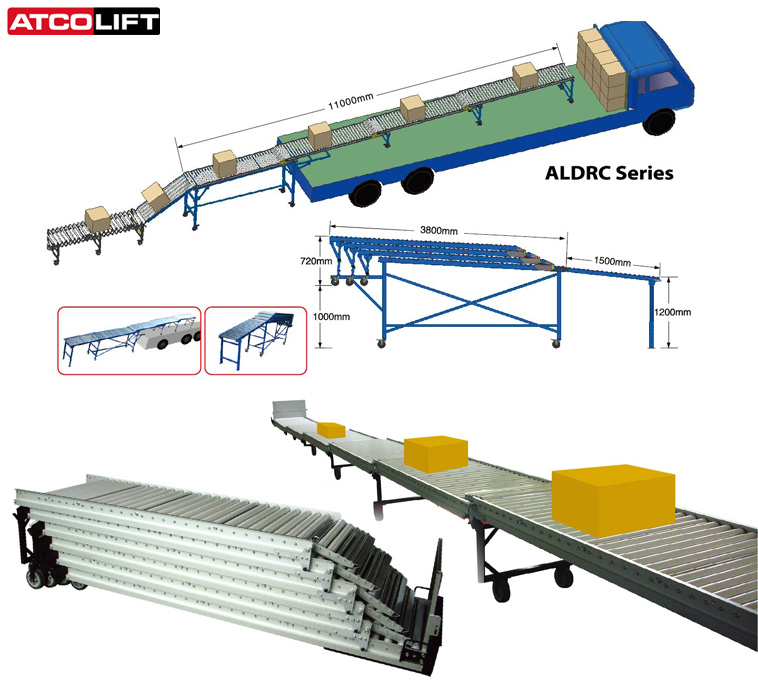

Technical Specifications
| Product Code | ALDRC Series |
| Width (B) | 762mm (30 Inch) |
| Height (H) | 0.71m (28 inch) |
| Length (L) | Closed(L1)= 2.76m(110ft) - Expanded (L2)=13.2m (520ft) |
| Capacity (C) | 60 kg/m (40 lbs/ft) |
Key Features
- Gravity-driven roller conveyor for truck and container unloading
- Expandable frame supporting long trailer access
- Load capacity approximately 60 kg per meter
- Compact closed length with extended operating reach
- Standard width suitable for common shipping cartons
- Height-adjustable support structure for dock alignment
- Steel frame construction for continuous dock-side use
- Compatible with fixed roller conveyors and packing lines
Unloading Roller Conveyor
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In UAE warehouses, the conveyor is placed directly at truck or container doors to create a rolling path for cartons. Facilities in Dubai and Abu Dhabi use it to reduce manual carrying distance, improve unloading speed, and maintain better control over inbound carton flow.
The system is designed for standard shipping cartons and boxed goods with flat bases. A typical capacity of around 60 kg per meter allows safe handling of most retail, FMCG, and spare-parts cartons commonly moved in GCC logistics operations.
The expandable frame allows the conveyor to reach deep inside trailers without repositioning. This is especially useful in UAE distribution centers where mixed truck sizes are handled, reducing delays caused by frequent equipment movement.
Yes. It is often used as the first receiving section and connected to fixed roller beds or sorting conveyors inside the warehouse. This setup is common in Abu Dhabi facilities handling continuous inbound material flow.
Routine checks include cleaning rollers, inspecting frame joints, and ensuring height supports remain secure. In dusty UAE environments, regular debris removal helps maintain smooth rolling and consistent unloading performance.
