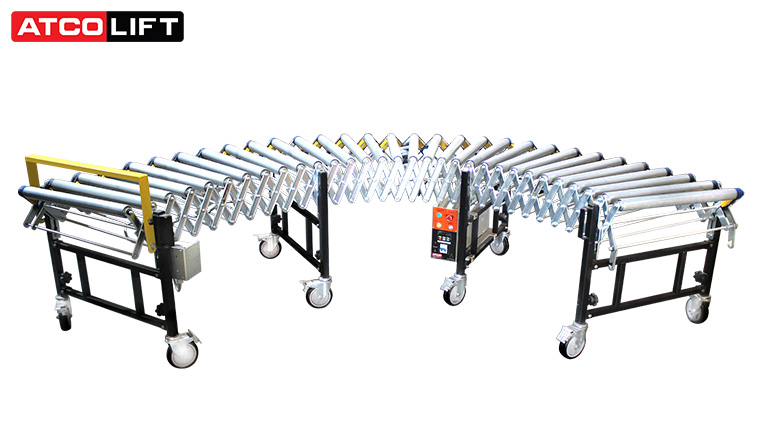

Motorised Expandable Roller Conveyor
A Motorised Expandable Roller Conveyor is a powered, flexible conveying system designed for variable-length material transfer in warehouses and logistics facilities. It is commonly used for truck loading, container unloading, packing lines, and dispatch areas where layouts change frequently. The system supports controlled carton movement with adjustable speed and forward/reverse operation. Typical configurations allow expansion from approximately 1.5 m to 4 m, with a handling capacity around 80 kg per 0.3 m segment. This solution is widely deployed across the UAE, GCC, and Middle East / MEA logistics environments.
The system is typically installed in shipping docks, outbound sorting zones, and packing stations where fixed conveyors are impractical. Adjustable working height, usually between 0.7 m and 1 m, allows alignment with truck beds or processing tables. Speed control up to 40 m/min enables operators to match conveyor movement with manual or automated workflows.
In facilities across Dubai and Abu Dhabi, the conveyor is often integrated with gravity rollers or powered belt lines to form temporary transfer paths. Swivel casters with brakes allow repositioning without dismantling, supporting dynamic warehouse layouts. Sensor-controlled models are used where accumulation or section-based control is required, improving operational consistency in high-volume dispatch environments.
Technical Specifications
| Width | 460mm | 610mm | 760mm |
| Height | 0.7m to 1m adjustable | ||
| Length | closed=1.5m, expanded=4m | ||
| Capacity | 80kg/0.3m | ||
| Speed | 0-40m/min adjustable | ||
Key Features
- Expandable structure supporting variable conveying lengths
- Multiple motorised sections with individual drive units
- Adjustable conveying speed with forward and reverse control
- Optional sensor-based control for sectional feedback operation
- Working height adjustment for dock and workstation alignment
- Powder-coated steel or aluminum side frames for durability
- Swivel caster wheels with integrated braking mechanism
- Central control box capable of managing multiple conveyor units
OR
Motorised Expandable Roller Conveyor
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
In the UAE, these conveyors are commonly used at loading docks, dispatch zones, and container unloading areas. Warehouses in Dubai and Abu Dhabi rely on them where truck positions change frequently. They suit operations that need temporary or movable conveying without installing fixed conveyor lines.
The expandable structure allows operators to extend or retract the conveyor based on vehicle distance. Speed adjustment and reversible direction help match packing or sorting activity. This flexibility is useful in GCC logistics operations where shipment volume fluctuates throughout the day.
The conveyor is designed for cartons, totes, and boxed goods with stable bases. Typical handling capacity is around 80 kg per 0.3 m section, making it suitable for retail cartons, spare parts, and packaged industrial items used across UAE distribution centers.
Yes. It is often positioned between fixed belt conveyors, gravity rollers, or packing tables. In UAE warehouses, it is commonly used as a flexible link between permanent systems and loading vehicles without requiring structural modifications.
Maintenance typically includes periodic roller inspection, checking motor mounts, and ensuring sensors or control wiring remain secure. In dusty Middle East environments, cleaning rollers and electrical enclosures helps maintain consistent performance and reduces unplanned stoppages.
