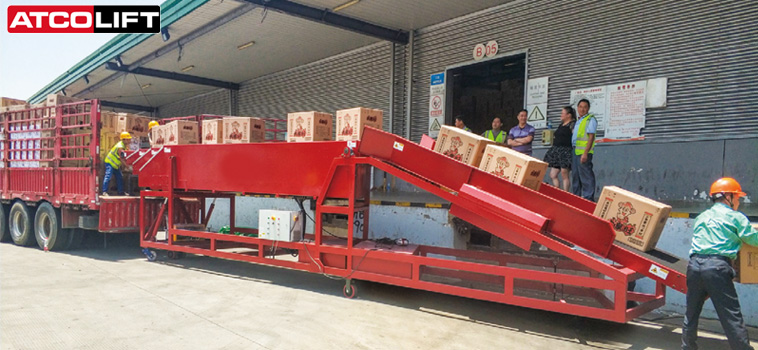

Inclined Telescopic Belt Conveyor
An Inclined Telescopic Belt Conveyor is a variable-length conveyor system used for truck loading and unloading operations in warehouses, logistics facilities, and distribution centers. The inclined structure allows goods to move between different height levels such as loading docks and container floors. Typical systems extend from about 7,000 mm up to nearly 30,000 mm and commonly operate with belt widths of 600 mm or 800 mm. Across UAE logistics hubs and wider GCC and Middle East operations, the Inclined Telescopic Belt Conveyor supports continuous parcel movement while reducing manual handling effort.
In UAE logistics zones such as Dubai and Abu Dhabi, these conveyors are commonly installed in e-commerce fulfillment centers, postal sorting facilities, appliance distribution warehouses, and food processing dispatch areas. The inclined belt arrangement enables goods to travel between dock level and vehicle floors while maintaining steady product flow.
Typical configurations include 2 to 5 telescopic sections with total working lengths ranging from approximately 7 m to 30 m. Belt widths are generally available in 600 mm or 800 mm depending on parcel size and handling requirements. Hydraulic lifting assemblies may be integrated to adjust the conveyor elevation according to trailer height.
The equipment can operate in forward or reverse direction, enabling both loading and unloading tasks within the same workstation. Optional modules such as barcode scanning, inline weighing, dimensioning units, and SKU counters allow the conveyor to integrate with warehouse automation and tracking systems used in UAE distribution operations.
Technical Specifications
| Type | Section Number | Fixed length (A) | Extended Length (B) | Total Length (C) | Belt Width |
|---|---|---|---|---|---|
| AL-C-TBC-2S-4/3-800-I | 2 | 4000 | 3000 | 7000 | 600/800 |
| AL-C-TBC-3S-5/7-800-I | 3 | 5000 | 7000 | 12000 | 600/800 |
| AL-C-TBC-3S-5.4/6.6-800-I | 3 | 5400 | 6600 | 12000 | 600/800 |
| AL-C-TBC-3S-6/8.6-800-I | 3 | 6000 | 8600 | 14600 | 600/800 |
| AL-C-TBC-3S-4/5-800-I | 3 | 4000 | 5000 | 9000 | 600/800 |
| AL-C-TBC-3S-9.5/12-800-I | 3 | 9500 | 12000 | 21500 | 600/800 |
| AL-C-TBC-4S-5/10-800-I | 4 | 5000 | 10000 | 15000 | 600/800 |
| AL-C-TBC-4S-6/12.6-800-I | 4 | 6000 | 12600 | 18600 | 600/800 |
| AL-C-TBC-4S-7/14.6-800-I | 4 | 7000 | 14600 | 21600 | 600/800 |
| AL-C-TBC-4S-6/12.6-800-I | 4 | 6000 | 12600 | 18600 | 600/800 |
| AL-C-TBC-4S-7/14.6-800-I | 4 | 7000 | 14600 | 21600 | 600/800 |
| AL-C-TBC-4S-7.5/16-800-I | 4 | 7500 | 16000 | 23500 | 600/800 |
| AL-C-TBC-5S-6/16-800-I | 5 | 6000 | 16000 | 22000 | 600/800 |
| AL-C-TBC-5S-6/16-800-I | 5 | 6000 | 16000 | 22000 | 600/800 |
| AL-C-TBC-5S-7/17.5-800-I | 5 | 7000 | 17500 | 24500 | 600/800 |
| AL-C-TBC-5S-7.5/21-800-I | 5 | 7500 | 21000 | 28500 | 600/800 |
| AL-C-TBC-5S-10/20-800-I | 5 | 10000 | 20000 | 30000 | 600/800 |
Key Features
- Multi-section telescopic structure allowing conveyor extension into truck or container interiors
- Inclined belt configuration supporting transfer between dock level and vehicle floor height
- Available in 2-section, 3-section, 4-section, and 5-section telescopic layouts
- Total operating length ranges from approximately 7 m to 30 m depending on configuration
- Belt width options typically available in 600 mm or 800 mm for parcel handling
- Hydraulic lifting mechanism available for vertical height adjustment
- Bidirectional belt operation enabling both loading and unloading processes
- Adjustable support legs allowing alignment with truck or container entry height
- Optional inline systems including barcode scanning, SKU counting, weighing, and dimensioning
- Suitable for integration into warehouse automation lines and parcel handling systems
Inclined Telescopic Belt Conveyor
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, inclined telescopic belt conveyors are widely used in truck loading docks within eCommerce fulfillment centers, courier hubs, and appliance distribution warehouses. Facilities in Dubai, Abu Dhabi, and Sharjah commonly deploy them to move cartons between dock platforms and container floors, helping maintain continuous parcel flow during high-volume dispatch and receiving operations.
The telescopic sections extend directly into the vehicle, allowing operators to load or unload cartons without repeatedly entering and exiting the truck. This reduces walking distance, speeds up parcel transfer, and keeps loading activity concentrated near the conveyor end. In busy warehouse environments, this setup helps maintain consistent throughput during peak shipment periods.
Most inclined telescopic belt conveyors used in warehouse automation operate with total working lengths between roughly 7 m and 30 m depending on the number of telescopic sections. Belt widths commonly range from 600 mm to 800 mm. These dimensions support efficient movement of cartons, packages, and parcel containers commonly handled in distribution centers.
Yes. Many systems include hydraulic lifting assemblies or adjustable support legs that allow the conveyor elevation to match the height of truck beds or container floors. This alignment is important when working with different trailer designs across logistics fleets, helping ensure stable material transfer between dock platforms and vehicles.
In automated distribution facilities, the conveyor can be fitted with optional modules such as barcode scanners, inline weighing devices, dimensioning equipment, and SKU counters. These additions allow cartons to be scanned and recorded while moving along the belt, enabling real-time shipment tracking and integration with warehouse management software.
Routine maintenance typically includes checking belt tension, inspecting rollers and telescopic sliding tracks, verifying drive system alignment, and cleaning accumulated debris from the conveyor frame. Periodic inspection of hydraulic lifting systems and control components is also recommended to maintain reliable operation in high-throughput warehouse environments.
