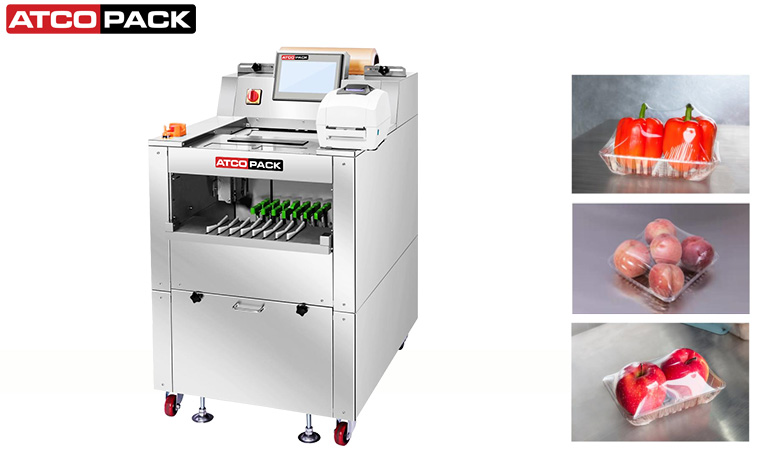

Stand Type Food Wrapping Machine (With Check Weigher & Printer)
The Stand Type Food Wrapping Machine with integrated check weigher and printer is an automated tray wrapping system used in food packing areas, processing units, and distribution facilities. It wraps, weighs, and prints pack data in a single pass, reducing manual handling. The system supports throughput of around 15 packs per minute and accommodates food items typically ranging from 50 g up to 3 kg. This configuration is widely used across the UAE, GCC, and broader Middle East food supply chains where accuracy and traceability are required.
It is commonly installed in food preparation zones, central kitchens, and cold-room packing sections operating in Dubai and Sharjah, where packaged produce, meat trays, and ready-to-eat items are processed daily. The unit integrates smoothly with upstream filling tables and downstream collection conveyors, allowing continuous operation without stopping the line.
The equipment handles packing dimensions up to approximately L 350 mm × W 270 mm × H 170 mm, using PE or PVC films within a defined width range. Operating conditions are suited for humid food environments, provided condensation is controlled. Conveyor movement, film tension, weighing accuracy, and print triggering are electronically synchronized, ensuring consistent output. This makes the system suitable for regulated food operations requiring stable wrapping quality and repeatable pack data.
Technical Specifications
| Product Code | AFWM-F16 |
| Speed | 15 packs per min |
| Packing size | L80—350mm * W80—270mm * H10—170mm L+(Hx2)≤440mm; W+H≤300mm Maximum size combination not possible. The maximum size is not suitable for group packaging as well. You need to use the appropriate film that fits the size of the product. When the product fits into the packaging range but the width of the film is not enough, it cannot be wrapped. |
| Product weight | 50g-3kg |
| Width of cling film | 350-500mm |
| Material of film | PE/PVC |
| Max. Dia. of film | ≤160mm |
| Operating humidity | 10-90%RH(Condensation-free) |
| Power supply | AC 220V / 50HZ, 1800W |
| Working Temperature | 5℃~35℃ |
| Machine size/net weight | L988×W736×H1262mm/208kg |
| Machine size after packaging/gross weight | L1050×W800×H1430mm/263kg |
Key Features
- Integrated check weigher for inline weight verification
- Built-in thermal printer for barcode and data printing
- Compatible with PE and PVC cling films
- Handles tray-packed or trayless food items
- Electronic coordination between wrapping, weighing, and printing
- Adjustable film width to match product geometry
- Stainless steel construction for food handling areas
- Stable conveyor movement for consistent sealing results
Advantages:

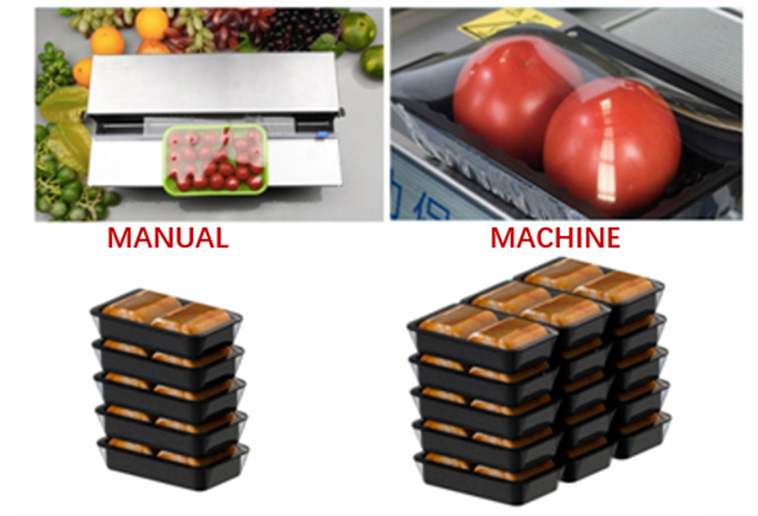

- Efficient packaging: With an average of 15 packs per minute, the packaging efficiency is about three times that of the manual.
- Multifunctional: It combines the functions of automatic packaging, weighing and printing labels to save costs
- The packaging is firm and beautiful: Compared with the manual packaging, the machine are used to make the packaging more firm and beautiful, which helps to enhance the brand value
- More choice of consumables:
A variety of films (PVC/PE) are available for cost savings; some brands of similar equipment can only use the specified film.
In addition, it can be packaged with or without trays, and is suitable for trays of various shapes (such as round, hexagon, etc.) - High quality material: The whole machine adopts stainless steel to adapt to the corrosive environment such as high humidity; the similar equipment of other brands only partially or completely does not use stainless steel, and is easily corroded under harsh environment
- Comfortable: The operation interface is simple in design and fast in response; it adopts special mute processing, which is less noisy and more comfortable to use than other similar devices
- Exquisite workmanship: Overall welding processing, equipment stability is better than similar equipment of other brands
NOTE
- 1. Calculating formula for film width: Product Length + (Product Height x2) + 60 mm.
Standard film specifications: Width 350mm/400mm/450mm/500mm/550mm. For this machine, Film Width must be ≤500mm).
For example: if the calculation is 360 mm, then choose a 400 mm wide film - 2. Product shape limitation:
A. For round products, you can wrap a single one (size must be within the range), two or more cannot be wrapped.
B. For strip-shaped products, you can wrap single (size must be within the range), two or more without tray cannot be wrapped.
C. For square products or products with a tray, the size should be within the range and formula.
Stand Type Food Wrapping Machine (With Check Weigher & Printer)
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
This machine is typically used for tray-packed fresh produce, meat cuts, bakery items, and ready meals. In UAE facilities around Dubai and Sharjah, it supports retail and foodservice packing where consistent wrap quality, verified weight, and printed pack information are required for distribution and shelf display.
The check weigher verifies each pack’s weight during conveyance before printing and discharge. This helps operators identify underweight or overweight packs immediately, reducing rework and waste. In regulated food operations, it supports compliance with declared weight standards and internal quality control procedures.
Yes. The system is designed for continuous operation at approximately 15 packs per minute. It integrates smoothly with preparation tables and outfeed conveyors, allowing steady flow without frequent stoppages, which is suitable for central kitchens and packing rooms operating multiple shifts.
The machine performs best in controlled food packing areas with temperatures roughly between 5°C and 35°C and non-condensing humidity. These conditions are common in UAE food facilities and help maintain stable film tension, weighing accuracy, and print clarity.
Routine tasks include cleaning the weighing platform, checking sensor calibration, and inspecting the printer head for residue buildup. These actions are usually handled during daily or weekly maintenance schedules and help ensure consistent readings and legible printed information.
