Aluminum Screw Capping Machine
The Aluminum Screw Capping Machine is an inline capping system designed to apply aluminum screw caps with controlled torque across automated packaging lines. It is commonly used in factories, bottling plants, and warehouse-based production environments handling edible oils, food liquids, and chemical products. The machine supports continuous operation while maintaining cap integrity and thread accuracy. Typical throughput ranges from 1200 to 1800 bottles per hour, depending on configuration, with compatibility for bottle volumes between 100ml and 1000ml. It is widely deployed across UAE and GCC industrial operations.
In UAE production facilities across Dubai and Sharjah, the machine is typically integrated after liquid filling and before labeling. Adjustable guide rails and synchronized speed control allow stable bottle handling even at higher line speeds. The design supports round, square, oval, and irregular container profiles without extensive mechanical change parts.
Operationally, the machine maintains consistent torque application across long production runs, reducing seal variation and rework. Standard configurations operate within a capacity range of 1200–1800 bottles per hour, with higher outputs available using multi-head models. Bottle height and diameter adjustments are handled through mechanical tuning, making the system suitable for multi-SKU warehouse operations serving Middle East and Africa markets.

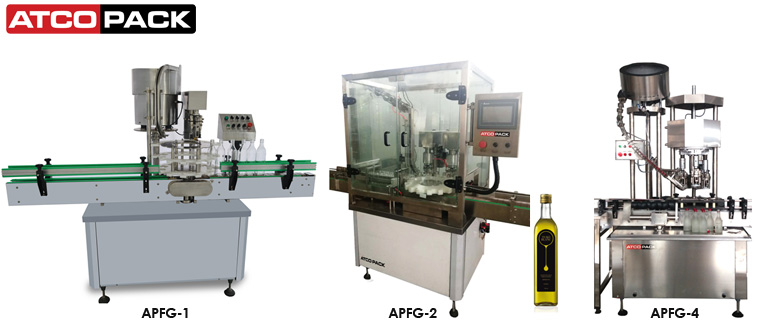

Technical Specifications
| Product Code | APFG-1 |
| Catalogue | |
| Bottle volume | 100ml-1000ml |
| Capacity | 1200-1800bph |
| Feeding Cap | >99% |
| Screwing Cap | >99% |
| Voltage | 380V 50Hz |
| Weight | 500KG |
| Dimension(LxWxH) | 1200*1300*1700(mm) |
Automatic Inline Double head capper with cap feeder (aluminium caps, olive oil bottles)
It can be applied for different kinds of material and different types of cap Adopt identity torsion capping head, the capping device could not damage the cap. Applied for Aluminum Cap.
| Product Code | APFG-2 |
| Catalogue | |
| Suitable bottle size | Customized |
| Speed | 50-60 bpm |
| Capping nozzles | 2 |
| Power Supply | 220V 60Hz |
| Power | 2Kw |
| Dimensions(mm) | 2200×1000×1800 |
Automatic Inline Four heads capper with cap feeder (aluminium caps, olive oil bottles)
4 Head Aluminum Screw Capping Machine can be applied for different kinds of material and different type of cap. Adopt identity torsion capping head, the capping device could not damage the cap. Applied for Aluminum Cap.
| Product Code | APFG-4 |
| Catalogue | |
| Bottle volume | 100ml-1000ml |
| Capacity | 3000-4500BPH |
| Feeding Cap | >99% |
| Screwing Cap | >99% |
| Voltage | 380V 50Hz |
| Weight | 500kg |
| Dimension(LxWxH) | 2200x1300x1700(mm) |
Key Features
- Identity torsion capping head for controlled aluminum cap tightening
- Inline conveyor integration with adjustable guide rails
- Automatic cap feeding and orientation system
- Supports aluminum screw caps without thread or surface damage
- Compatible with 100ml to 1000ml bottle volumes
- Single, double, or multi-head capping configurations available
- Stable operation for round and non-round bottle shapes
- Mechanical adjustments for fast format changeover
Specification of the Equipment:
- The machine is combined with automatic cap arranging, covering and screwing, features fast speed, high efficiency, reliable and stable running.
- Photo sensor and approximate switch and other elements are using international famous brand, to make sure that the cap unscrambler machine can control automatic no caps the switch is on ,full caps the switch is off.
- This machine suitable for round shape, square shape, oval shape and special-shaped and so onDoesn't require to replace parts for filling different shapes of bottles with easy adjustment, strong adaptability.
- The electric parts and pneumatic parts are used world-renowned brands, the advantage is low failure rate, reliable performance and long service life
Aluminum Screw Capping Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The Aluminum Screw Capping Machine is designed for roll-on and screw-type aluminum caps commonly used for olive oil, edible oils, and liquid food products. It supports thin-wall aluminum closures without deforming threads. In UAE plants, it is typically configured for standard ROPP-style caps used across food and FMCG packaging lines.
The machine uses a torsion-controlled capping head that applies regulated torque instead of fixed force. This prevents over-tightening and cap distortion, which is critical for aluminum closures. The system is widely used in Dubai and Sharjah facilities where seal consistency and cap appearance are tightly controlled.
Typical output ranges between 1200 and 1800 bottles per hour, depending on bottle size, cap profile, and line speed. Multi-head configurations can increase throughput. In UAE warehouse-based production, the machine is often synchronized with fillers and labelers to maintain steady line flow.
Yes. Adjustable guide rails and flexible capping heads allow the machine to process round, square, and slightly irregular bottles. Minor mechanical adjustments are sufficient. This flexibility is useful in UAE facilities managing multiple SKUs for regional and Africa-bound distribution.
The Aluminum Screw Capping Machine is installed inline after the filling station. Conveyor height and speed are adjustable to match upstream and downstream equipment. In Abu Dhabi and Dubai plants, it is commonly integrated with flow fillers and automatic labeling systems.
Routine tasks include cleaning the capping head, inspecting torque components, checking cap feeder alignment, and monitoring pneumatic connections. Preventive maintenance schedules are typically followed in UAE factories to ensure stable performance during extended production shifts.
