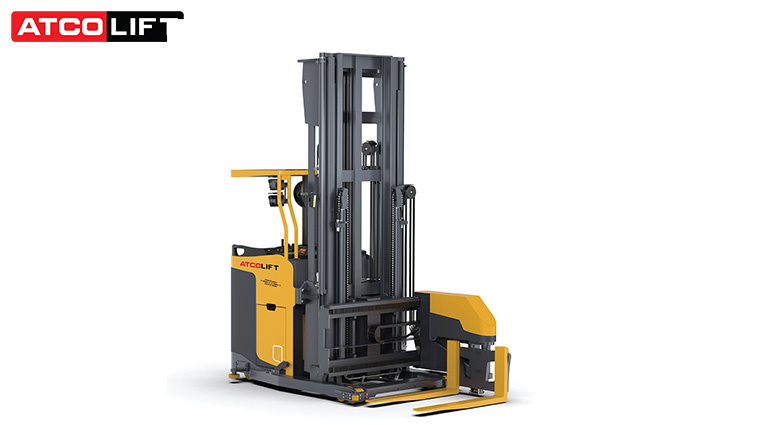

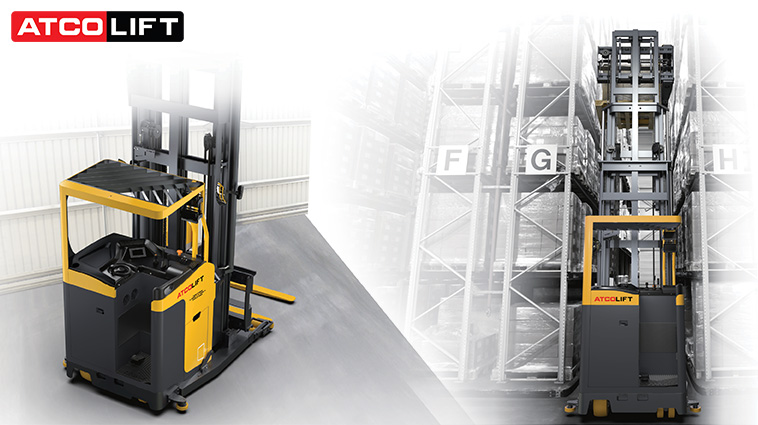

Man Down Three Way Forklift
The Man Down Three Way Forklift is a narrow aisle material handling machine designed for pallet movement where aisle width and storage density are tightly controlled. It is commonly used in warehouses and distribution centers in Dubai and Sharjah that operate tall racking systems. This forklift supports three-directional pallet handling while keeping the operator at ground level. ATCOLIFT configurations typically handle loads between 700 kg and 1,600 kg and operate in aisle widths starting around 1,480 mm, making them suitable for high-density storage environments across the UAE and MEA region.
This equipment is widely used in UAE warehouses handling spare parts, cartons, FMCG goods, and industrial inventory. The man-down configuration keeps the operator at floor level, which suits facilities that prioritize stable ground-based operation and standardized picking procedures. PU tyres and low ground clearance support smooth indoor travel on finished warehouse floors.
With lifting heights ranging from approximately 3,000 mm up to 7,500 mm depending on configuration, and a minimum turning radius starting near 1,580 mm, the forklift integrates effectively into narrow aisle racking systems. Controlled fork rotation of 180 degrees improves pallet access, while predictable handling behavior supports consistent daily warehouse workflows across Dubai, Abu Dhabi, and the wider GCC logistics network.
Technical Specifications
| Specification | MDN1065 | MDN1245 | MDN1675 |
|---|---|---|---|
| Wheelbase (mm) | 1348 | 1646 | 1698 |
| Rated load (kg) | 700 | 1200 | 1600 |
| Load center (mm) | 550 | 550 | 600 |
| Operation mode | Stand | ||
| Tyres type | PU | ||
| Lifting height (mm) | 3000–6500 | 4500 | 7500 |
| Fork rotation degree | 180 | ||
| Minimum ground clearance (mm) | 50 | ||
| Overall length (fork side) (mm) | 2560 | 2900 | 2951 |
| Overall width (with guide wheels) (mm) | 1450 | 1450 | 1550 |
| Fork specification | 1100/100/30 | 1100/122/45 | 1200/122/50 |
| Fork width (mm) | 300–750 | 425–750 | 425–750 |
| Min turning radius (mm) | 1580 | 1962 | 2014 |
| Min main aisle width (mm) | 3400 | 3700 | 3800 |

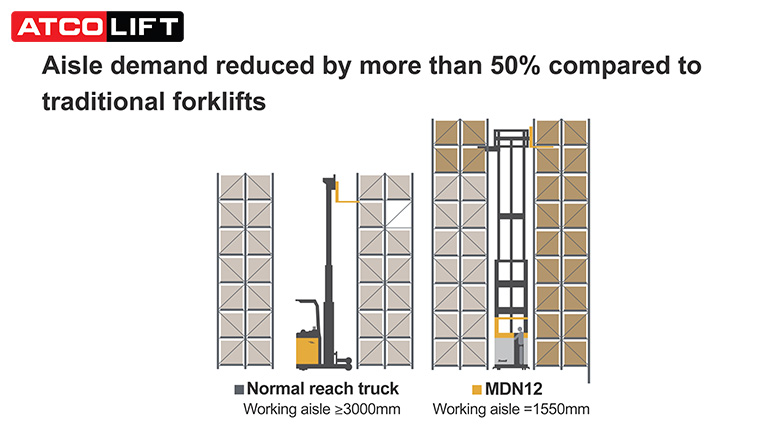

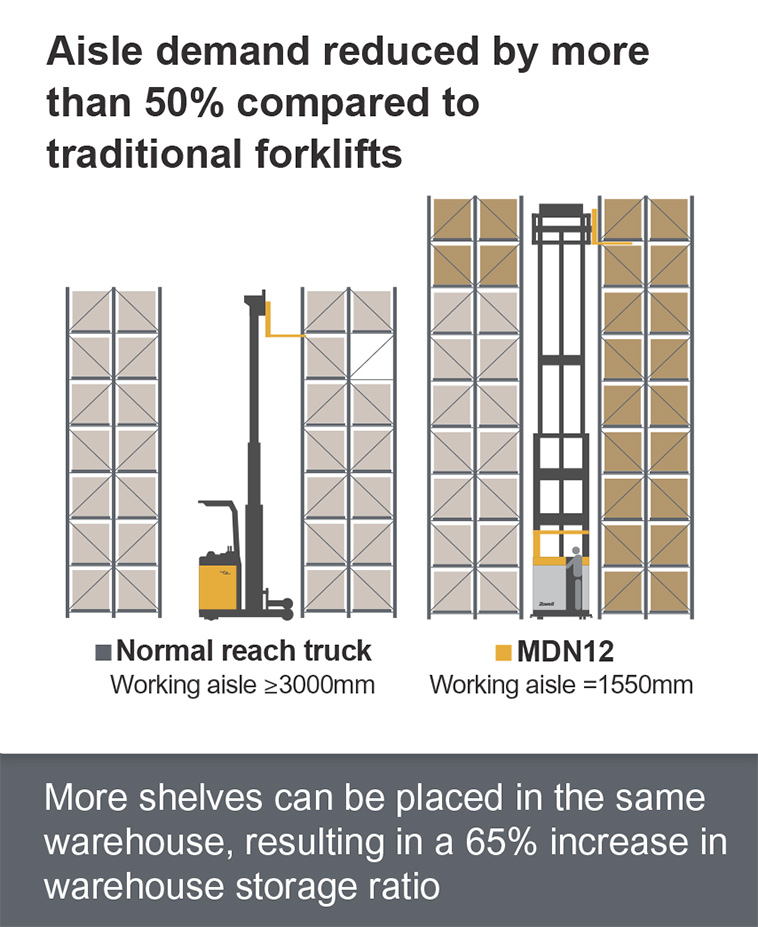

| Min aisle width (length × width) (mm) | 1480 | 1550 | 1650 |
| Lifting speed (loaded/unloaded) (mm/s) | 350 / 350 | 250 / 300 | 250 / 300 |
| Lowering speed (loaded/unloaded) (mm/s) | 350 / 350 | 300 / 300 | 300 / 300 |
| Braking | Electromagnetic braking / Regenerative braking | ||
Key Features
- Three-way fork handling for narrow aisle pallet placement
- Man-down operation with operator positioned at floor level
- Rated load capacity options from 700 kg to 1,600 kg
- Lifting height configurations up to approximately 7,500 mm

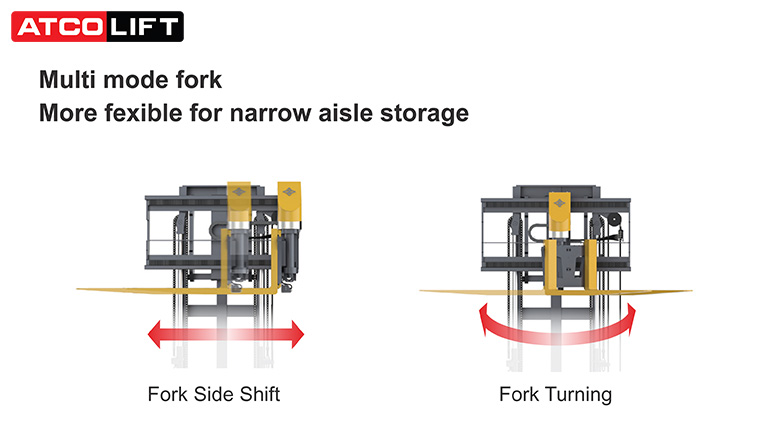

- 180-degree fork rotation for multi-directional handling
- PU tyres suitable for indoor warehouse flooring
- Compact turning radius for restricted aisle layouts
- Designed for integration with narrow aisle racking systems
Operating Cab (Standard Configuration)
- Electric display panel
- Operation steering wheel
- Fork operating handle
- Fork lifting control handle
- Forward and backward travel control
- Emergency stop switch
- Horn, parking, and lighting switch
- Electronic code lock for access control
- High-definition display screen
- Accelerator pedal and brake pedal
- Side pull battery system
Man Down Three Way Forklift
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
In the UAE, Man Down Three Way Forklifts are widely used in narrow aisle warehouses in Dubai and Sharjah where storage density is critical. Typical applications include spare parts warehouses, FMCG distribution centers, and industrial storage facilities with tall racking and fixed aisle layouts serving GCC and MEA supply chains.
Most UAE warehouses operate these forklifts in aisles starting from around 1.48 to 1.65 meters, depending on model configuration. Lift heights typically range between 3,000 mm and 7,500 mm, allowing access to multi-level racking commonly used in high-density storage environments.
The man-down design keeps the operator at ground level, which suits facilities with standardized pallet handling processes. In UAE warehouses, this supports consistent travel paths, predictable stacking routines, and easier integration with existing safety procedures compared to man-up systems.
UAE warehouses usually handle mixed pallet loads such as cartons, spare parts, and packaged consumer goods. A Man Down Three Way Forklift with capacities ranging from 700 kg to 1,600 kg supports these load profiles while maintaining controlled handling at height.
Routine inspection of the fork rotation mechanism, mast assembly, and PU tyres is important. UAE facilities operating extended shifts should also monitor electrical components and steering systems to ensure stable performance and reduce unplanned downtime.
