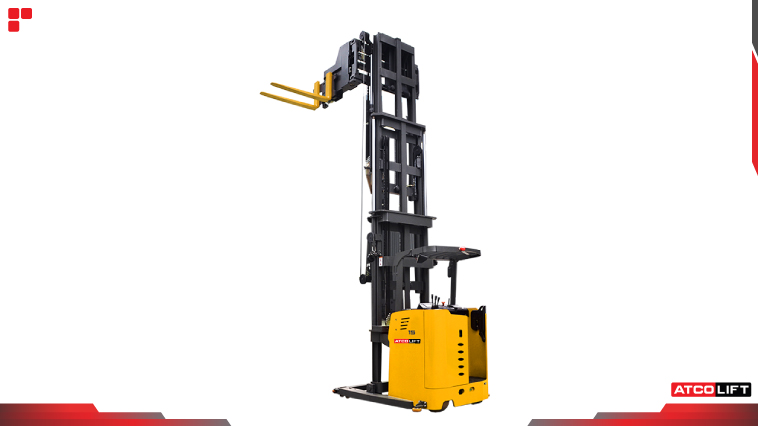

Narrow Aisle 3-Way Pallet Reach Truck
The Narrow Aisle 3-Way Pallet Reach Truck is a stand-on material handling machine used in high-density warehouse environments where aisle width and vertical reach are tightly controlled. In UAE facilities such as distribution centers and logistics warehouses in Dubai and Sharjah, it supports pallet movement in narrow aisles with multi-directional fork handling. ATCOLIFT models typically manage loads between 1,000 and 1,500 kg and reach lift heights up to 7,500 mm, enabling efficient access to upper racking levels within compact storage layouts.
These machines are commonly used in UAE warehouses serving retail distribution, spare parts storage, cold chain logistics, and regional supply hubs. The stand-on operating position supports controlled movement during frequent start-stop cycles typical in high-throughput facilities. With a maximum lifting height of approximately 7.5 meters and a minimum turning radius under 2 meters, the truck is well suited for narrow aisle racking systems.
Integration into existing warehouse workflows is straightforward, particularly in facilities using triplex masts and guided or semi-guided aisle layouts. Stable load handling, consistent mast movement, and predictable steering behavior support safe operation during extended shifts across UAE and wider GCC warehouse operations.
Technical Specifications
| Product | ALMC10-75 | ALMC15-75 |
| Rated Capacity (KG) | 1000 | 1500 |
| Operate Type | Stand-on | Stand-on |
| Max. Lifting Height (MM) | 7500 | 7500 |
| Height--Free Lift (MM) | 2690 | 2780 |
| Height---Mast Lowered | 3800 | 3823 |
| Hegith-Mast Extended | 8584 | 8550 |
| Min. Turning Radius (MM) | 1880 | 1980 |
| Load center (MM) | 500 | 600 |
| Fork Dimensions - L/W/T (MM) | 1000*125*50 | 1200*125*50 |
| Overall Length (MM) | 2906 | 2985 |
| Overall Width (MM) | 1450 | 1550 |
| Power Type | Battery | Battery |
Key Features
- 3-way fork system enabling pallet handling from multiple orientations
- Stand-on operator configuration for controlled narrow aisle movement
- Rated load capacity options from 1,000 kg to 1,500 kg
- Maximum lifting height up to 7,500 mm for high-rack access
- Compact turning radius suitable for narrow warehouse aisles
- Free lift range supporting operation under low ceiling areas
- Triplex mast compatibility for multi-level pallet storage
- Designed for indoor warehouse floor conditions
Narrow Aisle 3-Way Pallet Reach Truck
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, this equipment is commonly used in high-density warehouses and distribution centers in Dubai, Sharjah, and Abu Dhabi. It is suitable for facilities with tall racking and restricted aisle widths, such as FMCG warehouses, spare parts hubs, and cold storage facilities serving GCC and wider Middle East supply chains.
The three-way fork mechanism allows pallet pickup and placement without repositioning the truck, enabling narrower aisles and taller racking. With lift heights up to around 7.5 meters, UAE warehouses can increase storage levels while maintaining controlled pallet handling and stable operation in compact indoor layouts.
Most UAE facilities operate within a 1,000 to 1,500 kg load range for palletized goods. This capacity suits mixed inventory profiles such as retail goods, cartons, and spare parts commonly stored in regional distribution centers operating across the GCC and Africa trade routes.
Operation requires flat, well-finished indoor floors and clearly defined narrow aisles. Warehouses in Dubai and Sharjah typically use guided or semi-guided layouts, along with proper racking alignment, to maintain predictable travel paths and safe pallet placement at elevated heights.
Regular inspection of the mast channels, fork rotation mechanism, and steering components is important. In UAE warehouses operating extended shifts, scheduled checks of load chains, hydraulic hoses, and control systems help maintain consistent handling performance and reduce unplanned downtime.
