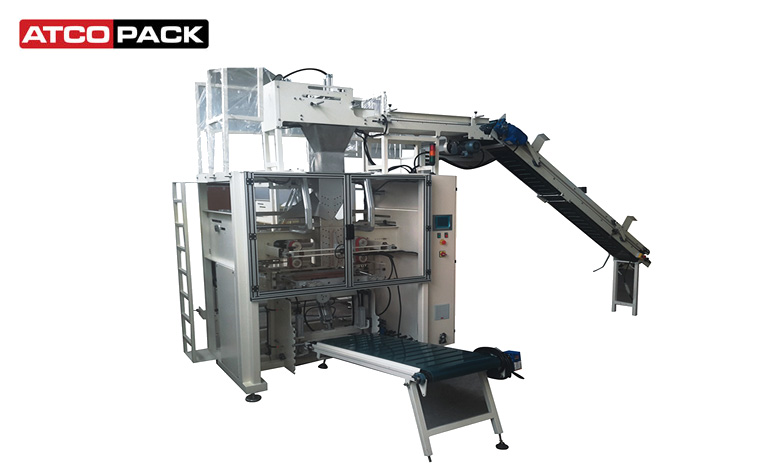

Vertical Bundling Machine BVM-1300-L5
Minimum cost, MAXIMUM PRODUCTION!
You will have the fast and fully automatic line thanks to BVM-1300 Vertical Bundling Machine. You can have the best solution for bundling the packs just after VFFS (Vertical Form Fill Seal Machine) machines automatically and fast.
Easy and fast setup for formats with the superior mechanism.
BVM-1300-L5 model machine is for large size packs like 5000 grams. The machine can bale the packs as 1 colomn.
General Specifications:
You will have the fast and fully automatic line thanks to BVM-1300 Vertical Bundling Machine. You can have the best solution for bundling the packs just after VFFS (Vertical Form Fill Seal Machine) machines automatically and fast.
Easy and fast setup for formats with the superior mechanism.
BVM-1300-L5 model machine is for large size packs like 5000 grams. The machine can bale the packs as 1 colomn.
General Specifications:
- Full automatic machine with CE certification
- The compact design with elektrical box
- Very user-friendly PLC system, touchpad control panel
- It is possible to synchronized with 2 automactic packaging machines with the production
- To change the film roll and the forming set is very simple and fast
- Easy to use and most of the function can be controlled on the PLC
Maximum Weight | 25 kg. |
Infeed Speed | 25 - 30 packs/min |
Maximum Width | 450 mm. |
Maximum Height | 600 mm. |
Machine Width | 1885 mm. |
Machine Depth | 1746 mm. |
Machine height | 2835 mm. |
Machine weight | 1150 kg. |
Pneumatic system | Festo - Schneider |
Electrical system | 7 kW - 3FAZ - 380 V - 50 Hz |
Electrical consumption | 4 kW/h |
Elektrical equippment | Siemens - Schneider |
PLC System | Siemens - Schneider |
Operating control panel | Siemens - Schneider |
Air pressure | 6-8 bar |
Air consumption | 5 lt/min |
Maximum film diameter | 500 mm. |
Maximum film width | 1250 mm. |
Brand | GPM - Turkey |
