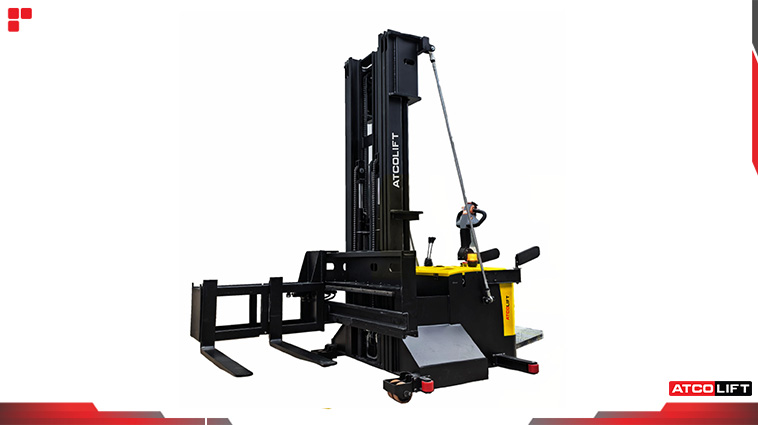

Standing Type VNA Side Stacker
The Standing Type VNA Side Stacker is a specialized narrow aisle truck designed for pallet storage and retrieval in high-density warehouse environments. It is commonly used in logistics centers, distribution facilities, manufacturing plants, and inventory storage operations where aisle space is limited. The side-loading fork mechanism allows pallets to be handled without turning the vehicle, helping maximize racking capacity. Available in capacities up to 1.5 tons, the truck can operate in stacking aisles from approximately 1800 mm with guide rails or 2000 mm without guide rails, making it suitable for warehouse operations across the UAE, GCC, Middle East, and Africa (MEA).
The Standing Type VNA Side Stacker is designed for pallet handling operations within very narrow warehouse aisles where storage density is a critical requirement. Unlike conventional forklifts and many reach trucks, this equipment uses a side-loading fork carriage that enables direct pallet placement and retrieval without frequent vehicle rotation inside rack aisles.
The truck is commonly deployed in distribution centers, spare parts warehouses, manufacturing facilities, retail storage operations, and high-bay warehouse environments. Facilities in Dubai and Abu Dhabi often utilize VNA equipment to increase pallet positions within existing warehouse footprints while maintaining efficient inventory access.
With load capacities up to 1.5 tons, the machine can operate in stacking aisles from approximately 1800 mm when guide rails are installed and around 2000 mm without guide rails. A main aisle width of approximately 3.5 meters supports traffic flow between storage zones. The standing operator compartment provides clear visibility during travel and pallet positioning. The equipment integrates effectively with pallet racking systems, warehouse management processes, inventory replenishment activities, and storage operations requiring organized material movement in confined spaces.
The truck is commonly deployed in distribution centers, spare parts warehouses, manufacturing facilities, retail storage operations, and high-bay warehouse environments. Facilities in Dubai and Abu Dhabi often utilize VNA equipment to increase pallet positions within existing warehouse footprints while maintaining efficient inventory access.
With load capacities up to 1.5 tons, the machine can operate in stacking aisles from approximately 1800 mm when guide rails are installed and around 2000 mm without guide rails. A main aisle width of approximately 3.5 meters supports traffic flow between storage zones. The standing operator compartment provides clear visibility during travel and pallet positioning. The equipment integrates effectively with pallet racking systems, warehouse management processes, inventory replenishment activities, and storage operations requiring organized material movement in confined spaces.
Technical Specifications
| Model | ALNSV1560TX |
| Power Type | Battery |
| Load Capacity | 1,500 kg |
| Load Center | 600 mm |
| Maximum Lift Height | 6,000 mm |
| Travel Speed (Loaded / Unloaded) | 4 / 5 km/h |
| Lift Speed (Loaded / Unloaded) | 100 / 110 mm/s |
| Minimum Stacking Aisle Width | ≥ 2,000 mm |
| Minimum Turning Channel Width | ≥ 3,500 mm |
| Fork Size | 35 × 100 × 1220 mm |
| Fork Side Shift Stroke | 1,250 mm |
| Fork Width Adjustment Range | 250 – 680 mm |
| Working Time | 5 – 8 Hours |
Standing Type VNA Side Stacker
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The Standing Type VNA Side Stacker is commonly used in high-density warehouses, spare parts storage facilities, distribution centers, and manufacturing stores where pallet racking is installed with narrow aisle layouts. It is often selected when additional pallet positions are required without increasing the warehouse footprint.
Yes. The truck can operate without guide rails, although aisle width requirements are typically wider. In many warehouse layouts, guide rail systems allow operation in aisles of approximately 1800 mm, while non-guided applications generally require around 2000 mm or more depending on site conditions.
By operating in significantly narrower aisles than conventional forklifts, the truck allows more racking to be installed within the same building. This approach is commonly used in Dubai and Abu Dhabi warehouses to increase pallet capacity while maintaining direct access to inventory locations.
Key considerations include pallet dimensions, load weight, rack height, aisle width, floor condition, daily throughput requirements, battery charging arrangements, and warehouse traffic patterns. Reviewing these factors helps ensure the equipment matches operational requirements.
Yes. Standing Type VNA Side Stackers are frequently used in high-bay warehouse environments where maximizing vertical storage capacity is important. The appropriate mast specification should be selected according to rack height, load characteristics, and storage system design.
Operators should be trained in narrow aisle travel, pallet positioning, rack clearance awareness, battery handling procedures, daily inspection routines, and emergency operating practices. Training requirements may vary according to warehouse policies and local safety regulations.
Dedicated pallet locations within narrow aisle racking systems help organize stock movement and storage activities. This can improve inventory accessibility, simplify stock identification, and support inventory accuracy across warehouse operations in the UAE and wider GCC region.
