Self Propelled Scissor Lifts

1/2

ALSC Series of Self-Propelled Scissor Lifts, your ultimate solution for aerial work. With heights ranging from 6 to 12 meters, these scissor lifts offer automatic walking, vertical lift, and platform extension functions, making them suitable for both indoor and outdoor environments. Widely utilized in electric power, petrochemical, and manufacturing industries, they excel in equipment installation and maintenance tasks.

Operating with a working load capacity of 240kg to 450kg, our ALSC Series allows operators to drive, steer, and lift directly from the platform, enabling seamless and continuous operation with just one person on board. No need for ground control, enhancing efficiency and convenience during your work at elevated heights. Trust in our Self-Propelled Scissor Lifts for reliability, safety, and unparalleled performance, ensuring you get the job done with ease and precision.

	Working Load (kg)	Max.Platform Height (m)	Max.Working Height (m)	Length&Width (m)	Up/Down Time (s)	Batteries (v/Ah)	Total Weight (kg)
ALSC06	240	3.8	5.8	1290x770	27/34	2*12/80	560
ALSC06E	240	3.9	5.9	1290x770	25/27	2*12/85	895
ALSC08EC/HC	230	5.8	7.8	1.67x0.74	E:23/32s; H:20/32s	4x6V/220Ah	E:1510kg; H:1485kg
ALSC08EN/HN	380	6	8	2.27x0.81	32/35	4x6V/232Ah	2160
ALSC10EN/HN	230	8	10	2.27x0.81	32/35	4x6V/232Ah	2275
ALSC10E/H	450	8	10	2.27x1.12	27/36	4x6V/232Ah	2655
ALSC12E/H	320	8	10	2.27x1.12	48/48	4x6V/232Ah	2990
ALSC14E/H	320	10	12	2.27x1.12	80/60	4x6V/280Ah	2925
ALSC16E/H	200	14	16	2.27x1.02	70/52	4x6V/310Ah	3375

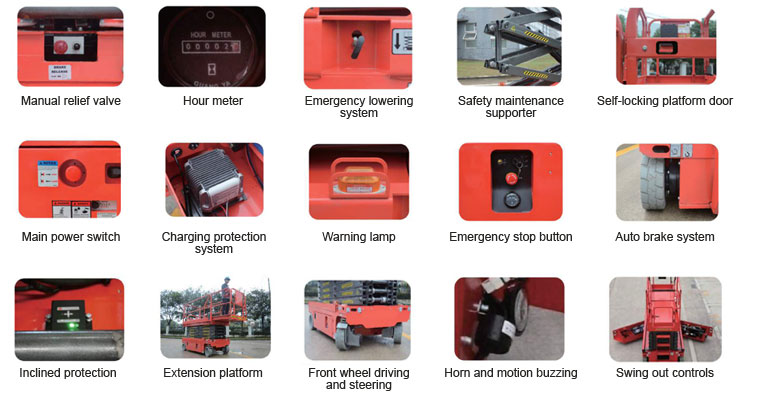

Performance characteristics

Operators can drive, steer and lift directly on the platform to achieve continuous operation when there is only one person, no need to have any control from the ground.
The chassis is equipped with drawer electrical box, which can easily access parts and facilitate maintenance.
The SC06(E) series is very compact in size and suitable for operation in confinsed spaces such as elevators.
The platform and chassis are equipped with automatic fault code display to facilitate maintenance.
Portable operating boxes allow users to operate easily outside the platform, can solve the problems on site when there is a failure.

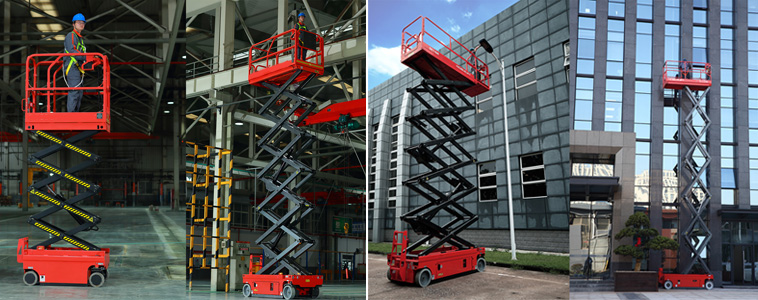

5-12M ALSC Series of scissor aerial work platform
