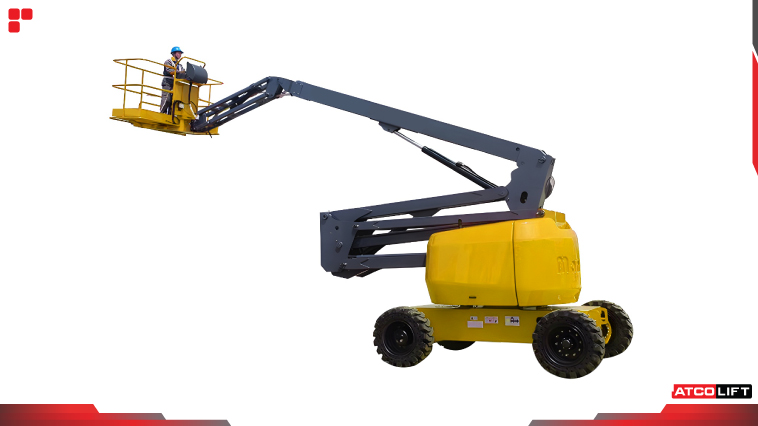

Lithium Powered Self-Propelled Articulated Boom Lift
The Lithium Powered Self-Propelled Boom Lift is a mobile aerial access machine designed for elevated work in confined and open industrial environments. It is commonly deployed in warehouses, production plants, logistics hubs, and facility maintenance zones. The articulated boom structure supports safe positioning over obstacles while maintaining stability. With a maximum working height of 17 m and 230 kg platform capacity, it supports maintenance, inspection, and installation tasks where clean, low-noise operation is required across UAE industrial sites.
This boom lift is suited for warehouses, logistics yards, factories, and infrastructure maintenance facilities across Dubai, Abu Dhabi, and Sharjah. The electric drive system ensures consistent movement across smooth industrial floors while maintaining control in restricted aisles. Lithium battery technology reduces charging downtime and eliminates routine fuel handling requirements.
With 9.25 m horizontal outreach, 7.2 m up-and-over clearance, and a 1.5 m x 0.76 m platform, the equipment integrates into planned maintenance schedules, shutdown work, and high-level installation workflows. Its self-propelled design allows relocation between work points without lowering the platform, improving task continuity and site efficiency.
Technical Specifications
| Product Code | ALHZ170J-Li |
| Max. Working Height | 17 M |
| Max. Platform Height | 15 M |
| Max. Outreach | 9.25 M |
| Max.Up & Over Clear | 7.2 M |
| Max. Lift Capacity | 230 Kg |
| Platform Size (BxCxA) | 1.5 x 0.76 x 1.1 M |
| Drive Power | Electric Driven |
| Battery | Li-ion |
Key Features
- Articulated boom design for obstacle clearance and side access
- Maximum working height of 17 meters for mid-to-high elevation tasks
- 230 kg rated platform load for tools and personnel
- Electric self-drive system for controlled indoor operation
- Lithium-ion battery for extended duty cycles and fast charging
- Compact chassis for navigation in warehouse aisles
- Proportional controls for smooth lift and travel movement
- Non-marking industrial tires suitable for concrete floors
Lithium Powered Self-Propelled Articulated Boom Lift
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
In the UAE, this equipment is commonly used inside warehouses, production units, and logistics centers in Dubai, Abu Dhabi, and Sharjah. It suits maintenance, lighting installation, racking inspection, and HVAC work where low noise, zero emissions, and controlled indoor movement are required across GCC-style industrial environments.
The articulated arm allows operators to reach over conveyors, mezzanines, machinery, or storage racks without repositioning the base. This is especially useful in UAE warehouses where aisle space is limited and production layouts are dense, reducing setup time and improving task continuity during maintenance or inspection work.
The platform supports up to 230 kg, suitable for one or two operators with tools. With a working height of 17 m and horizontal outreach of around 9.25 m, it fits mid-rise industrial buildings, distribution hubs, and service bays commonly found in UAE logistics and manufacturing facilities.
Yes. Lithium batteries provide stable output, faster charging, and consistent performance across long shifts. In UAE operations, this reduces downtime compared to lead-acid systems and avoids ventilation issues associated with fuel-powered lifts, especially inside temperature-controlled warehouses.
Operators should follow standard access equipment procedures, including harness use, load compliance, and surface checks. UAE sites typically require certified operators, daily inspections, and controlled travel at height, particularly in shared warehouse or logistics environments with pedestrian movement.
