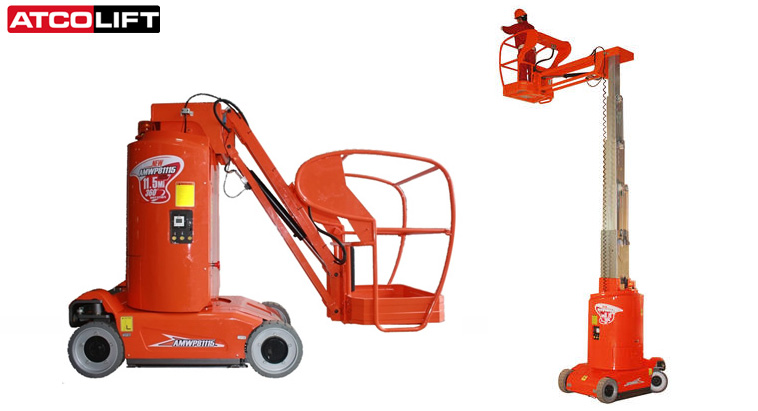

Self-Propelled Aerial Work Platform with Jib

Self-Propelled Aerial Work Platform with Jib

A self propelled boom with a number of benefits, including 345° turret rotation, light structure, convenient operation, safety, reliability and battery powered. With its non-marking tyres and ability to be driven at full height, it is perfect for use in narrow areas such as warehouses and supermarkets. Automatic pothole protection.

Product Code AMWP8100
Platform capacity (SWL) 200 kg
Max. occupants 1 (Outdoor), 2 (indoor)
Working height 11.20m
Platform floor height 9.20m
Overall length 2.72m
Overall width 1m
Overall height 1.99m
Horizontal outreach 3m
Up and over height 7.89m
Platform size 0.62x0.87m
Ground clearance (stowed) 0.06m
Ground clearance (raised) 0.019m
Wheelbase 1.22m
Turning radius 1.80m
Weight 2950kg +/-5%
Features:
  • Proportional controls
  • Automatic pothole protection
  • Self-closing gate on platform
  • Drivable at full height
  • Platform horizontal outreach
  • Non marking tyre
  • Automatic brake system
  • Emergency lowering system
  • Non marking tyre
  • Emergency stop button
  • Cylinder holding walve
  • Onboard diagnostic system
  • Charger protection
  • 345° turret rotatio
