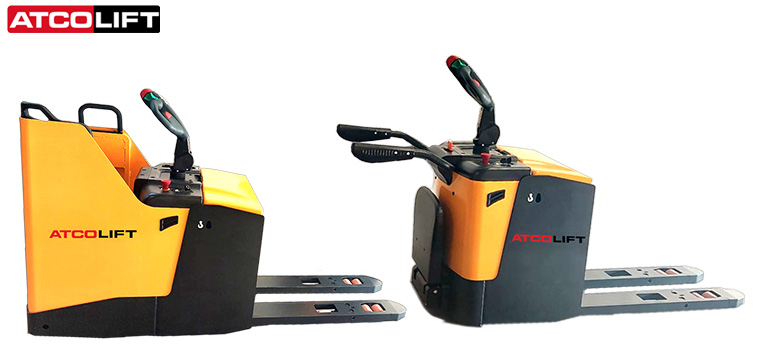

Lithium-Ion Pallet Truck (Foldable/Fixed Platform)

Projects

1/2

Lithium-Ion Pallet Truck (Foldable/Fixed Platform) known as the H series has been specifically developed to cater to the unique demands and characteristics of the logistics and leasing industry. This series offers a range of models, including ALPT20H, ALPT25H, and PT30H, designed to meet the requirements of heavy transport environments. With load capacities of 2000 kg, 2500 kg, and 3000 kg respectively, these trucks ensure high efficiency and are suitable for long-distance transportation, reaching a top speed of 12 km/h.

One notable feature of the H series is that the battery remains stable during operation, preventing unnecessary energy consumption and extending the battery's working time. The drive system incorporates a load-assisted pressure-adjust system, which enhances the service life of the drive wheels and reduces the cost associated with using sliding frame and pull rod structures. This design not only increases the longevity of the truck's structure but also makes maintenance more convenient and cost-effective.

The H series comes equipped with standard high-performance lithium-ion batteries that offer fast charging capabilities and require minimal maintenance. These batteries also boast a longer service life compared to traditional options. Additionally, the trucks offer optional features such as a remote control module and battery heating system to further enhance functionality.

With a wide range of models available, the H series suits various working conditions and demands. All trucks within this series feature electrical steering, ensuring flexible and effortless operation, with the exception of the AL20HPLUS model.

Product Code	ALPT20H	ALPT25H	ALPT30H
Rated capacity	2000 kg @ 600mm Load Center	2400 kg @ 600mm Load Center	3000 kg @ 600mm Load Center
Operation Control	Tiller handle with button
Drive	Battery
Drive Motor(kw)	1.8	2.5	2.5
Lift(mm)	120
Service Weight(kg)	730/800/750
Overall Width(mm)	790
Fork Dimensions(mm)	60/180/1150
Width across the Forks(mm)	685
Overall Length(mm)	1950/2383/2443
Turning radius(mm)	1710/2140/2200
Battery	24V / 150 Ah Lithium-ion battery

Equipped with AC drive technology, EPS, Foldable platform, Multifunctional LCD display
Fast Charging: 2 Hr to fully charge the Lithium Ion battery-suitable for multi-shift operation
Multi-functional LCD display that shows the battery power, alarm, fault code, running time, and speed information

Safety Features:

Emergency Button
Side Safety Guard
Reverse Button on Tiller
Tiller Push Emergency Stop
