Reciprocating Vertical Conveyor

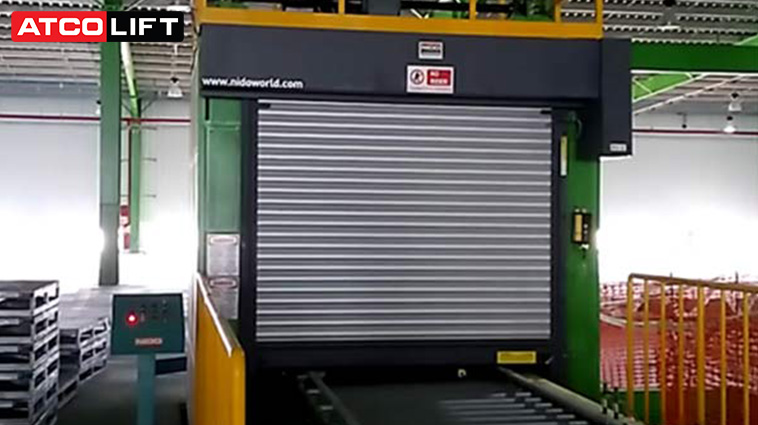

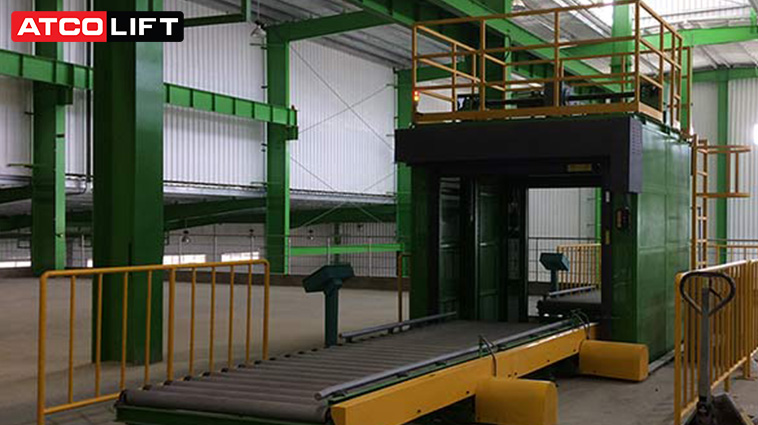

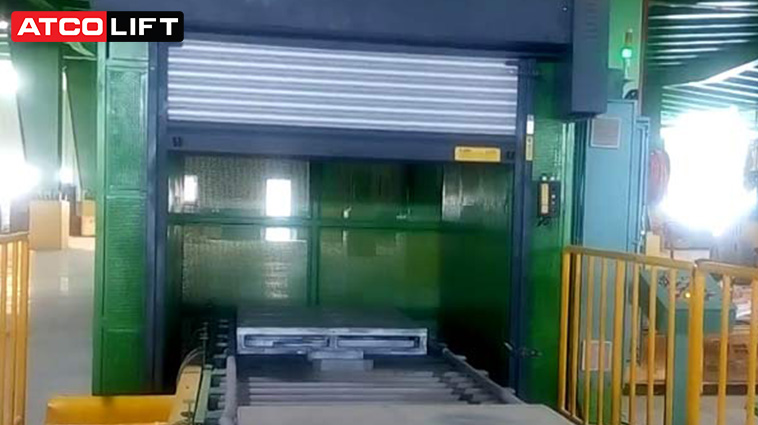

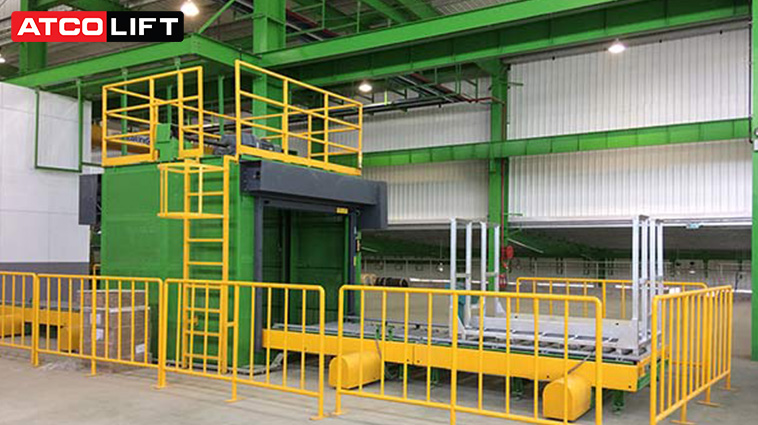

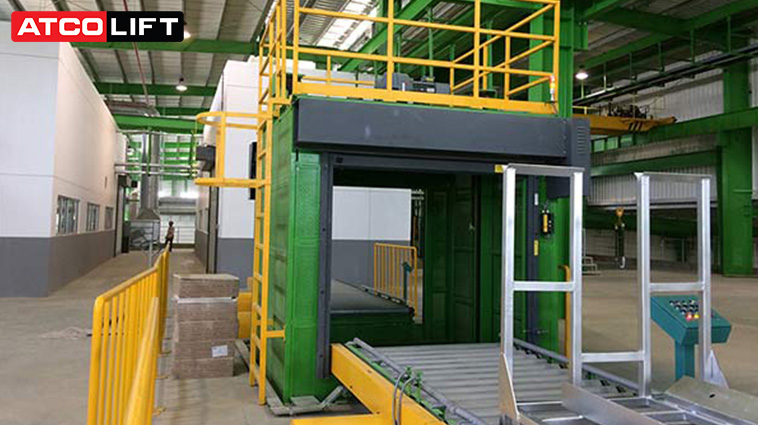

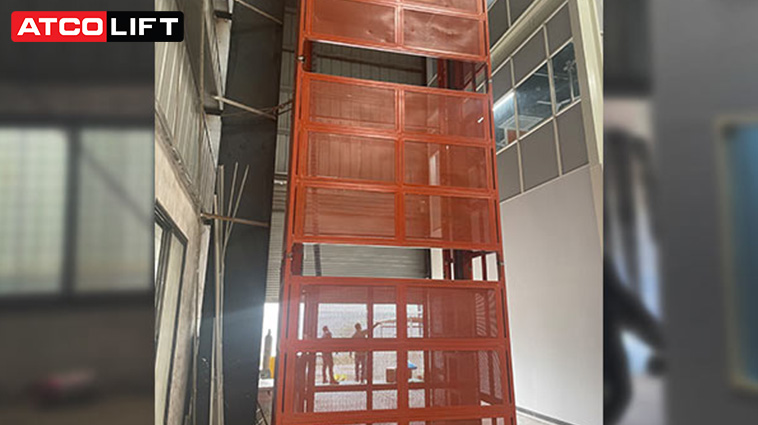

Vertical Reciprocating Conveyor (VRC) is mainly used to move materials from one floor to another floor in factories, warehouses & multi tier mezzanines with great safety. It is the electro-mechanical lift which transports items in a reciprocating manner on horizontal conveyors.
- Capacity: 300 kg – 5000 kg
- Lift height: 3m – 16m
- Type: C type & Z type
- Speed: 6m / min (can be customized)
- All doors are interlock with electro-mechanical limit switches
- Top & bottom safety limit switch provided to prevent carriage from hammering to ground & top, in case of floor limit switch failure
- Overload protection. carriage will stop, if the payload is excess than define load
- Deck lock system provided in case of critical application
- Its standalone structure, it doesn’t required any external support
- It doesn’t require pit & machine room
- Can be made as per customer requirement. It’s 100% customizable
- Can be installed in Indoor, outdoor & shaft well
- Economic with all safety measures like anti free fall mechanism
