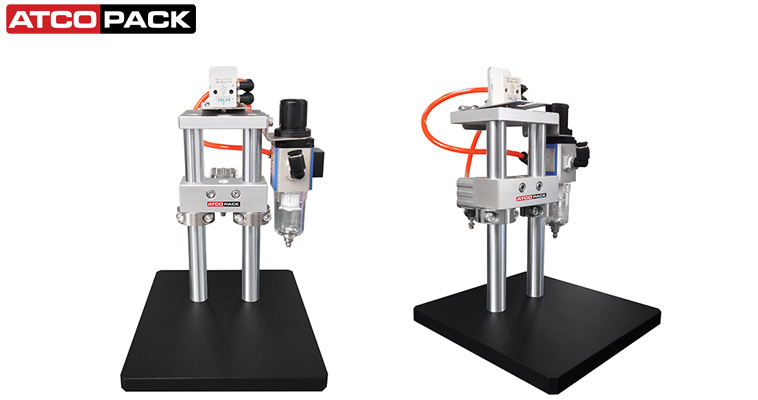

Semi Auto Pump-Pipe Cutting Machine
The Semi Auto Pump-Pipe Cutting Machine is used to cut perfume pump pipes to consistent lengths during bottle preparation stages. It is typically installed in perfume filling workshops, assembly areas, and packaging lines supporting fragrance production across the UAE and wider GCC region. The machine supports controlled pipe cutting between 30–140 mm and handles fine pipe diameters below 2 mm, ensuring repeatable results while reducing manual handling errors in high-volume operations.
In manufacturing environments across Dubai and Sharjah, the machine is commonly placed near pump assembly or pre-filling stations. Operators load the pipe, align the cutting length, and trigger the cutting cycle using regulated air pressure. With a cutting range of 30–140 mm and a compact footprint of approximately 200 × 180 × 268 mm, the unit fits easily into space-restricted production floors.
The system operates with air pressure between 4–5 kgf/cm² and does not require complex electrical integration. Its lightweight construction, around 5 kg, allows easy relocation within fragrance workshops or shared production zones. The controlled cutting action improves consistency, minimizes rejected pumps, and supports steady workflow alignment with filling and crimping stations.
Technical Specifications
| Product Code | AP-PCM |
| Pipe length cutting range | 30-140mm |
| Pipe diameter | ＜2mm |
| Air requirment | 4-5kgf/cm³ |
| Machine Dimension(L*W*H) | 200*180*268mm |
| Machine Weight | 5KGS |
Key Features
- Semi-automatic pneumatic cutting mechanism for controlled pipe trimming
- Supports pump pipe cutting lengths from 30 mm to 140 mm
- Designed for thin pump pipes with diameters below 2 mm
- Compact machine size suitable for bench-top or mobile use
- Air-operated system requiring 4–5 kgf/cm² pressure
- Lightweight construction for easy repositioning within production areas
- Consistent straight cuts to support uniform pump assembly
- Simple mechanical layout for routine cleaning and maintenance
Semi Auto Pump-Pipe Cutting Machine
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
The Semi Auto Pump-Pipe Cutting Machine is designed for thin spray pump tubes commonly used in perfume packaging. It handles pipe diameters below 2 mm and supports cutting lengths between 30 and 140 mm. This makes it suitable for standard perfume pumps used across filling and assembly lines in Dubai and Sharjah.
In UAE perfume facilities, the machine is usually placed near pump assembly or pre-filling stations. Operators cut pump pipes before they are fitted onto bottles, allowing smoother downstream operations such as filling, crimping, and collaring. Its compact size allows easy integration without changing existing line layouts.
The machine operates using compressed air within a pressure range of 4–5 kgf/cm². This level is commonly available in fragrance manufacturing units across the UAE. Stable air supply ensures clean, straight cuts and consistent repeatability during extended production shifts.
The semi-automatic mechanism requires deliberate operator activation for each cutting cycle, reducing the risk of accidental operation. Controlled pneumatic motion and fixed cutting positions help maintain safe handling, especially in shared work areas common in multi-product perfume workshops.
When set correctly, the machine delivers uniform pipe lengths across batches, reducing fitment issues during pump insertion. This consistency is particularly valuable in UAE facilities handling export-grade perfume products, where dimensional accuracy affects both assembly efficiency and final presentation.
Maintenance typically includes periodic cleaning of the cutting area, checking pneumatic connections, and inspecting moving parts for wear. Due to its simple mechanical layout, maintenance tasks can be performed quickly by in-house technicians without specialized tools.
