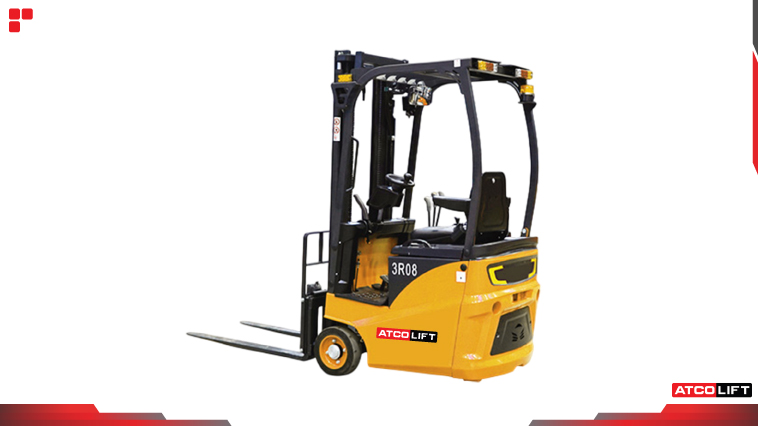

3 Wheel Compact Electric Forklift
The 3 Wheel Compact Electric Forklift is a light-duty electric truck designed for precise material handling in confined indoor spaces. It is commonly used in warehouses, retail backrooms, and distribution centers across Dubai and Sharjah where aisle width is limited. The three-wheel layout supports tight turning and controlled maneuvering. Typical configurations handle 800 to 1,600 kg at a 500 mm load center, with aisle width requirements starting from approximately 2,760 mm, making it suitable for high-density UAE warehouse layouts.
In UAE facilities, this forklift is frequently deployed in enclosed warehouses, retail distribution centers, and spare-parts stores where turning space is limited. Load handling ranges from 800 kg to 1.6 tons, covering most light palletized goods. Standard lift heights extend up to 6,000 mm, supporting vertical storage in narrow aisle racking systems. The reduced chassis size and short turning radius allow operators to work efficiently without reconfiguring aisle layouts.
The electric drive ensures quiet, emission-free operation, aligning with indoor safety requirements in Dubai and Abu Dhabi logistics zones. Solid rubber or polyurethane tires support smooth travel on finished concrete floors. As part of structured workflows, the forklift integrates well with pallet racking, order picking zones, and dock staging areas across UAE and wider MEA warehouse operations.
Technical Specifications
| Product Code | FE3R08N | FE3R10N | FE3R12N | FE3R16N |
| Electric | ||||
| Seated | ||||
| Load capacity / rated load (kg) | 800 | 1000 | 1200 | 1600 |
| Load centre (mm) | 500 | |||
| Load distance (mm) | 265 | 265 | 265 | 340 |
| Aisle width for pallets 1000x1200 crossways(mm) |
2760 | 2920 | 2920 | 3222 |
| Aisle width for pallets 800x1200 lengthways(mm) |
2878 | 3038 | 3068 | 3312 |
| Lowered mast height (mm) | 1965 | 1997 | ||
| Free lift (mm) | 95 | 105 | ||
| Lift height (mm) | 6000 | |||
| Tires Type | solied rubber/polyurethane | solied rubber | ||
Key Features
- Three-wheel configuration for tight turning and maneuverability
- Rated load capacities from 800 kg to 1,600 kg
- Standard 500 mm load center
- Lift height options up to approximately 6,000 mm
- Compact aisle width requirement starting around 2,760 mm
- Seated operator configuration for controlled handling
- Electric drive for indoor, emission-free operation
- Solid rubber or polyurethane tire options
3 Wheel Compact Electric Forklift
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
In UAE warehouses, especially in Dubai and Sharjah, space utilization is critical. A 3 Wheel Compact Electric Forklift allows tighter turning within narrow aisles, making it suitable for high-density racking. It supports efficient pallet movement without widening aisles, which is important in facilities with fixed layouts and high rental costs.
This forklift is commonly used for light to medium palletized goods such as cartons, packaged products, and spare parts. With capacities ranging from 800 kg to 1.6 tons, it fits daily handling requirements in retail distribution centers and light industrial warehouses across the UAE.
The three-wheel configuration improves maneuverability while maintaining sufficient stability for indoor handling. It is most effective on level concrete floors, where controlled steering and proper load centering allow safe lifting and travel within standard UAE warehouse conditions.
Yes. Electric operation enables low-noise, emission-free use, which is ideal for enclosed facilities in Abu Dhabi and Dubai. With proper battery management and routine checks, it supports consistent shift-based operation in indoor environments.
Routine maintenance includes battery inspection, brake testing, mast lubrication, and checking tire condition. In UAE conditions, keeping electrical components clean and monitoring battery charging cycles helps maintain reliable performance during extended daily use.
