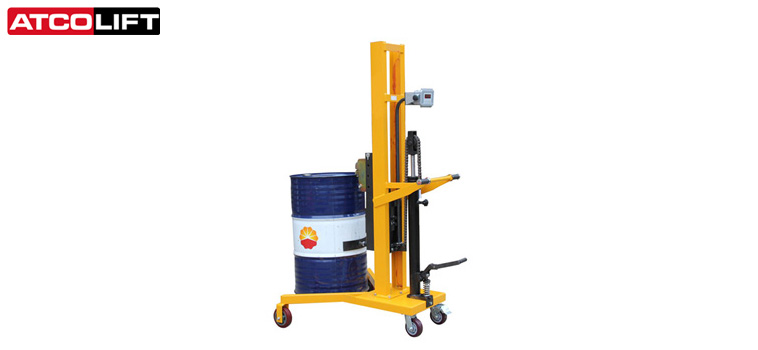

Hydraulic Drum Stackers
Hydraulic Drum Stackers are manual hydraulic lifting units designed for controlled drum elevation, stacking, and tilting inside warehouses and industrial facilities. They are widely used for handling 450 kg steel or plastic drums in storage zones, production areas, and dispatch sections. With lifting heights ranging from 1100 mm to 1500 mm and 180° rotation options, these units support safe vertical drum positioning. Suitable for operations across the UAE and wider GCC and Middle East industrial environments.
Technical Specifications
| Product Code | ALDTF450C-1 | |
| Loading weight | kg | 450 |
| Net weight | kg | 135 |
| Wheel Dimension | mm | Ø150*50 / Ø125*50 |
| Inner/Outer Width of Front Leg | mm | 920 / 1140 |
| Outline Dimension | mm | 1140*950*1370 |
| Lifting Height | mm | 1100 |

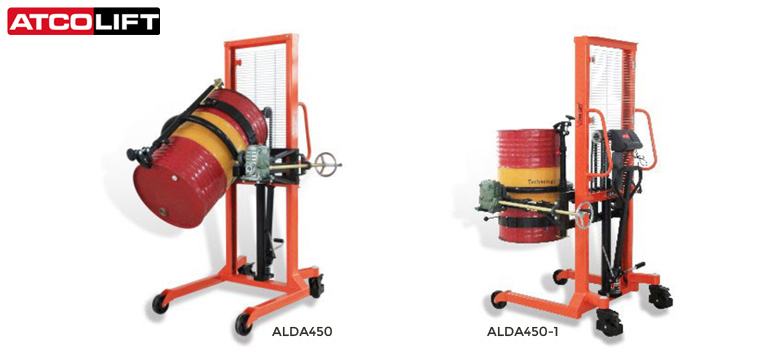

ALDA450-1: ALDA450 Hydraulic Drum Stacker with Scale
| Product Code | ALDA450 | ALDA450-1 | |
| Show Price | |||
| Load capacity | kg | 450 | |
| Net weight | Kg | 176 | 191 |
| Lifting height | mm | 1500 | 1430 |
| Pouring height | mm | 1580 | 1500 |
| Caster dimension | mm | Ø150*50 | |
| Inner/Outer width of front support legs | mm | 650/810 | |
| Max. Grade ability (Fully-loaded/no-load) | % | 3/5 | - |
| Overall size | mm | 1400*1000*2100 | 1400*1000*2030 |
Key Features
- 450 kg drum lifting capacity
- Hydraulic pump-operated vertical lifting system
- Available 180° drum rotation for controlled pouring
- Optional weighing scale configuration
- V-shaped or adjustable front support legs
- Heavy-duty steel mast construction
- Stable caster wheels for indoor floor operation
- Manual control for precise lift and lowering speed
- Compact chassis suitable for warehouse aisles
OR
Hydraulic Drum Stackers
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
Hydraulic drum stackers are commonly used in lubricant storage areas, chemical warehouses, and food processing units across the UAE. In Dubai and Abu Dhabi, operators rely on them for lifting 450 kg drums onto pallets, positioning containers near filling lines, and performing controlled discharge tasks indoors.
Models with lifting heights between 1100 mm and 1500 mm allow drums to be placed onto pallets or low racks without additional equipment. This simplifies material movement and supports safer stacking in indoor storage layouts typical across UAE industrial sites.
Yes, for moderate daily handling cycles, the hydraulic pump mechanism provides steady elevation and lowering. Many UAE warehouses handling oils or chemicals use these units for repetitive but controlled drum transfers where electric drive is not required.
Operators should confirm the drum clamp or support bracket is fully engaged and ensure the load does not exceed 450 kg. Floor conditions must be even and dry. Routine visual inspection of hydraulic seals and caster alignment helps maintain safe operation.
Selected models allow up to 180° rotation for controlled pouring. This is useful in UAE production environments where drums are emptied into mixing tanks or batching systems, reducing the need for manual tilting or additional transfer devices.
