Drum Grab
The Drum Grabber is a forklift-mounted attachment designed for secure horizontal lifting and transport of industrial drums inside warehouses and production facilities. It is widely used in logistics hubs and storage operations across the UAE and the wider GCC region. With single-drum capacities of 360 kg and dual-drum handling up to 720 kg, it supports efficient drum relocation while maintaining stable grip engagement. The adjustable eagle-grip mechanism ensures reliable holding during internal material movement.
In industrial environments across Dubai and Abu Dhabi, drum grabbers are commonly integrated with forklifts in lubricant warehouses, chemical storage areas, and manufacturing plants. Single-drum models such as ALDG360A handle up to 360 kg per drum, while ALDG720A variants manage two drums simultaneously, reaching a combined capacity of 720 kg. Adjustable grip heights between 525 mm and 750 mm accommodate varying drum dimensions.
The fork sleeve size of approximately 150 x 55 mm allows compatibility with standard forklift tines. With compact dimensions around 910 x 910 x 850 mm in dual models, the unit supports maneuverability within defined storage lanes. Drum Grabber attachments enhance drum relocation efficiency while maintaining mechanical simplicity in UAE warehouse workflows.
Technical Specifications

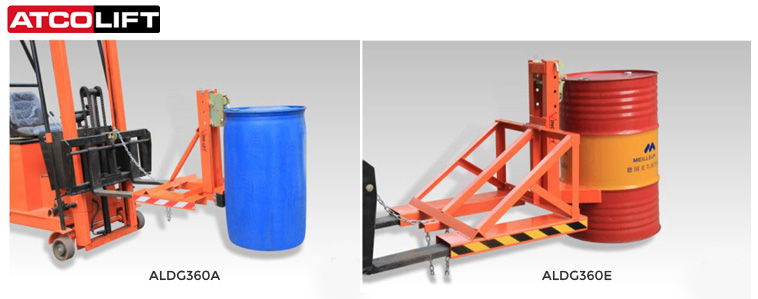

ALDG360E: 360kg X 1 Load Capacity Drum, for Thin-Rimmed and Deformed Drums
| Product Code | ALDG360A | ALDG360E | |
| Show Price | |||
| Load capacity | kg | 360*1 | |
| Net Weight | kg | 41 | 50 |

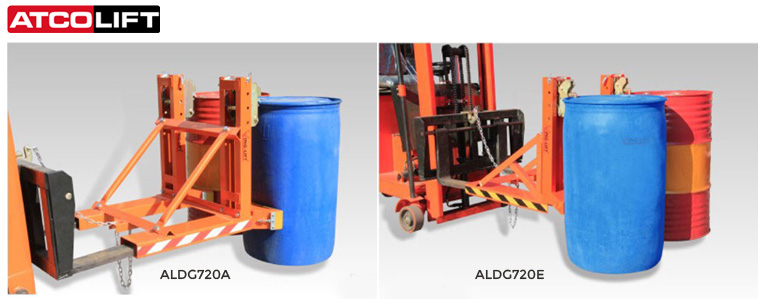

ALDG720E: 360kg X 2 Loading Weight Drums (For Thin-Rimmed and Deformed Drums), Eagle Grip Forklift Attachment
| Product Code | ALDG720A | ALDG720E | |
| Show Price | |||
| Loading Weight | kg | 360*2 | 360*2 |
| Net Weight | kg | 63 | 65 |
| Outline Dimension | mm | 910*910*850 | |
| Eagle-gripper Adjustable Height | mm | 525-750 | |
| Single Fork Sleeve Size | mm | 150*55 | |
| Outer Width of Double- Fork Sleeve | mm | 750 | |
| Fork Sleeve Length | mm | 755 |
Key Features
- Single drum capacity 360 kg
- Dual drum handling up to 720 kg
- Eagle-grip clamping mechanism for rim engagement
- Adjustable grip height range 525–750 mm
- Compatible with standard forklift forks
- Fork sleeve size 150 x 55 mm
- Designed for horizontal drum transport
- Available versions for thin-rimmed or deformed drums
- Compact attachment frame for aisle maneuvering
OR
Drum Grab
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
Drum grabbers are commonly used in lubricant depots, chemical warehouses, and distribution centers across the UAE. In Dubai and Abu Dhabi, they are mounted on forklifts to move 360 kg drums safely within racking aisles and loading zones, reducing manual drum handling.
Standard single-drum models are rated for 360 kg per drum, while dual configurations can lift two drums simultaneously, totaling 720 kg. Operators must verify forklift capacity to ensure the combined drum and attachment weight remains within safe lifting limits.
Specific variants are designed for thin-rimmed or slightly deformed drums. These models use modified grip geometry to secure the rim without excessive pressure, maintaining stable engagement during transport inside UAE warehouse environments.
Operators should confirm the eagle-grip mechanism is fully engaged under the drum rim and ensure the forklift forks are properly inserted into the sleeves. Regular inspection of grip components and fork sleeve alignment supports safe operation.
Yes, by enabling forklifts to lift one or two drums at once, drum grabbers reduce transfer cycles and streamline internal movement. This is particularly useful in high-volume warehouse operations across the GCC and Middle East region.
