Viperhoist
The TAWI Viperhoist is a high-speed electric lifting hoist designed for precise and controlled handling in industrial environments. It is commonly used in UAE warehouses, manufacturing plants, and assembly areas where fast lifting and accurate positioning are required. The hoist supports load capacities up to 120 kg and provides a lifting height of 2000 mm, making it suitable for repetitive handling tasks across defined workstations in GCC and Middle East operations.
In industrial facilities across Dubai and Sharjah, the hoist integrates into overhead rail systems or fixed lifting points, supporting efficient material flow without occupying floor space. The Viperhoist is available in two configurations, handling loads up to 60 kg or 120 kg, with lifting speeds reaching 0.75 m/s for lighter loads and 0.35 m/s for heavier ones. A standard lifting height of 2000 mm supports most workstation and assembly requirements.
Variable speed control allows operators to shift between fast travel and precise positioning. Quick-change couplings enable the use of hooks, vacuum tools, clamps, or custom attachments. The lightweight control housing and reliable drive system make the hoist suitable for continuous daily use in UAE industrial environments focused on efficiency and operator safety.
Control Options
Our ergonomically designed handles are available in different designs made to provide comfort, ease, and smooth movement while operating. Available options are one-handed pistol grip (Standard), Joystick Control Dual & Adjustable joystick control. All to suit your specific needs and requirements.
Variable Speed Control
Choose at any point how fast or slow you need to move. Ideal for applications that require high speed at some points and slow, precise movements at other points. The Viper is one of the worlds fastest hoist with a lifting speed of 0.75 m/s for max 60 kg and 0.35 m/s for max 120 kg.

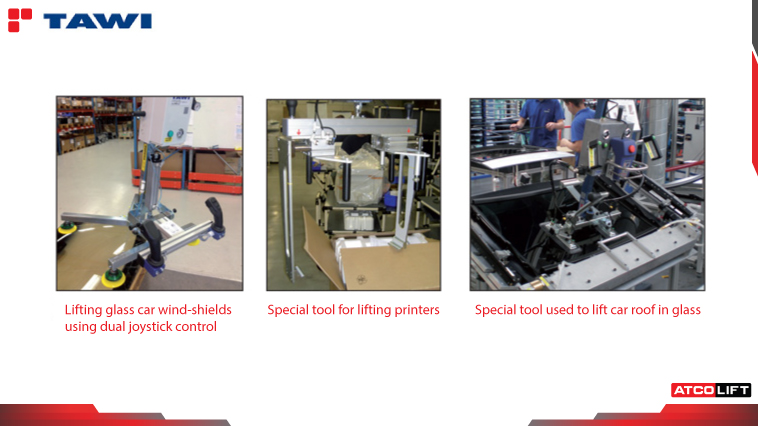

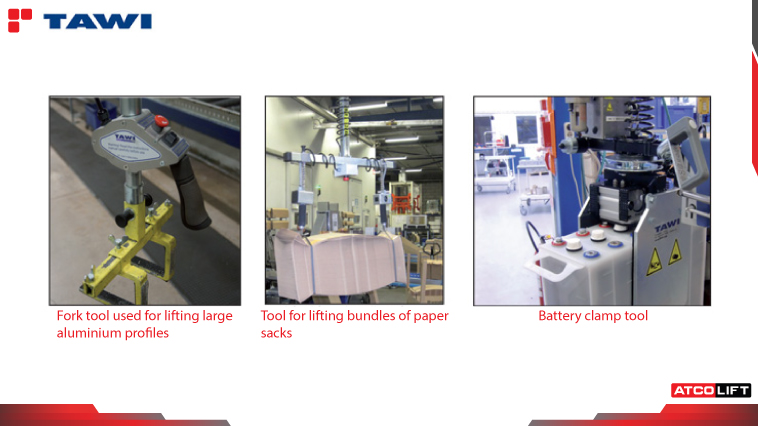

Customized Tooling
The Viper was designed with the customer in mind, with our customizable tooling options operators are able to handle a variety of applications. Combined with a fast coupling, several tools can quickly be changed and used on the same hoist.
Safe, Simple, Lightweight
- Minimize manual lifting that can put strain on the body and lift easy, safe and ergonomically by using the Viper.
- Light-weight control housing allow for swift movement.
- Reduce operator injury with capacities up to 120 kg.
Technical Specifications
| Product Code | VH60 | VH120 |
| Lifting capacity | 60 kg | 120 kg |
| Power supply | 230V +/- 10% | 230V +/- 10% |
| Frequency | 47-63 Hz | 47-63 Hz |
| Lifting height | 2000 mm | 2000 mm |
| Lifting speed | 0.75 m/s | 0.35 m/s |
| Dead weight | 22 kg | 22 kg |
| Speed control | Variable | Variable |
Key Features
- Available load capacities up to 60 kg and 120 kg
- Standard lifting height of 2000 mm
- High lifting speeds up to 0.75 m/s depending on load
- Variable speed control for fast and precise handling
- Compatible with hooks, vacuum tools, clamps, and custom tooling
- Quick-coupling system for fast tool changes
- Lightweight control unit with ergonomic handle options
- Designed for overhead and workstation lifting integration
Viperhoist
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
In the UAE, the Viperhoist is typically used in assembly lines, packaging stations, and component handling areas where fast vertical lifting is required. Facilities in Dubai and Abu Dhabi often apply it for repetitive lifting of cartons, tools, or sub-assemblies within defined workstation zones.
The Viperhoist offers high lifting speeds for lighter loads, which helps reduce cycle time during repetitive tasks. This is useful in UAE operations where throughput and takt time are closely monitored, especially in logistics and light manufacturing environments.
Yes, the hoist supports quick-change tooling, allowing operators to switch between hooks, vacuum tools, or clamps. This flexibility is useful in UAE facilities handling mixed products without dedicating separate lifting devices to each task.
Variable speed control allows operators to slow movements during precise positioning, reducing the risk of load swing. Overhead installation also keeps lifting activity away from floor traffic, aligning with safety practices common across GCC industrial sites.
Maintenance requirements are generally low and focus on routine inspection of the lifting mechanism, control handle, and mounting points. These checks fit easily into preventive maintenance programs followed in UAE industrial facilities.
The Viperhoist is designed to integrate with overhead rails or fixed mounting points. This makes it suitable for retrofitting into existing warehouse or factory layouts without major structural changes.
