Rough Terrain Truck

1/1

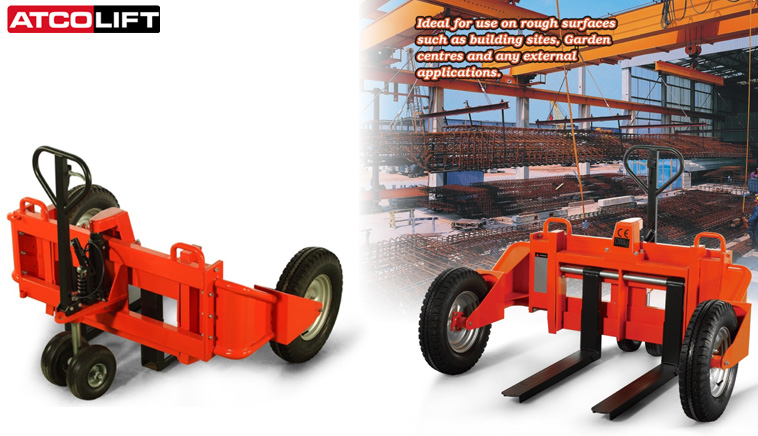

ATCOLIFT rugged and versatile Rough Terrain Truck, engineered to conquer demanding outdoor environments with ease. With a robust capacity of 1200kg, this truck is specifically designed for heavy-duty applications on uneven surfaces.

Equipped with adjustable forks, our Rough Terrain Truck ensures precise handling of various load sizes, providing optimal versatility for your material handling needs. Its pneumatic tires are specially designed to tackle undulating terrains, offering exceptional traction and stability for reliable performance in challenging outdoor conditions.

Built with a powder-coated heavy-duty steel frame, our Rough Terrain Truck is built to withstand the toughest environments. Its adjustable 860mm long forks provide flexibility, while the minimum fork height of 52mm enables effortless loading and unloading operations.

Ideal for open and closed pallets
Hand release trigger, easy to manoeuvre with 210 degrees turning radius
Low maintenance pump unit
Hand release trigger to control the rate of descent

Product Code	ALRTT 12
Capacity(kg)	1200
Fork Length(mm)	860
Fork width(mm)	228-735
Adjustable Fork Width(mm)	228-735
Max. Fork Height H (Max)(mm)	233
Min.Fork Heitht H(Min)(mm)	63
Max.Pump Stroke(mm)	170
Overall Size LxWxH(mm)	1375 x 1605 x 1200
Front Wheel Dia.x Width(mm)	550x132
Rear Wheel Dia.x Width(mm)	265 x80
Width inside the front wheel(mm)	1277
Load Centre C(mm)	450
Net Weight(kg)	225
