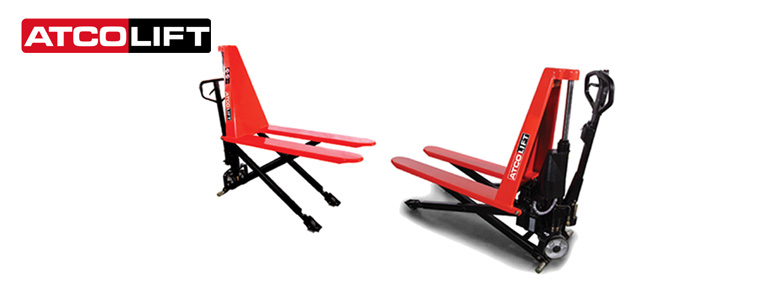

Scissor Lift Pallet Truck (Manual & Electric)
The Scissor Lift Pallet Truck is a dual-purpose handling unit designed for lifting, positioning, and short-distance transport of palletized goods. It is commonly used in warehouses, assembly areas, and distribution facilities where loads must be raised to an ergonomic working height. Supporting loads up to 1000 kg with a lifting range reaching 800 mm, this equipment reduces manual strain while maintaining stable pallet control. It is widely deployed across the UAE, GCC, and broader Middle East industrial operations.
In UAE facilities across Dubai and Abu Dhabi, the truck is frequently used where space efficiency and safe manual handling are critical. The scissor mechanism provides controlled vertical lift, while closed fork tips and a reinforced chassis maintain structural stability during elevation. With a rated capacity of 1000 kg, fork length of 1170 mm, and minimum fork height of 85 mm, the truck accommodates standard pallets with consistent balance.
Manual models are suited for low-cycle lifting tasks, while electric variants reduce operator effort during repetitive elevation. The compact footprint allows integration into existing workflows without aisle modifications, making it suitable for warehouses, spare parts stores, and production support zones.
Technical Specifications
| Product Code | MHA01004 | MHA01004-E |
| Capacity (kg) | 1000 | |
| Fork Length (mm) | 1170 | |
| Width Over Forks (mm) | 540/680 | |
| Total Lift Height (mm) | 800 | |
| Min. Fork Height (mm) | 85 | |
| Battery (V/Ah) | - | 12.60 |
| Lifting Motor (kW) | - | 0.8 |
Key Features
- Available in manual and electric lifting configurations
- Scissor lift mechanism with maximum lift height up to 800 mm
- Rated load capacity of 1000 kg for stable pallet handling
- Closed fork tips to improve safety during elevation
- Reinforced steel chassis for repeated lifting cycles
- Quick lift function on manual model for faster elevation
- Electric version with built-in or external charging option
- Ergonomic handle design for controlled maneuvering
Scissor Lift Pallet Truck (Manual & Electric)
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Frequently Asked Questions
A scissor lift pallet truck is chosen when pallets must be raised to a working height for packing, inspection, or assembly. In UAE warehouses, especially in Dubai and Abu Dhabi, it reduces bending and repetitive strain by allowing loads to be lifted up to 800 mm while still functioning as a transport unit.
The electric version is suitable for repetitive lifting cycles where pallets are raised frequently during a shift. In high-throughput logistics facilities, it reduces operator fatigue compared to manual pumping, while still maintaining controlled lift speed and stable load positioning within standard warehouse layouts.
The truck is rated for loads up to 1000 kg and supports standard pallet formats using a fork length of 1170 mm. Fork widths of 540 or 680 mm allow compatibility with commonly used pallets in UAE distribution centers and light manufacturing environments.
The scissor structure lifts the pallet vertically while maintaining a low center of gravity. Closed fork tips and a reinforced chassis help prevent forward load shift, which is important when goods are handled at elevated heights near workstations or packing benches.
In GCC operating conditions, routine checks include hydraulic oil inspection, scissor pivot lubrication, and wheel condition monitoring. Electric models also require battery health checks and charger inspection to ensure reliable operation in warehouse temperatures common across the UAE.
