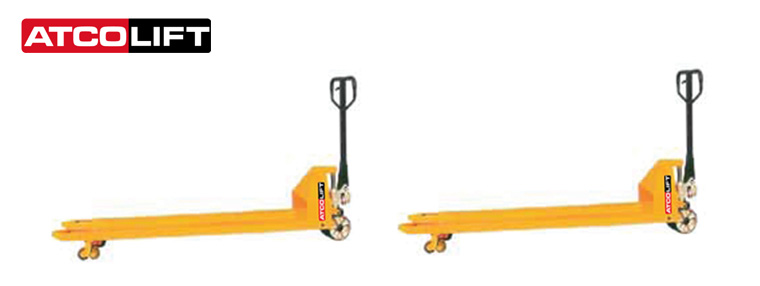

Low Profile / Super Long Pallet Trucks

The Low Profile / Super Long Pallet Trucks are manual handling units engineered for pallets with reduced ground clearance or extended load length. Commonly used across warehouses, factories, and logistics facilities in the UAE and wider GCC, this Low Profile Pallet Truck supports handling capacities from 1000 kg to 3500 kg. With minimum fork heights starting from 35–51 mm and long fork configurations, it enables controlled pallet entry and stable transport where standard pallet trucks cannot operate effectively.

Product Details Technical Specifications Key Features FAQs


Low Profile / Super Long Pallet Trucks are designed to handle pallets and skids that fall outside standard height or length specifications. The low-entry fork geometry allows access under pallets with minimal clearance, while extended fork options maintain balance across long or oversized loads. This combination reduces load shift and improves operator control during movement. In Dubai and Sharjah warehouses, these pallet trucks are often used for handling sheet materials, fabricated parts, and long packaging units. Available capacities range from 1000 kg to 3500 kg, supporting both light distribution loads and heavier industrial items. Fork lengths can be configured from 1150 mm up to 3000 mm, with multiple fork width options to suit different pallet formats. Facilities in Abu Dhabi benefit from the controlled lift range of 90 to 200 mm, which provides sufficient travel clearance without excessive elevation. The robust chassis and predictable hydraulic response allow smooth integration into receiving, storage, and dispatch workflows, especially where forklifts are impractical for short horizontal movement.

Technical Specifications

Product Code AC LOW 51 AC SUPER LOW ACL20 ACL35
Capacity (kg) 1500 1000 2000 3500
Fork Length (mm) 1150/1220 1120 1500/1800/2000 1500/1800/2000/2500
Width Over Forks (mm) 540/685/838 530/685 540/685
Total Lift Height (mm) 165 90 190/200 200
Min. Fork Height (mm) 51 35 75/85 85

Key Features

  • Low profile fork design for pallets with minimal ground clearance
  • Super long fork options for extended and oversized loads
  • Handling capacity range from 1000 kg to 3500 kg
  • Minimum fork height starting from 35–51 mm depending on model
  • Fork length options available up to 3000 mm on request
  • Multiple fork width configurations for varied pallet sizes
  • Manual hydraulic lifting with controlled elevation range
  • Designed for indoor warehouse and logistics operations
Low Profile / Super Long Pallet Trucks
Brochure | Quotation | Availability

Fill the form with valid details to receive the information.

7 + 4 =
Mobile: +971 58 105 3859



WhatsApp: +971 50 793 1851

Frequently Asked Questions

A low profile pallet truck is used when pallets or skids have very limited ground clearance. In UAE warehouses, especially in Dubai and Sharjah, it is common for custom pallets or machinery bases to sit too low for standard forks to enter safely.

Super long pallet trucks are used for elongated items such as fabricated panels, long cartons, or bundled materials. UAE facilities handling construction supplies or industrial components often rely on extended fork lengths to maintain load balance during movement.

Lower fork height allows operators to access pallets without lifting or tilting loads manually. In Abu Dhabi distribution centers, this reduces handling time and minimizes the risk of pallet damage during entry and exit.

Yes. In shared UAE warehouses where forklifts and manual equipment operate together, low profile and super long pallet trucks are used for controlled horizontal movement where powered trucks are impractical or unnecessary.

Operators should regularly inspect fork alignment, hydraulic response, and wheel condition. UAE operators typically include these checks in routine warehouse inspections to ensure stable handling of long or heavy loads.
