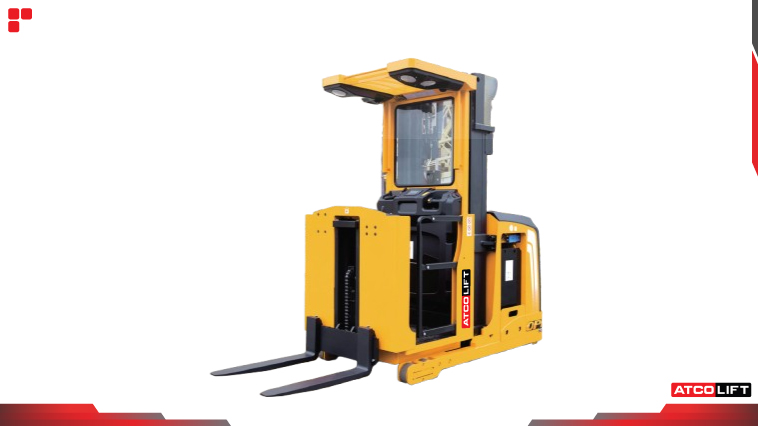

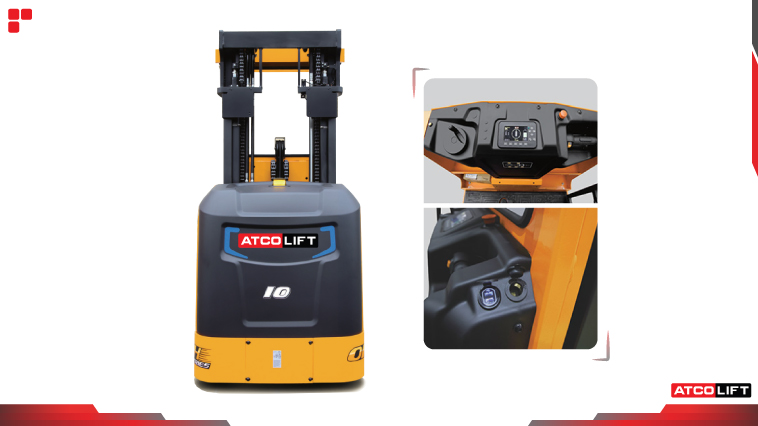

High-Level Order Picker
The High-Level Order Picker is an electrically driven material handling machine designed for vertical picking operations in high-density storage environments. It is commonly used in warehouses, logistics centers, and distribution facilities across the UAE and wider GCC region. The machine supports accurate order fulfillment by allowing operators to access elevated rack levels safely. With a rated load capacity of up to 1200 kg and working heights extending beyond 9 meters, it is suited for narrow-aisle layouts and multi-level storage systems used in modern MEA warehouses.
In warehouse environments across Dubai, Abu Dhabi, and Sharjah, the machine integrates smoothly with selective racking and narrow aisle systems. A compact wheelbase of approximately 1576 mm supports controlled maneuvering, while polyurethane tyres maintain stable travel on polished industrial floors. The unit operates with rated capacities of 1000–1200 kg at a standard 400 mm load center, maintaining balance during lift and travel.
Lift heights reaching up to 9.2 meters allow effective use of vertical storage without expanding warehouse footprints. Controlled mast movement and a tight turning radius near 1830 mm support predictable operation during peak picking cycles. The equipment is designed for consistent performance under extended shift operation common in UAE logistics hubs and regional distribution centers.
Technical Specifications
| OPH10E | OPH12EK | |
| Drive | electric | |
| Operator type | order picker | |
| Rated capacity (Q) | 1000 | 1200 |
| Load centre (c) | 400 | |
| Load distance (x) | 386 | |
| Wheelbase (y) | 1576 | |
| Tyres | polyurethane | |
| Height, mast lowered (h1) | 2315 | 2315 |
| Free Lift (h2) | 40 | 40 |
| Lift height (h3) | 4500 | 4500 |
| Height, mast extended (h4) | 6775 | 9275 |
| Overall width (b1/b2) | 1080/1080 | 1080/1420 |
| Fork dimensions (standard) | 40x122x800 | |
| Turning radius (Wa) | 1830 | |
Key Features
- Electric drive system suitable for indoor warehouse operation
- Operator platform elevates with load for direct picking access
- Rated load handling up to 1200 kg at defined load centers
- Maximum lift height configuration exceeding 9 meters
- Compact wheelbase supporting narrow aisle navigation
- Polyurethane tyre specification for smooth floor travel
- Controlled mast extension with stable vertical movement
- Ergonomic operator compartment for extended work cycles
High-Level Order Picker
Brochure | Quotation | Availability
Fill the form with valid details to receive the information.
Product Videos
Frequently Asked Questions
High-Level Order Pickers are commonly used in UAE fulfillment centers, spare parts warehouses, and retail distribution facilities where vertical storage is prioritized. In locations such as Dubai and Sharjah, they support multi-level racking systems, enabling operators to pick cartons directly at height without secondary handling equipment.
By lifting the operator together with the load, the machine allows direct visual and physical access to storage locations. This reduces picking errors caused by indirect handling. In structured warehouse workflows, this setup supports consistent SKU identification and controlled item removal at elevated rack levels.
The equipment is designed for narrow aisle configurations commonly used in UAE logistics buildings. Smooth concrete or epoxy-coated floors are recommended to ensure stable travel. Adequate aisle clearance must account for the truck width, load dimensions, and turning radius during lift and travel operations.
The machine works with standard selective and narrow aisle racking systems without structural modification. Fork dimensions and lift heights are selected to align with rack beam levels, allowing seamless integration into existing warehouse layouts used across GCC and Middle East distribution facilities.
Routine checks include mast lubrication, wheel condition inspection, brake response testing, and battery health monitoring. In high-shift operations common in Abu Dhabi logistics hubs, scheduled preventive maintenance helps maintain predictable lift performance and reduces downtime during peak picking periods.
